HP E24t G4 User Manual

18
Connector repair
This procedure includes VGA, HDMI, Display port, USB3.0, USB A connectors.
The connectors are on the main board (board part number 5E.4QW01.00*).
The connectors identifiers are as follows:
Connector
Location
VGA
J1
HDMI
J3
Display Port
J2
USB 3.0 Type B
J8
UAB A DUAL
J6
Before repairing connectors, follow these steps:
▲ Prepare the monitor for disassembly. See Preparation for disassembly on page 11
.

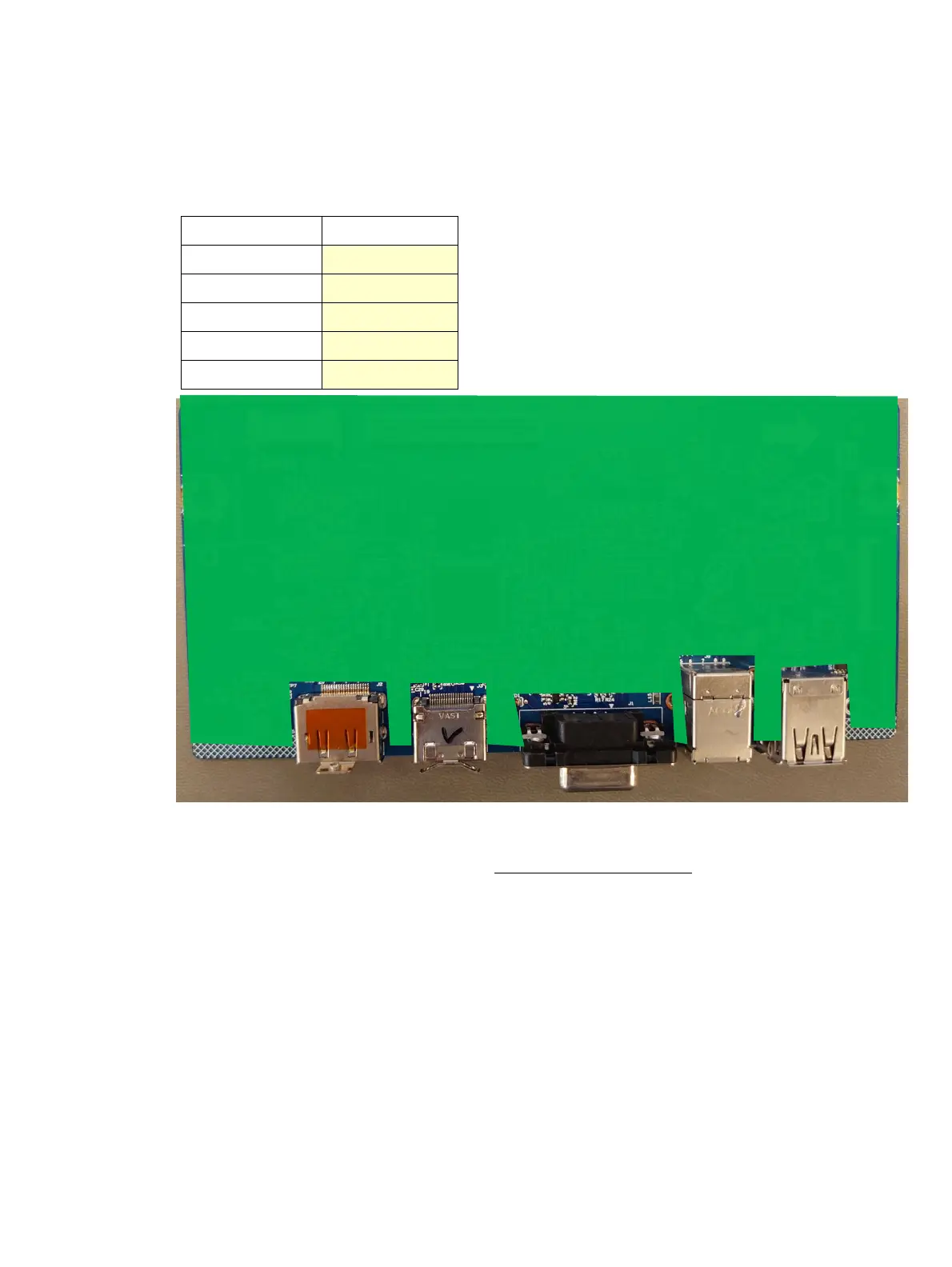

J3
J1
J8
J6
Main Board
J2
J3
J1
J8
J6
