Rear components

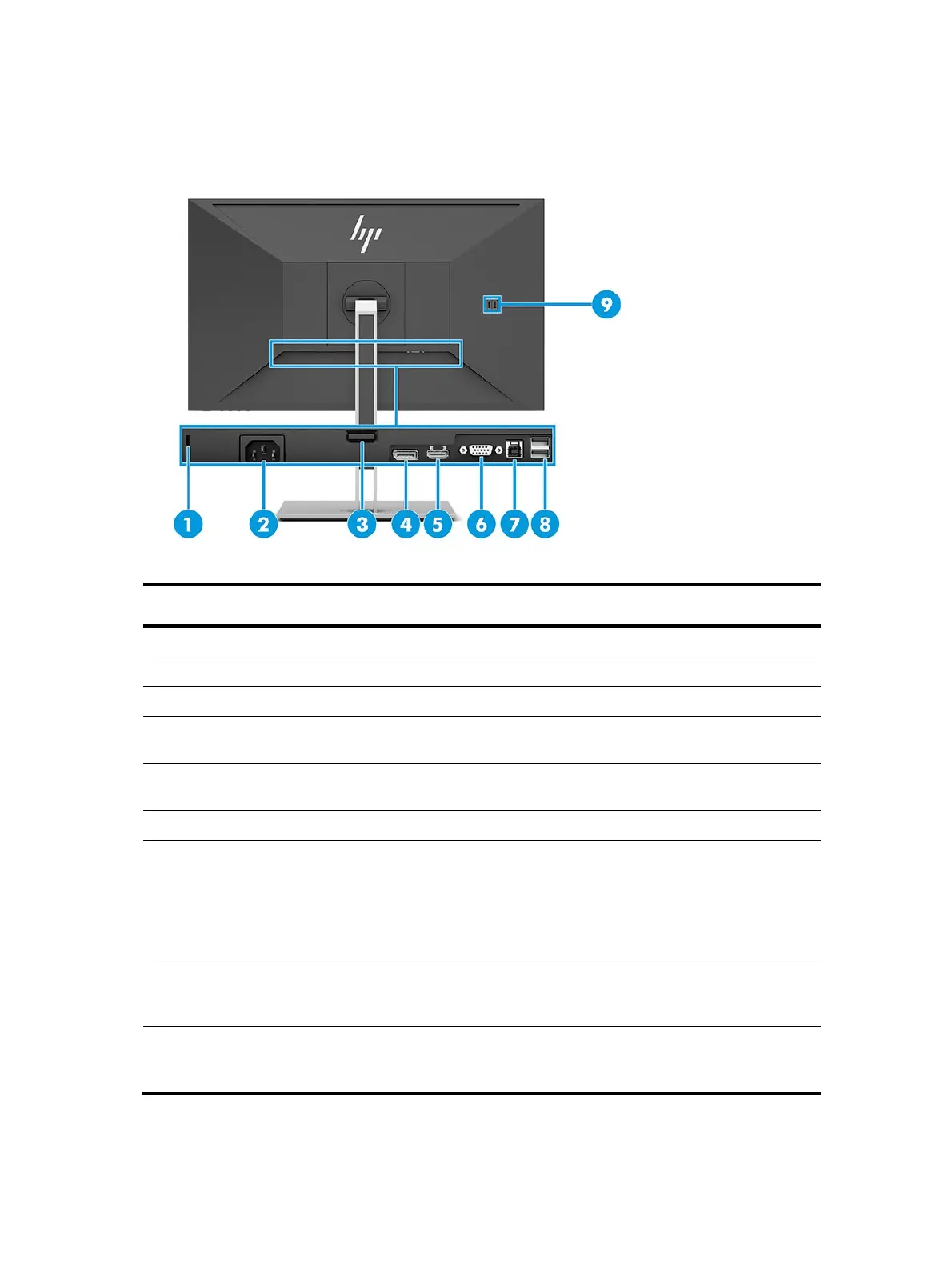

To identify the components on the rear of the monitor, use this illustration and table.
Table 1-2: Rear components and their descriptions
Function
(1) Security cable slot Connects an optional security cable.
(2) Power connector Connects the power cord.
(3) VESA release button Releases the stand from the monitor.
(4) DisplayPort connector
Connects the DisplayPort cable to a source
device such as a computer or game console.
(5) HDMI port Connects the HDMI cable to a source device
such as a computer or game console.
(6) VGA port Connects the VGA cable to the source device.
(7) USB Type-B port (upstream)
Connects the USB Type-B cable to a source
device such as a computer or game console.
NOTE: A USB Type-B cable or a USB Type-C
cable must be connected from the source
device to the monitor to enable USB Type-A
ports on the monitor.
(8) USB ports (2) (downstream)
Connect a USB cable to a peripheral device,
such as a keyboard, mouse, or USB hard
drive.
(9) USB ports (2) (downstream)
Connect a USB cable to a peripheral device,
such as a keyboard, mouse, or USB hard
drive, and charge peripheral devices.
