USB B 3.0 Connector repair- J8

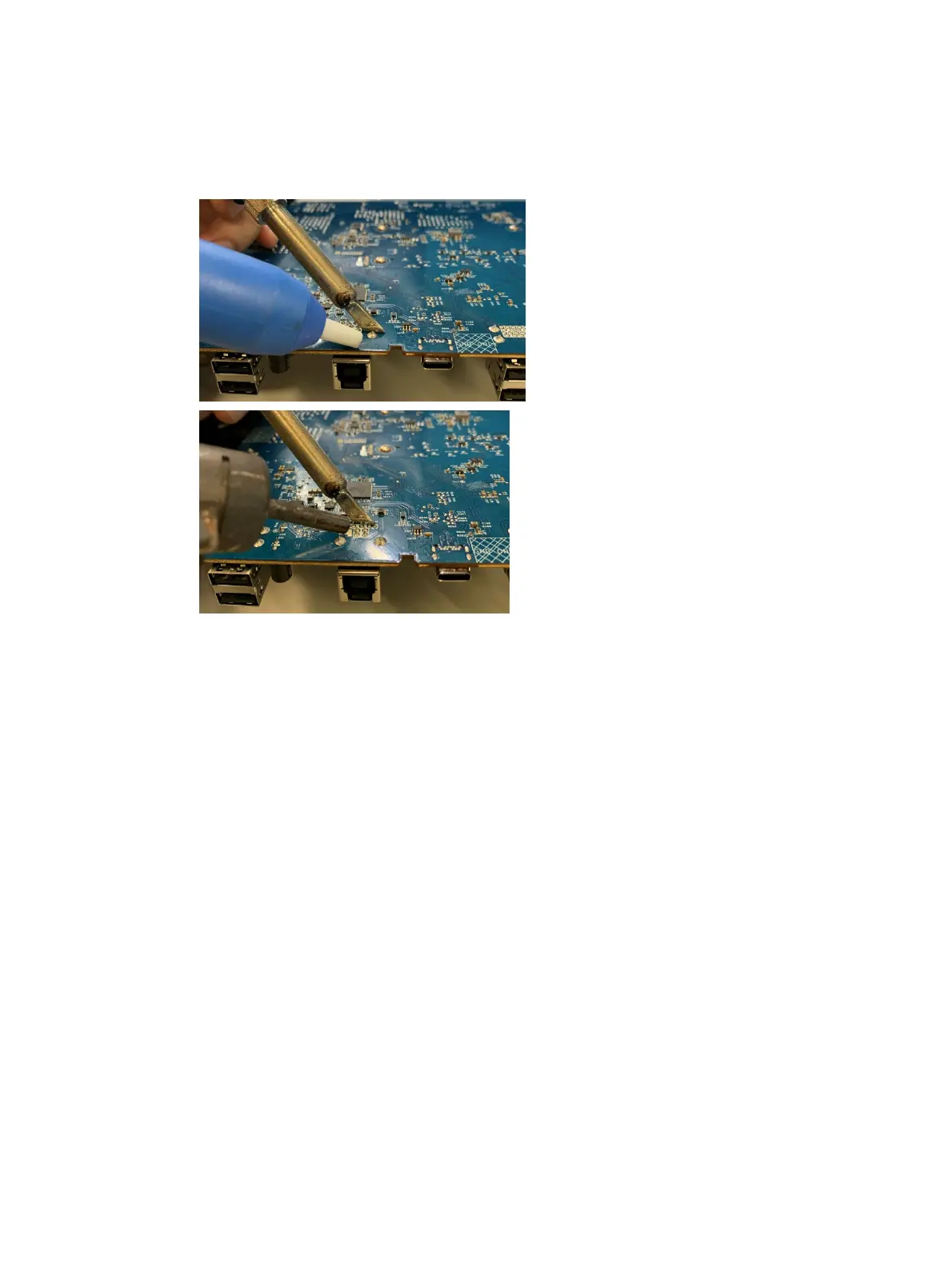

1) Use a hot air gun to melt the solder on the pins Pin solder with soldering iron and absorber.
You can gently push down with the soldering iron once everything is molten to move the connector
out of the through holes
2) Lift connector from the PCB
3) Place new component on the location, and must check it can match PCB footprint
4) Soldering the new component by solder iron
