HP E27 G5 - USB UP Connector CN105 Repair; USB1\2 Connectors CN104\CN106 Repair

21

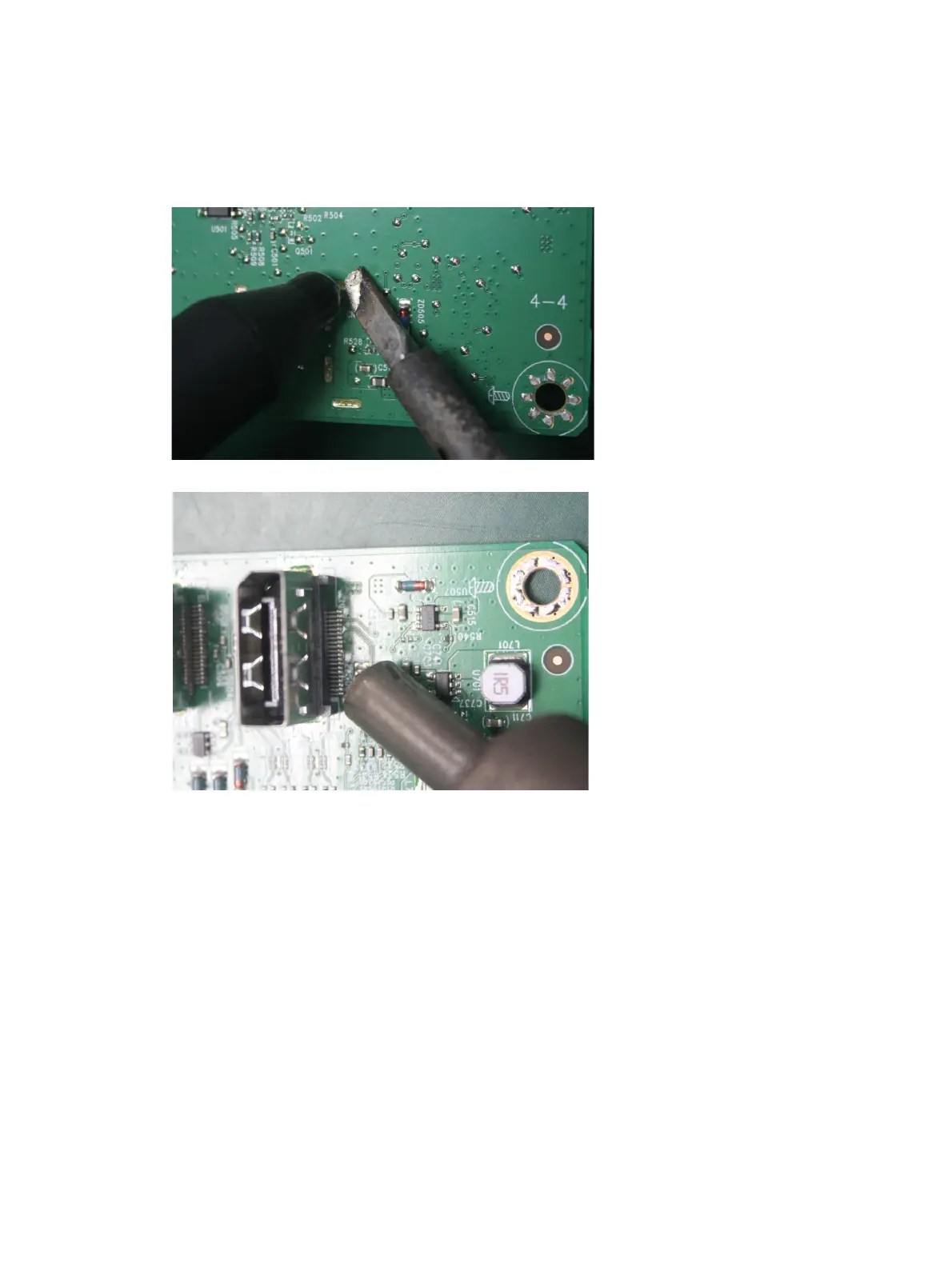

DP connector CN502
Repair the DP connector:
1) Use a soldering iron and a de-soldering pump to remove as much solder as possible from the pin.
2) Use a hot air gun to melt the solder on the pins.
3) Lift the DP connector from the circuit board.
4) Place the new component on the circuit board. Be sure that it matches the circuit board footprint.
5) Solder the new component.
