Rear components
Rear components

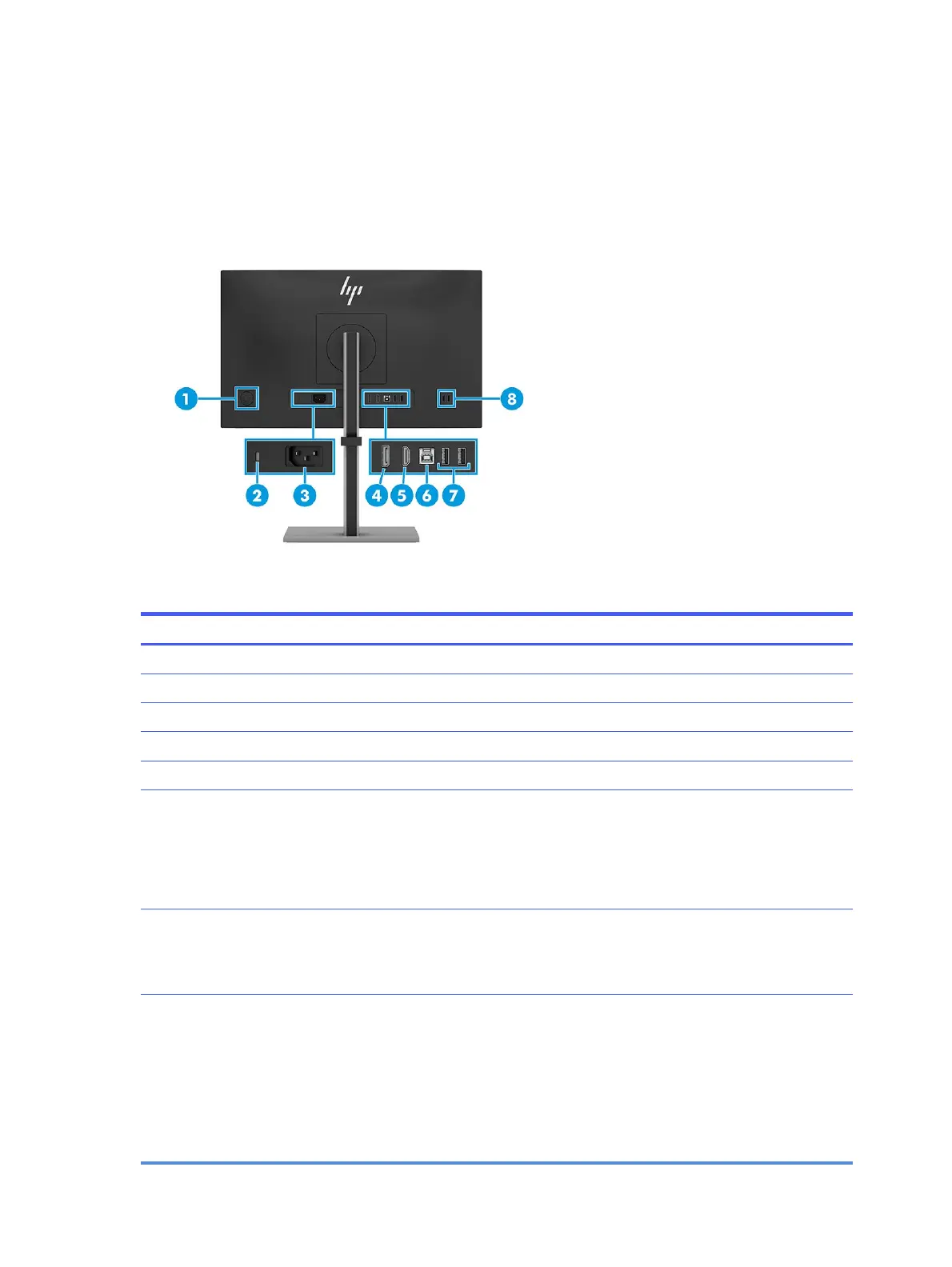

To identify the components on the rear of the monitor, use this illustration and table.
Table: Rear components and their descriptions
Component Description
(1)
Joypad
Press to open the OSD settings.
(2)
Security cable slot
Connects an optional security cable.
(3) Power connector Connects a power cord.
(4) DisplayPort connector Connects a DisplayPort cable to a source device such as a computer.
(5) HDMI port Connects the HDMI cable to a source device such as a computer.
(6)
USB Type-B port
Connects a USB Type-B to A cable.
NOTE: The USB hub is enabled only if the monitor is connected to the computer via a
USB Type-B to A cable.
NOTE: The touch screen function (select products only) is enabled only if the monitor is
connected to the computer via a USB Type-B to A cable.
(7)
USB Type-A ports (2)
Connects a USB device, provides data transfer, and (for select products) charges small
devices (such as a smartphone) when the computer is on or in Sleep mode.
NOTE: Use a standard USB Type-A charging cable or cable adapter (purchased
separately) when charging a small external device.
Type-A port with battery fast-
charging 1.2 (1)
USB port: Connects a USB device, provides data transfer, and (for select products) charges
small devices (such as a smartphone) when the computer is on or in Sleep mode.
USB port with battery fast-charging 1.2 (5 V × 1.5 A = 7.5 W): Connects a USB device,
provides high-speed data transfer, and charges small devices (such as a smartphone), even
when the monitor is DC off with OSD performance mode on.
NOTE: Use a standard USB Type-A charging cable or cable adapter (purchased
separately) when charging a small external device.
