Rear Panel Components

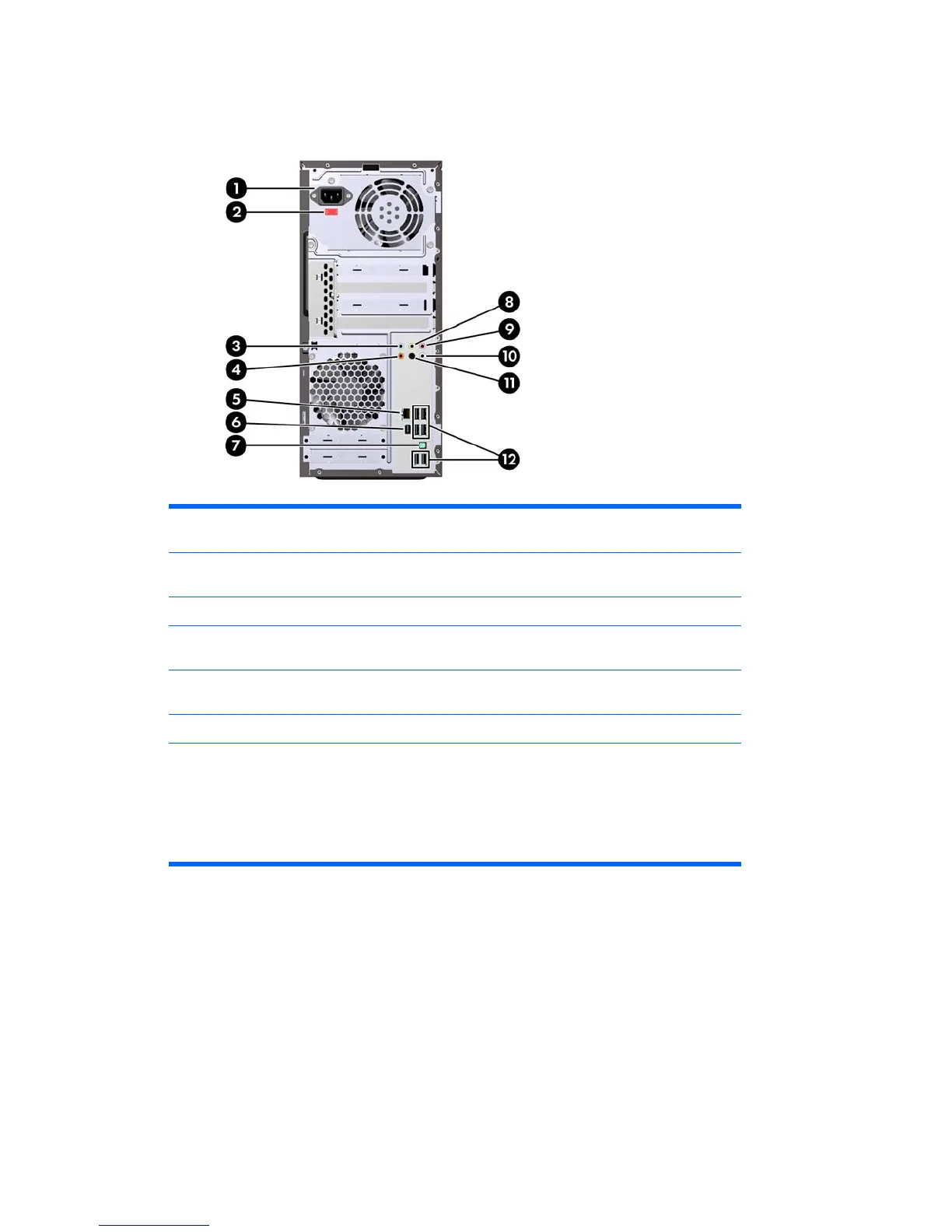

Figure 2-4 Rear Panel Components
Table 2-3 Rear Panel Components
1 Power Cord Connector 7 Sony/Philips Digital Interconnect Format
(S/PDIF) Connector (green)
2 Voltage Select Switch 8 Line-Out Connector for powered audio
devices (green)
3 Line-In Audio Connector (blue) 9 Microphone Connector (pink)
4 Rear Center Channel/Subwoofer Audio
Connector (orange)
10 Surround Side Channel Audio
Connector (gray)
5 RJ-45 Network Connector 11 Surround Rear Channel Audio
Connector (black)
6 1394 Port 12 Universal Serial Bus (USB) Ports
NOTE: Arrangement and number of connectors may vary by model.
Installation of a PCI Express x16 graphics card is required for video support.
When a device is plugged into the blue Line-In Audio Connector, a dialog box will pop up asking if you
want to use the connector for a line-in device or a microphone. You can reconfigure the connector at
any time by double-clicking the Realtek HD Audio Manager icon in the Windows taskbar.
