4. Disconnect the USB cable from the system board.

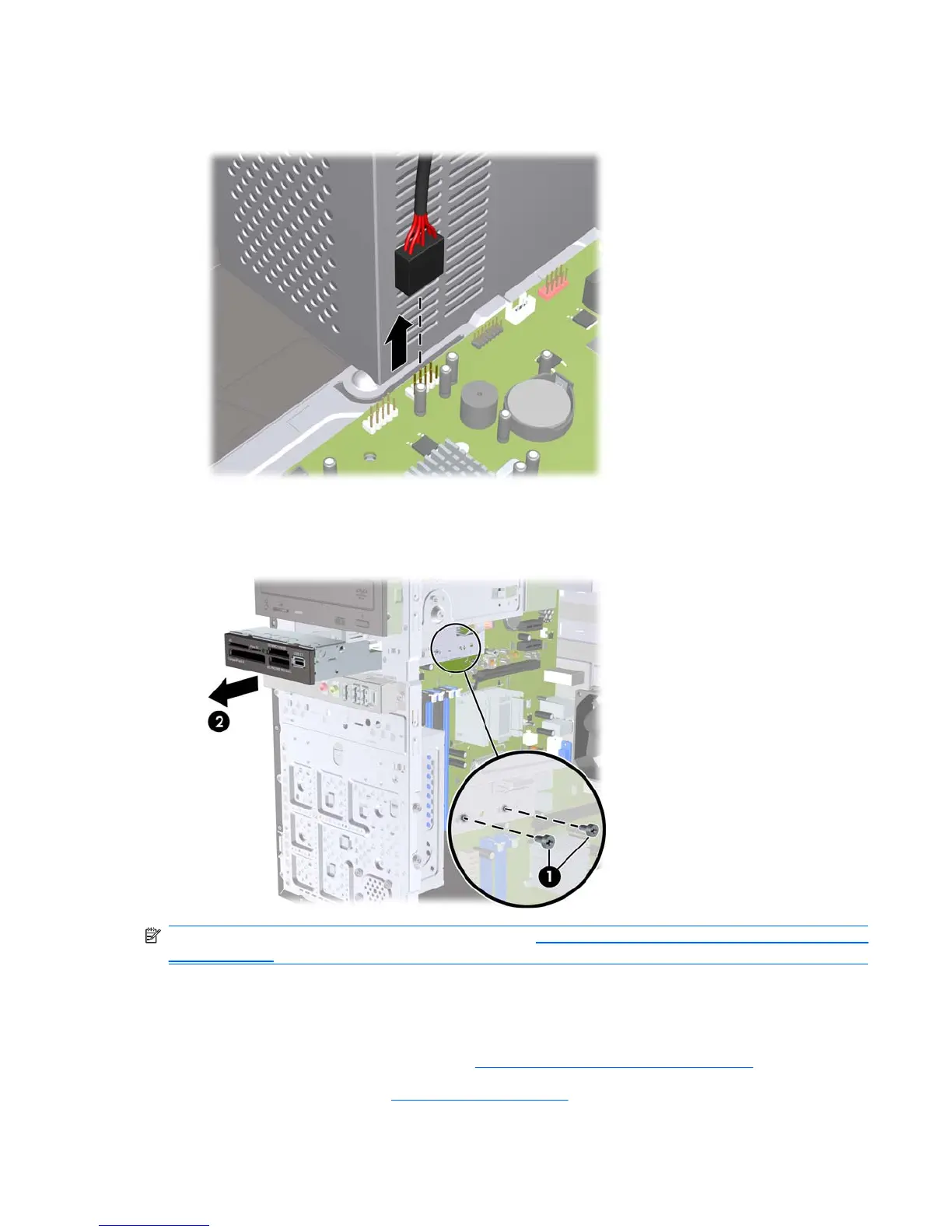

Figure 7-21 Disconnecting the Media Card Reader Cable
5. Remove the two retainer screws that secure the reader to the bay (1) then slide the reader forward
and out of the bay (2).
Figure 7-22 Removing a 3.5-inch Device (Media Card Reader Shown)
NOTE: To install an external 3.5-inch drive, refer to Installing a Drive into the 3.5-inch External Drive
Bayon page 49.
Installing a Drive into the 3.5-inch External Drive Bay
The 3.5-inch external drive bay on the front of the computer can be configured with a media card reader.
1. Prepare the computer for disassembly (
Preparation for Disassembly on page 29).
2. Remove the access panel (
Access Panel on page 30).
Drives 49
