CAUTION: To prevent loss of work and damage to the computer or drive:
If you are inserting or removing a drive, shut down the operating system properly, turn off the computer,
and unplug the power cord. Do not remove a drive while the computer is on or in standby mode.
Before handling a drive, ensure that you are discharged of static electricity. While handling a drive, avoid
touching the connector.
Handle a drive carefully; do not drop it. Do not use excessive force when inserting a drive.
Avoid exposing a hard drive to liquids, temperature extremes, or products that have magnetic fields
such as monitors or speakers.
If a drive must be mailed, place the drive in a bubble-pack mailer or other protective packaging and label
the package “Fragile: Handle With Care.”
System Board Drive Connections
Refer to the following illustration and table to identify the system board drive connectors.

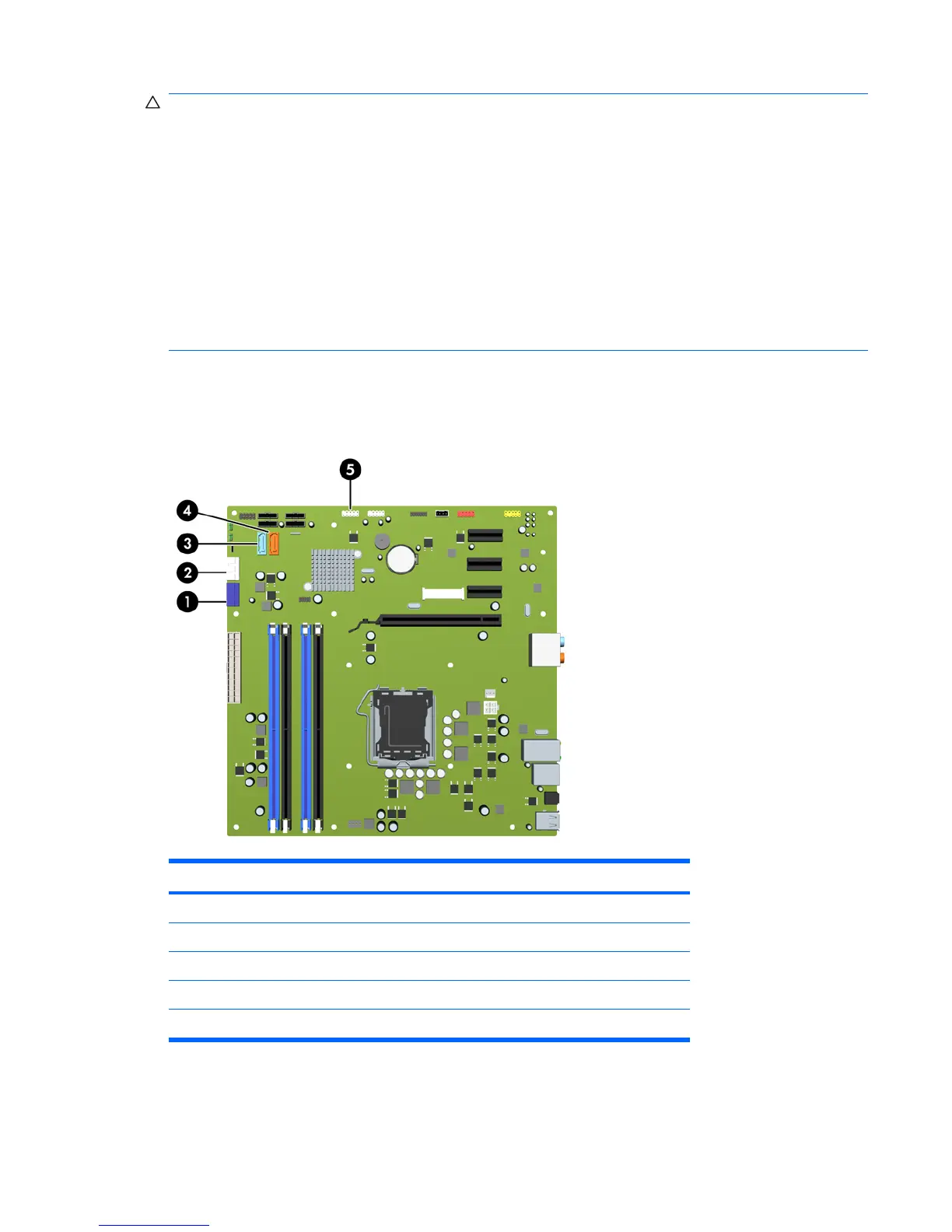

Figure 7-16 System Board Drive Connections
Table 7-3 System Board Drive Connections
No. System Board Connector System Board Label Color
1 SATA1 SATA1 dark blue
2 SATA2 SATA2 white
3 SATA3 SATA3 light blue
4 SATA4 SATA4 orange
5 Media Card Reader JUSB2 white
Drives 45
