Expansion Cards
The computer has three PCI Express x1 expansion slots and one PCI Express x16 expansion slot. The
expansion slots accommodate full-height or half-height expansion cards.

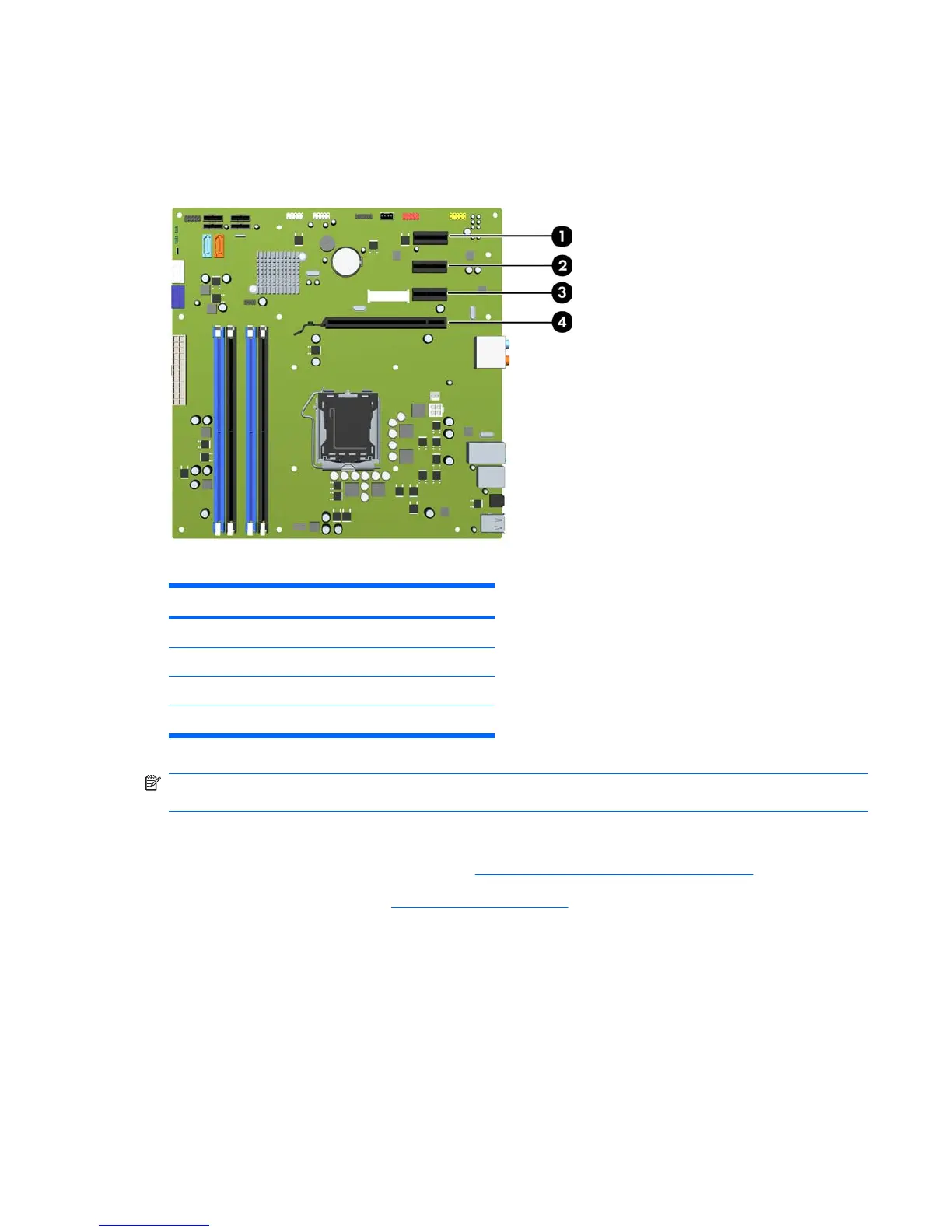

Figure 7-7 Expansion Slot Locations
Table 7-2 Expansion Slot Locations
Item Description
1 PCI Express x1 expansion slot
2 PCI Express x1 expansion slot
3 PCI Express x1 expansion slot
4 PCI Express x16 expansion slot
NOTE: You can install a PCI Express x1, x4, x8, or x16 expansion card in the PCI Express x16
expansion slot.
To remove, replace, or add an expansion card:
1. Prepare the computer for disassembly (
Preparation for Disassembly on page 29).
2. Remove the access panel (
Access Panel on page 30).
3. Locate the correct vacant expansion socket on the system board and the corresponding expansion
slot on the back of the computer chassis.
Expansion Cards 37
