3. Remove the front bezel (Front Bezel on page 31).
4. If you are installing a media card reader in a bay covered by a bezel blank, remove the front bezel
then remove the bezel blank.
5. If you are adding a drive to an empty drive bay for the first time, you must remove the knockout
plate from the bay. To do so, insert a flat screwdriver into the knockout plate slot and rotate the
screwdriver to break the knockout plate out of the chassis. Discard the knockout plate.
6. If the new drive has screws installed on the sides of the drive, remove them before inserting the
drive into the chassis.
7. Slide the drive in through the front of the chassis (1) until the screw holes on the drive are aligned
with the screw holes on the drive cage and install the two M3 metric retainer screws (2) as shown
in the illustration below.
NOTE: Extra drive retainer screws are provided on the interior of the front bezel if needed. The
M3 metric retainer screws for media card readers are black. Refer to
Installing Additional Drives
on page 44 for an illustration of the retainer screws location.

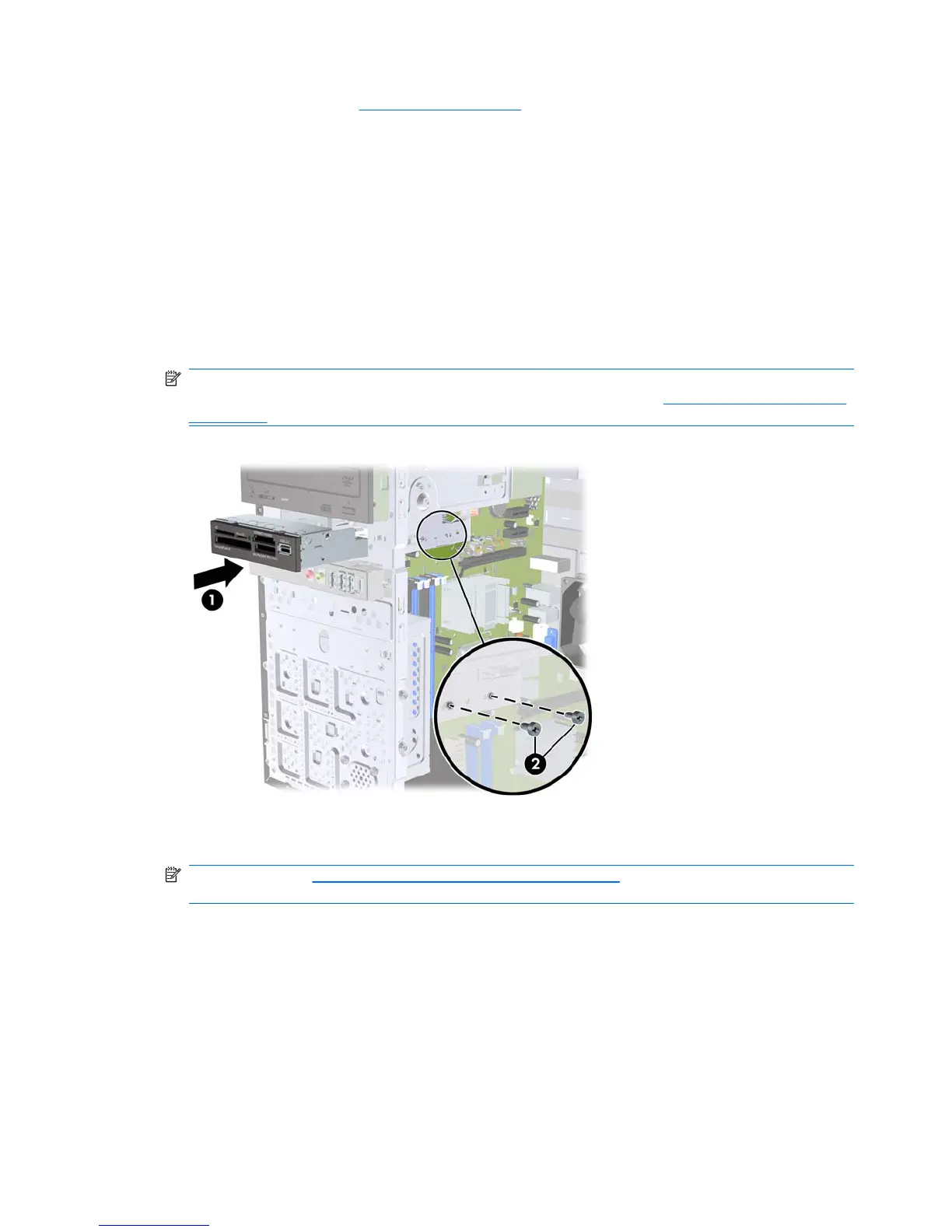

Figure 7-23 Installing a 3.5-inch Device (Media Card Reader Shown)
8. Connect the USB cable from the media card reader to the USB connector on the system board
labeled JUSB2.
NOTE: Refer to System Board Drive Connectionson page 45 for an illustration of the system
board drive connectors.
9. Replace the front bezel and access panel.
10. Reconnect the power cord and turn on the computer.
11. Lock any security devices that were disengaged when the access panel was removed.
50 Chapter 7 Removal and Replacement Procedures Microtower (MT) Chassis
