6. Inside of the unit, press the power supply release latch on the chassis base, and then lift up the
rear of the power supply to disengage it from the chassis.
7. Slide the power supply toward the front/bottom of the computer, then lift the power supply out of
the computer.

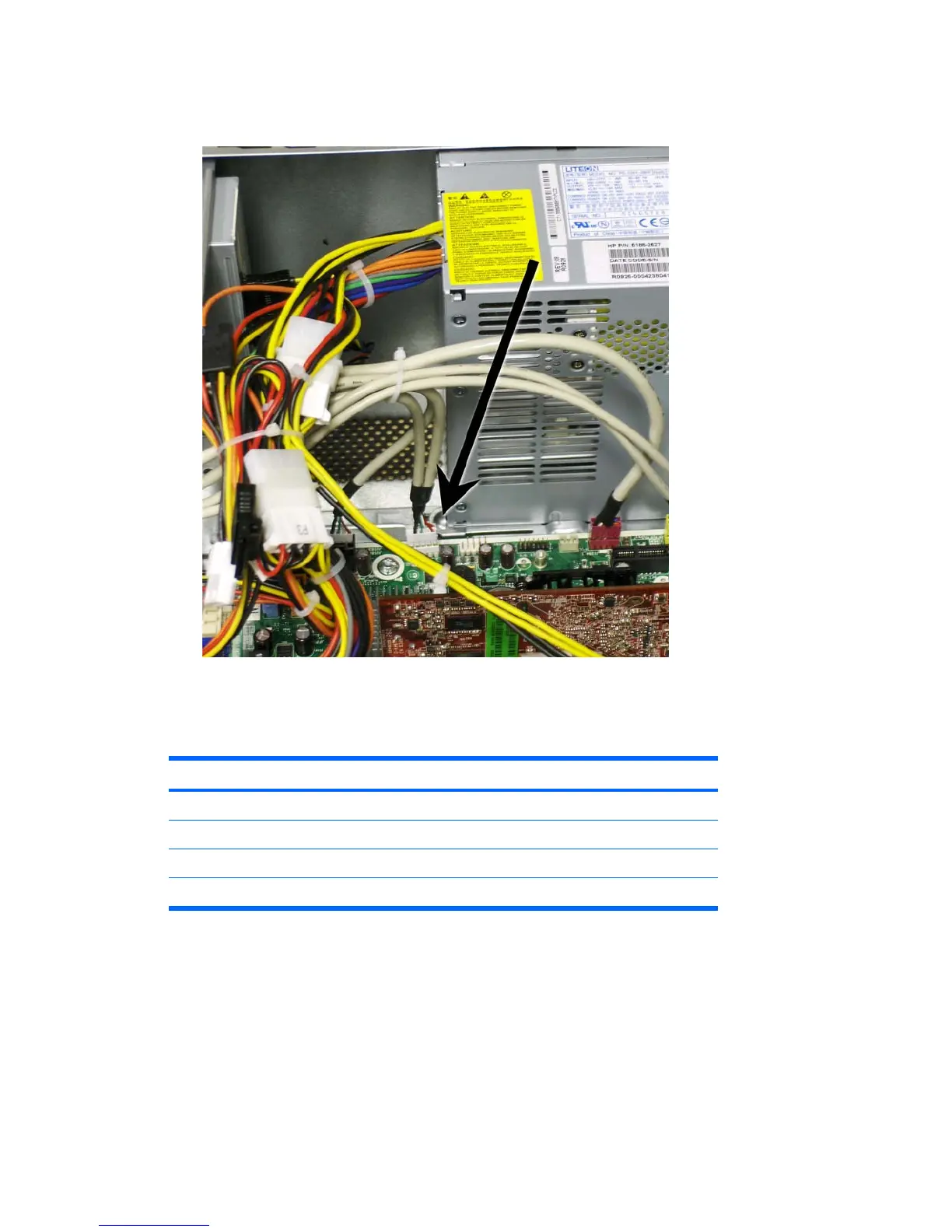

The following table provides information about power supply cable connectors.
Connector Connector Label
Main power (24-pin) P1
CPU power (4-pin) P7
Hard drive (SATA) P9
Optical drive (IDE/SATA) P2 (label on IDE connector; uses IDE/SATA adapter)
To install the power supply, reverse the removal procedure.
Power Supply 63
