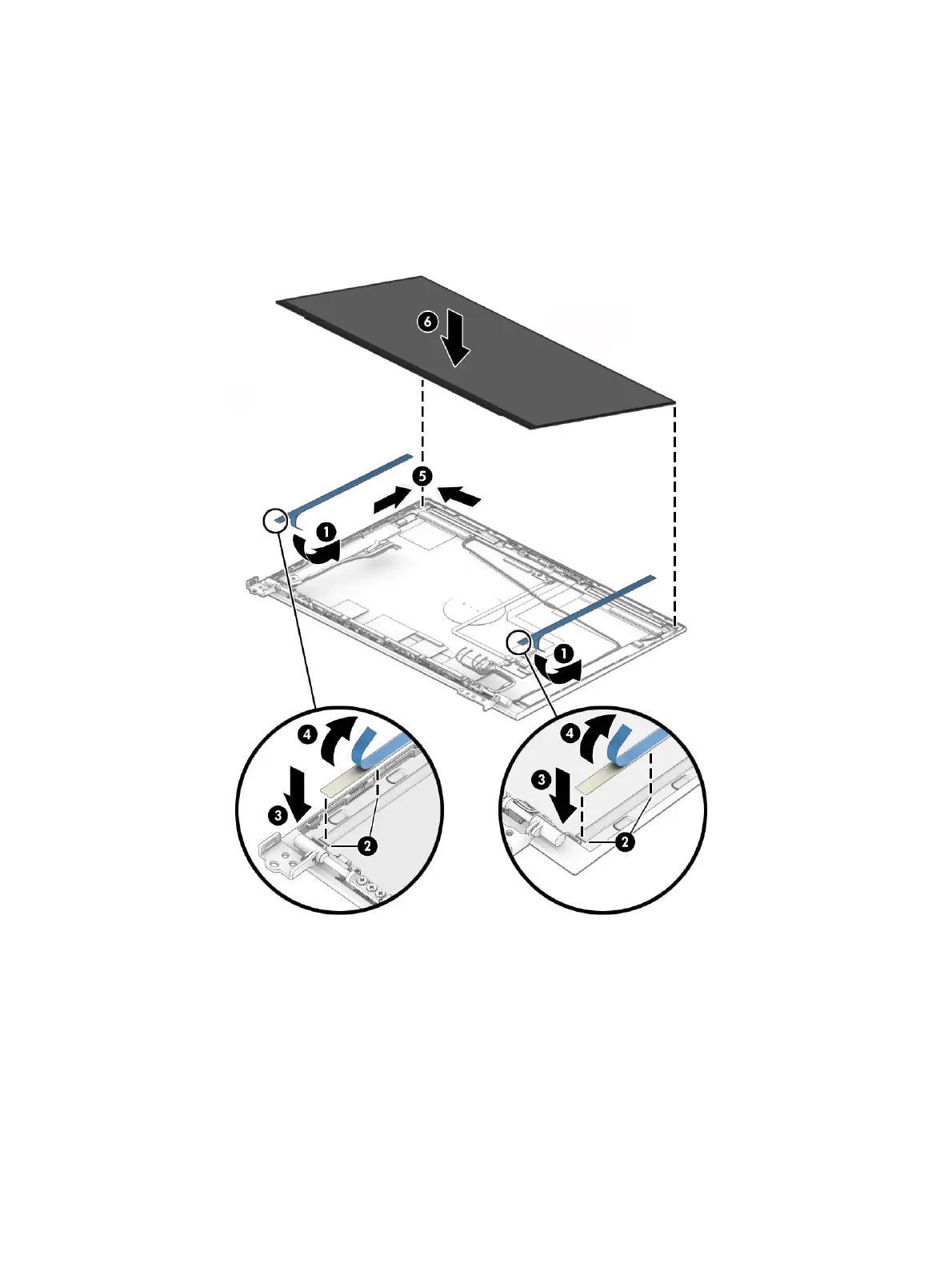

b. Starting near the bottom of the inside of the display back cover (2), install the adhesive strips on
both the left and right sides by aligning them with the groove on the edge of cover (3).
c. Peel the protective layer from the top of the adhesive strips (4).
d. Align the top left of the panel with the top left of the display rear cover (5), and then place the panel
onto the cover (6).
The double-sided adhesive strips are available as spare part number N00351-001.
e. Replace the bezel by pressing along the bottom, sides, and then top of the bezel to snap it into
place.
f. Position the computer upside down on a table.
Display assembly
69
