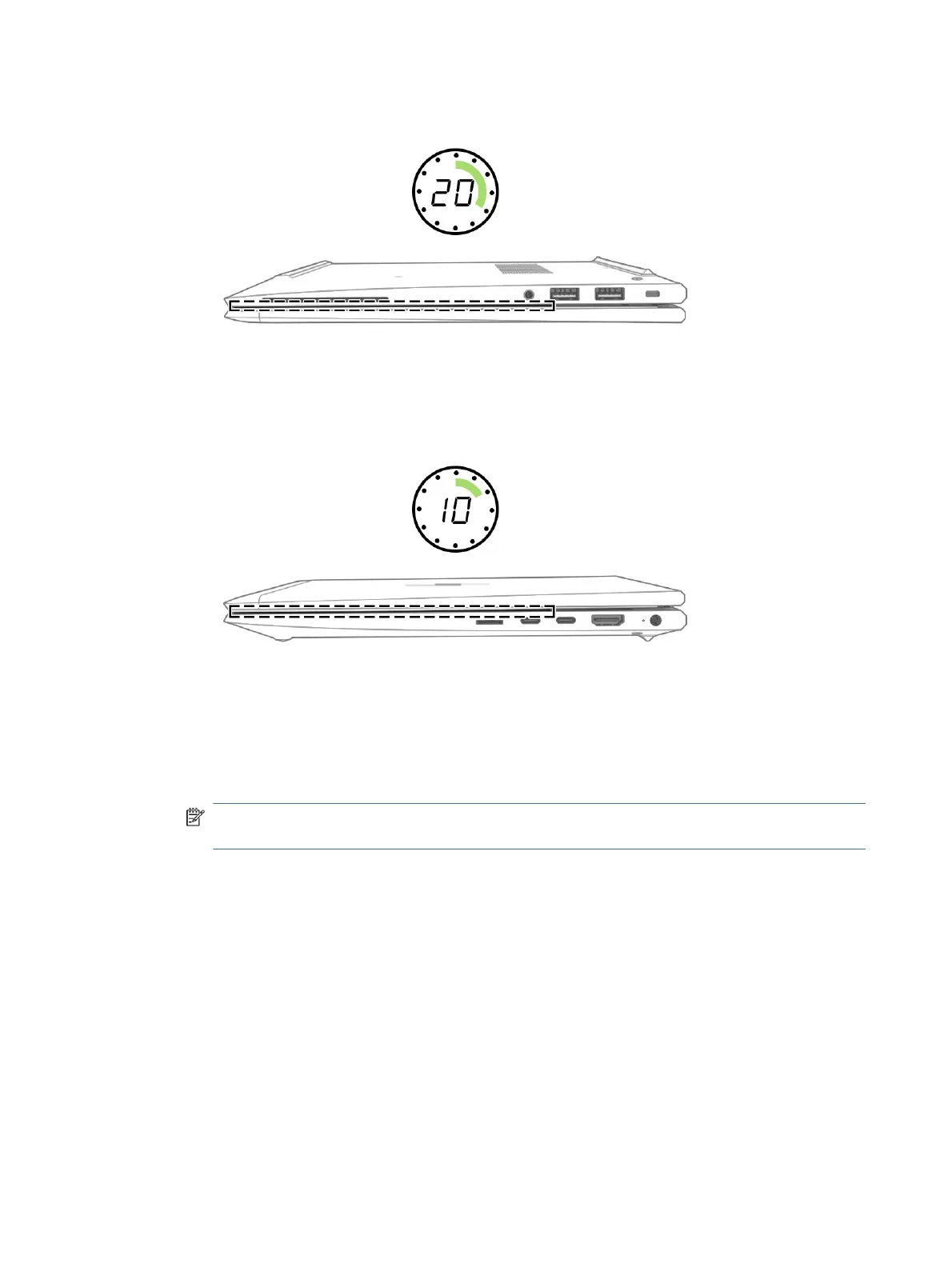

g. Leave the computer upside down on the table for 20 minutes to allow the adhesive to set.
h. Position the computer upright on a table.
i. Leave the computer upright on the table for 10 minutes to be sure that the panel sits correctly in
the display.
10. If you need to remove the camera module:
▲ Use a tool to lift up evenly across the module and peel the module up from the display back cover
(1), and then disconnect the cable or cables from the reverse ZIF connector on the module (2). The
camera module is available as spare part number N05869-001 for HD cameras and N05870-001 for
IR cameras. The microphone module is available as spare part number N05863-001.
NOTE: For installation, note that the cable routes under the camera module before it connects to
the module.
HD camera shown in the following illustration.
70 Chapter 6 Removal and replacement procedures for authorized service provider parts
