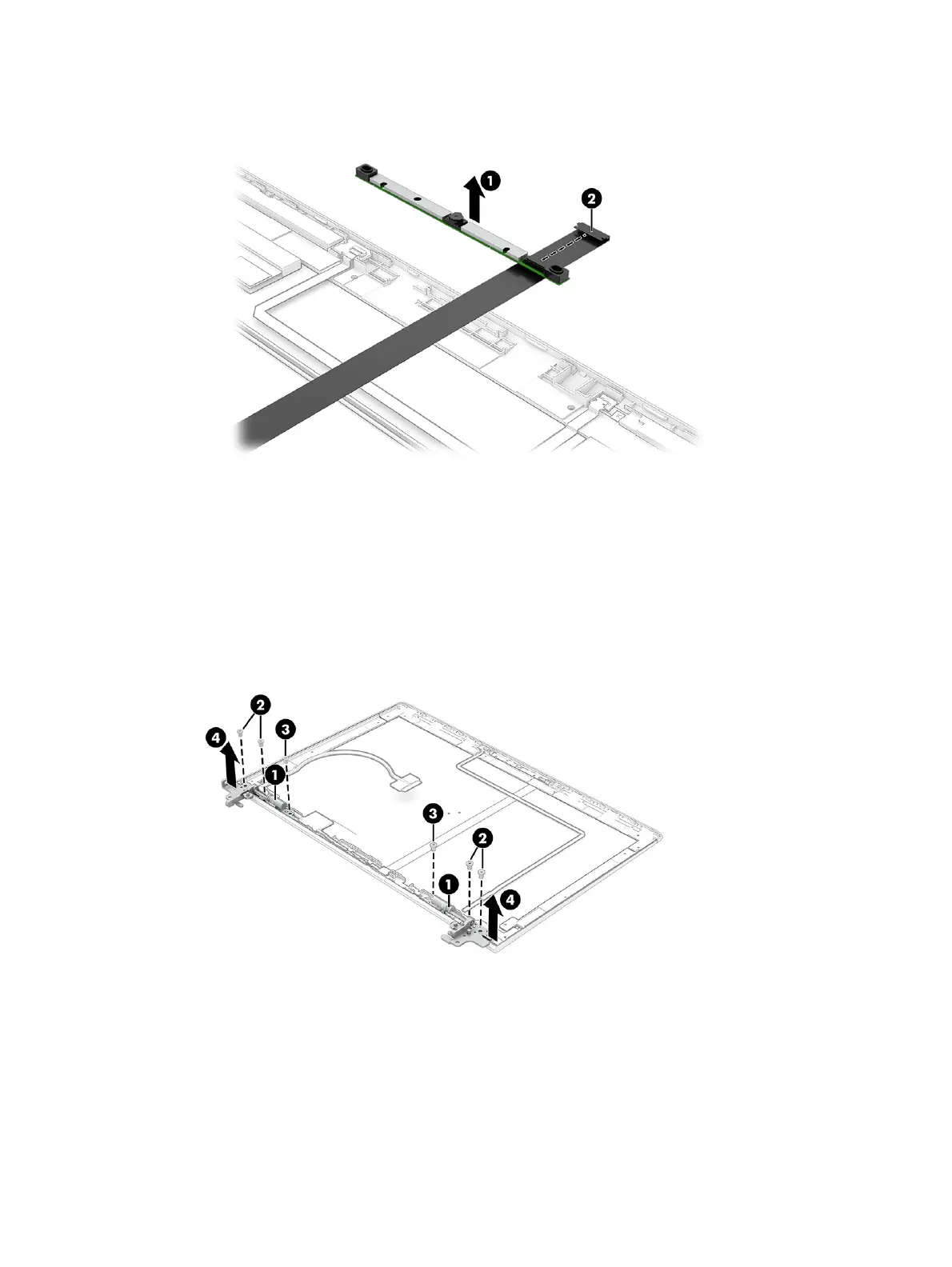

11. If you need to remove the hinges from the display enclosure:
a. Remove the trim pieces (1).
b. Remove the two Phillips M2.5 × 2.5 screws (2) from each hinge.
c. Remove the Phillips M2.5 × 4.0 screw (3) from each hinge.
d. Remove the hinges from the display (4).
The hinges and associated parts are available in the Hinge Kit as spare part number M21732-001.
12. If you need to remove the display panel/camera cable, peel the cable up o the inside of the display rear
cover.
The display panel/camera cable is available as spare part number N03217-001.
Display assembly
71
