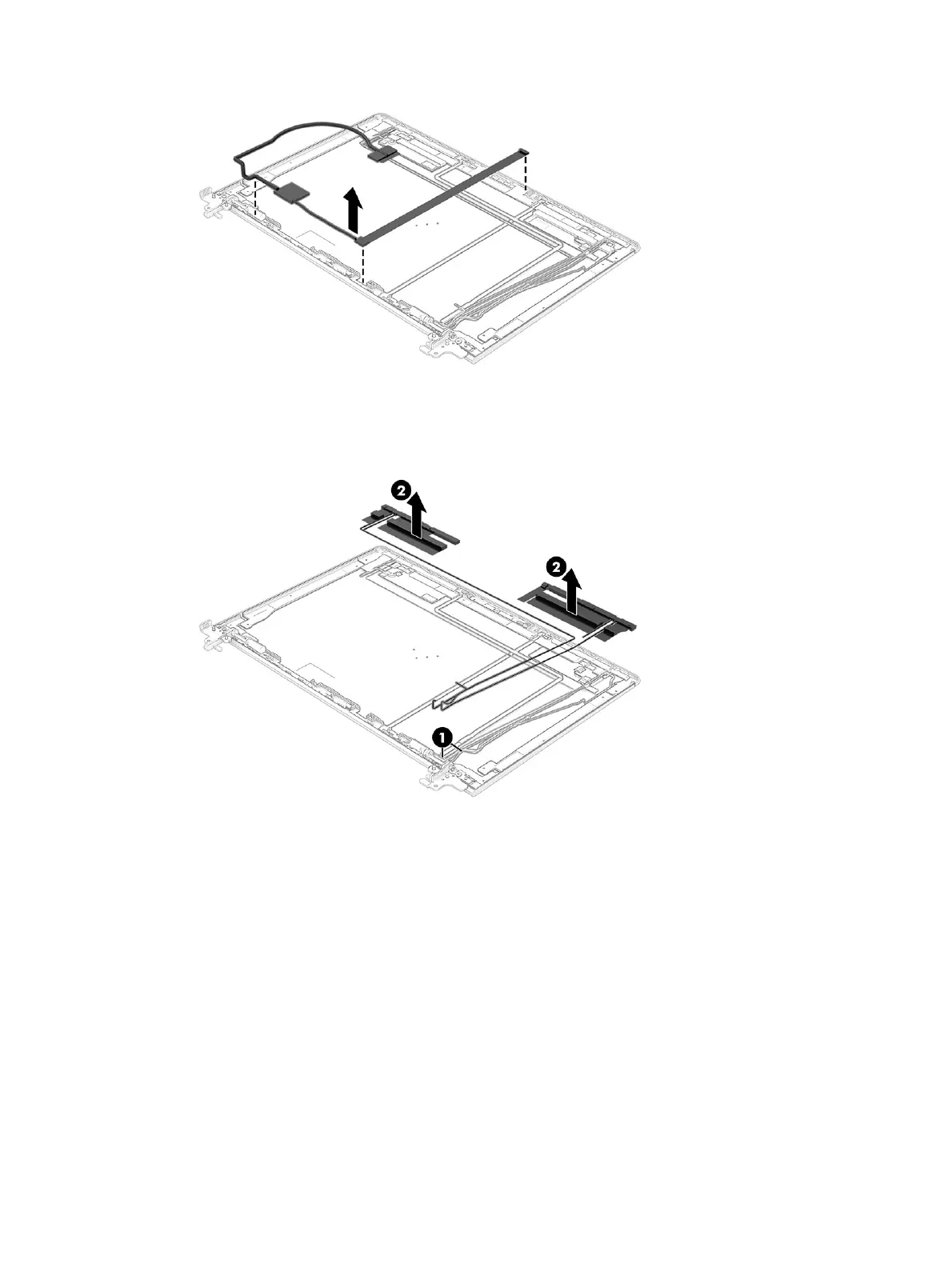

13. If you need to remove the WLAN antennas and cables, remove the cables from the plastic clips at the
bottom-right and the clips on the inside of the display rear cover (1), and then peel the antennas o the
cover (2). The WLAN antennas and cables are available as spare part number N03219-001.
14. If you need to remove the WWAN antennas and cables, remove the cables (1) from the inside of the
display rear cover (2), and then peel the antennas o the cover (3). The WWAN antennas and cables
72 Chapter 6 Removal and replacement procedures for authorized service provider parts
