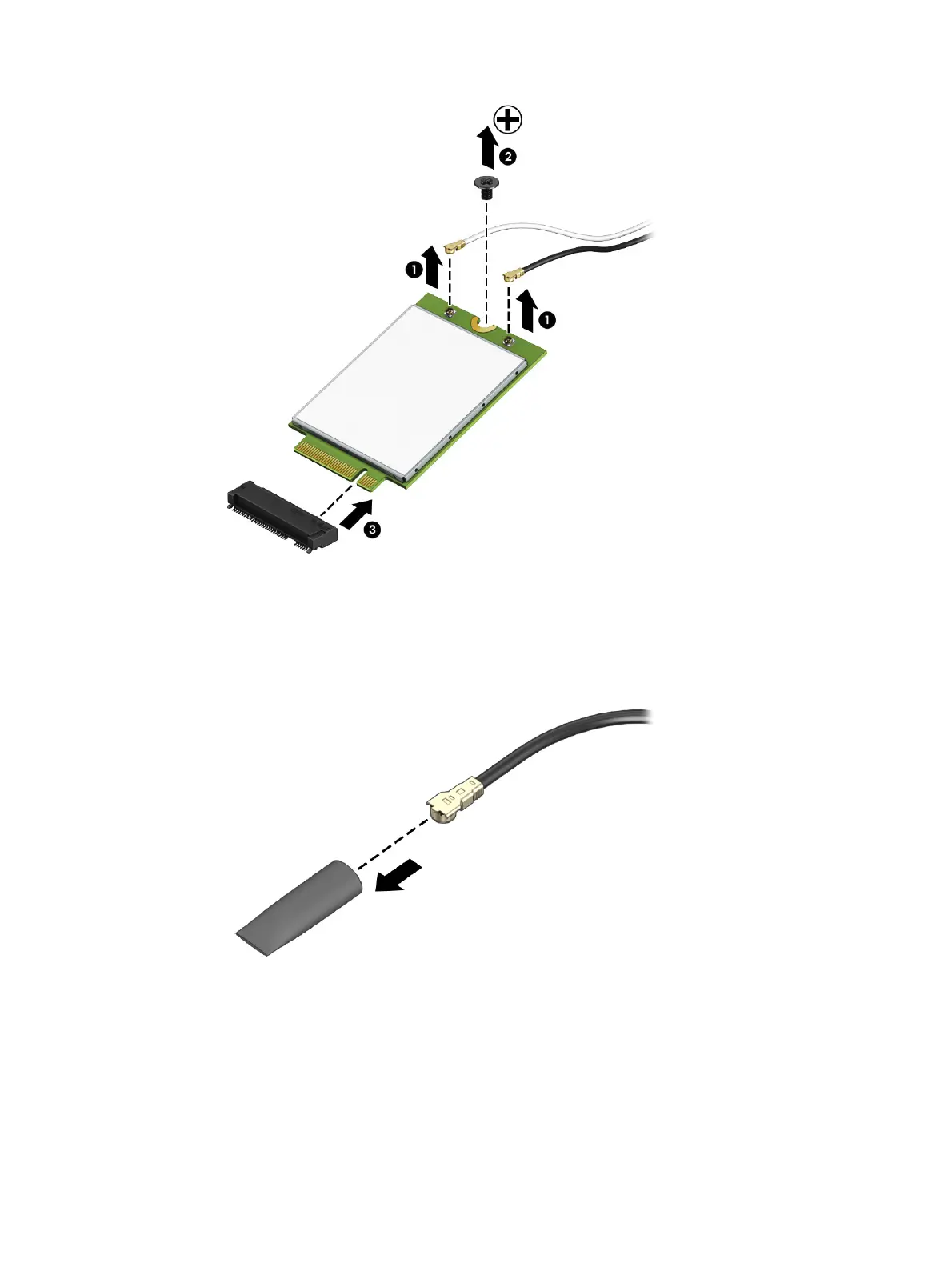

4. If the WWAN antenna is not connected to the terminal on the WWAN module, a protective sleeve must be
installed on the antenna connector, as shown in the following illustration.
Reverse this procedure to install the WWAN module.
Solid-state drive
To remove the M.2 solid-state drive, use this procedure and illustration.
46
Chapter 5Removal and replacement procedures for Customer Self-Repair parts
