Table 5-5 Solid-state drive descriptions and part numbers
Description Spare part number
2 TB PCIe NVMe TLC 2280 Solid State Drive M52027-001
1 TB PCIe NVMe TLC 2280 Solid State Drive M16560-001
512 GB PCIe NVMe TLC 2280 Self Encrypted OPAL2 Solid State Drive M52031-001
512 GB PCIe NVMe TLC Solid State Drive M17436-001
512 GB, M.2 2280, PCIe, NVMe, value L85364-001
256 GB PCIe NVMe TLC 2280 Self Encrypted OPAL2 Solid State Drive M52029-001
256 GB PCIe NVMe TLC 2280 single-sided Solid State Drive M52025-001
256 GB, M.2 2280, PCIe, NVMe value L85354-001
Before removing the solid-state drive, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 40).
2. Remove the bottom cover (see Bottom cover on page 40).
3. Remove the battery (see Battery on page 41).

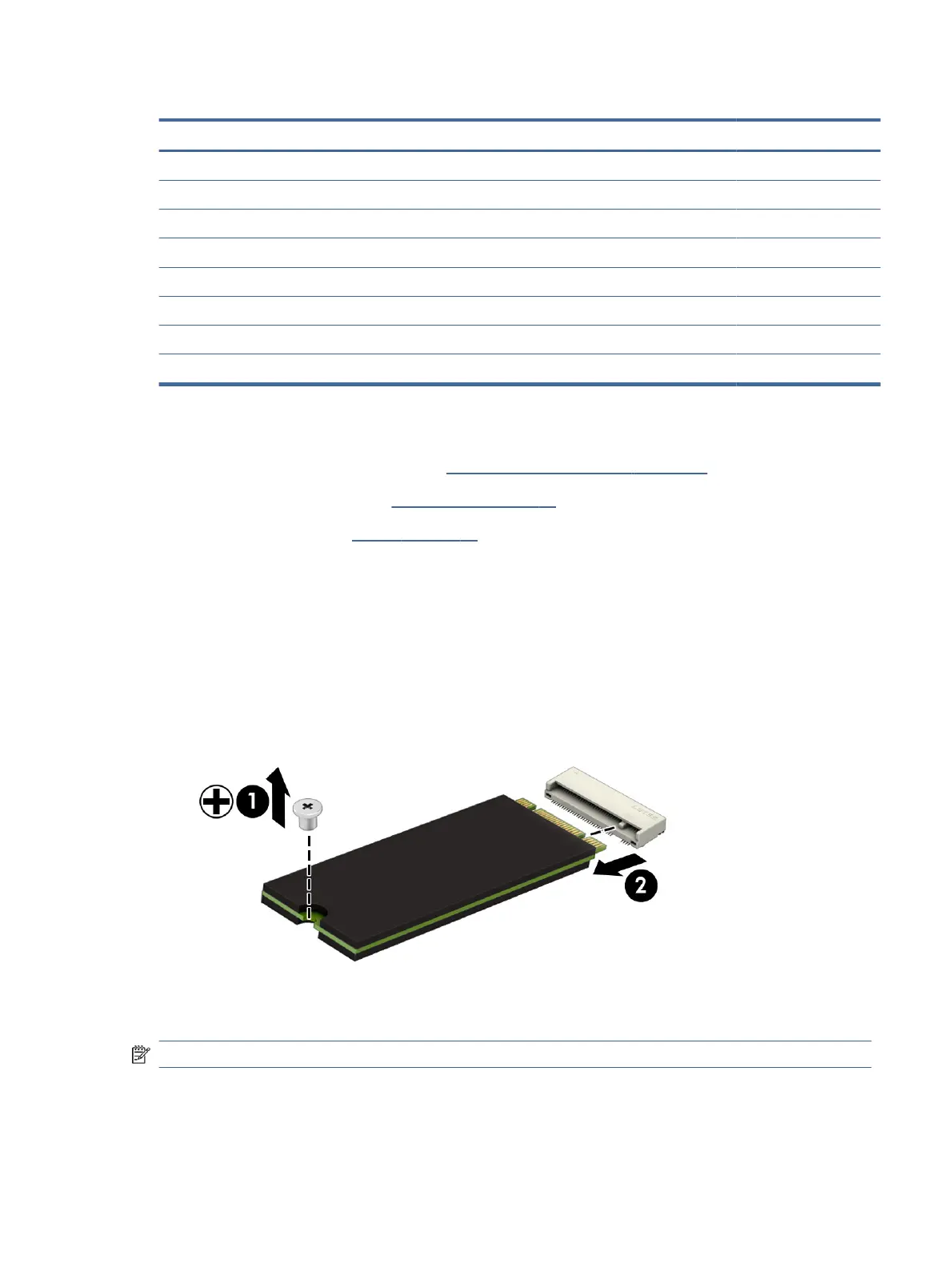

Remove the solid-state drive:
1. Remove the Phillips M2.0 × 2.0 screw (1) that secures the drive to the computer.
2. Pull the drive away from the socket to remove it (2).
To install the solid-state drive, reverse the removal procedures.
NOTE: Solid-state drives are designed with a notch to prevent incorrect insertion.
Solid-state drive
47
