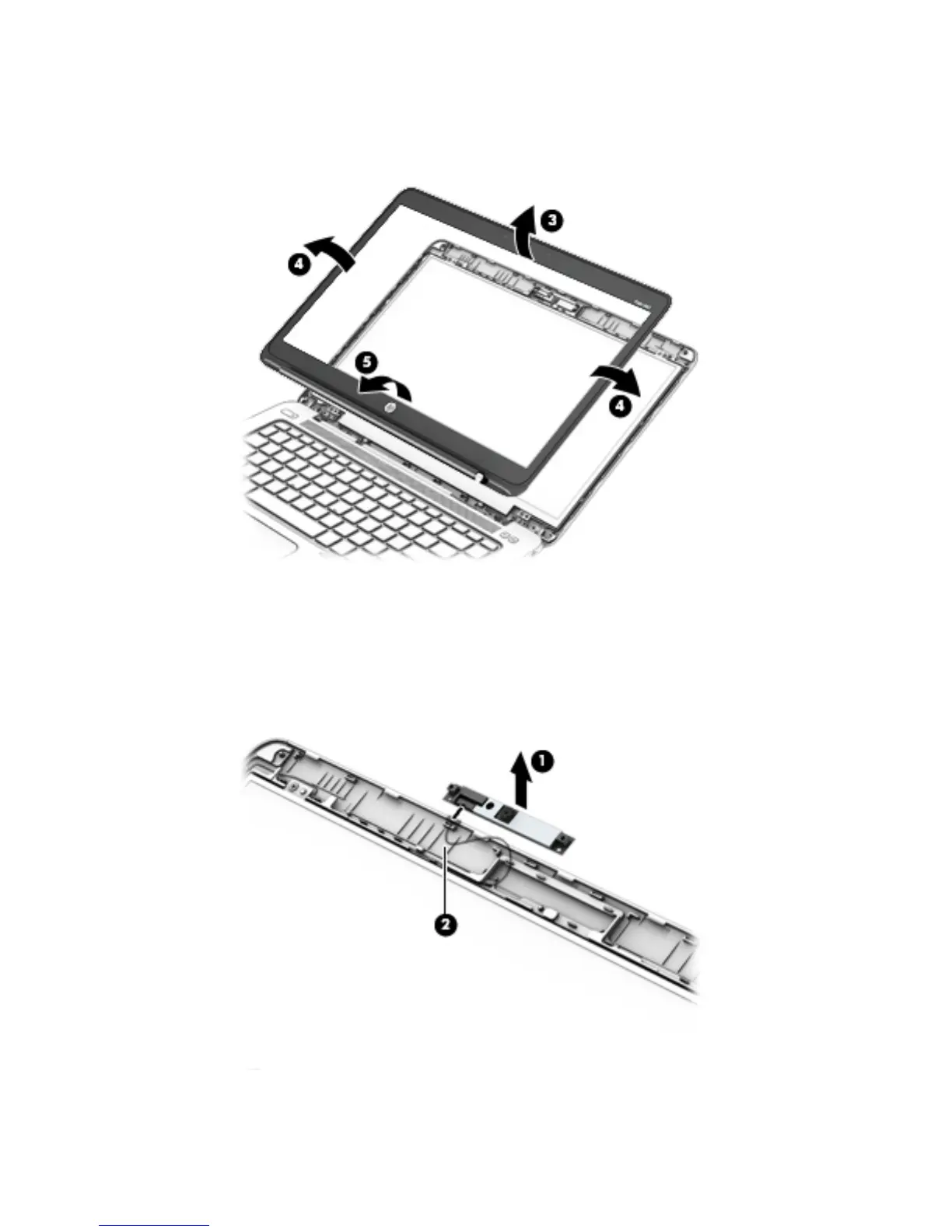

e. Flex the inside edges of the top edge (3), the left and right sides (4), and the bottom edge (5) of
the display bezel until the bezel disengages from the display enclosure. The display bezel is
available using spare part number 739568-001 on models with a webcam and 748015-001 on
models without a webcam.
4. If it is necessary to replace the webcam/microphone module:
a. Detach the webcam/microphone module (1) from the display enclosure. (The webcam/microphone
module is attached to the display enclosure with adhesive.)
b. Disconnect the cable (2) from the webcam/microphone module.
The webcam module is available using spare part number 781958-001. The microphone module is
available using spare part number 739571-001.
5. If it is necessary to replace the display panel:
Component replacement procedures 29
