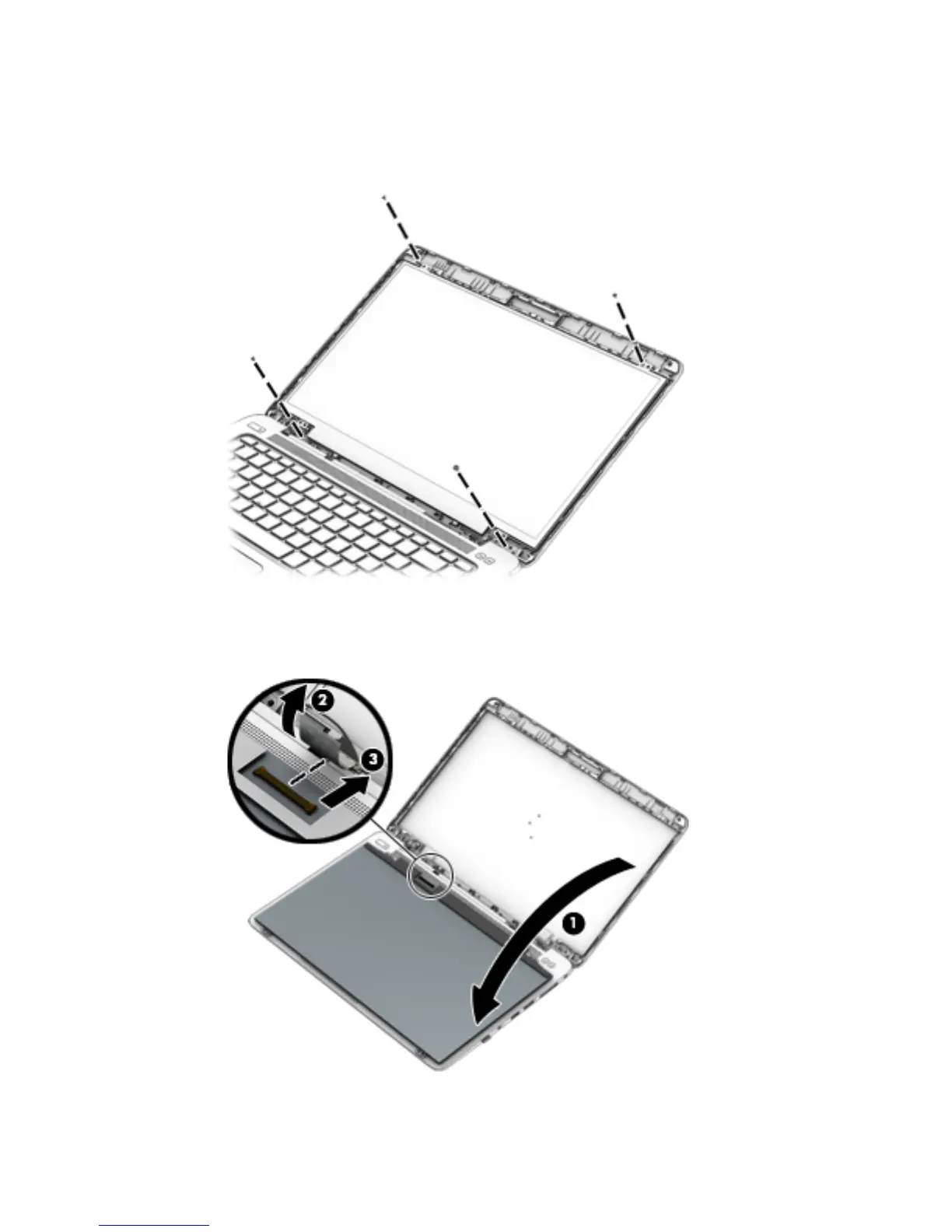

a. Remove the four Phillips PM2.0×2.0 screws that secure the display panel to the display enclosure.
●
781959-001 — 35.6-cm (14.0-in), LED, AntiGlare display panel, UWVA
●
784476-001 — 35.6-cm (14.0-in), LED, AntiGlare display panel, SVA HD+
b. Rotate the top of the display panel downward (1) onto the keyboard.
c. Lift the tape that secure the display cable connector on the panel (2), and then disconnect the
cable from the connector (3).
Reverse this procedure to reassemble and install the display assembly components.
30 Chapter 5 Removal and replacement procedures for Authorized Service Provider parts
