HP EliteBook Folio 1040 G2

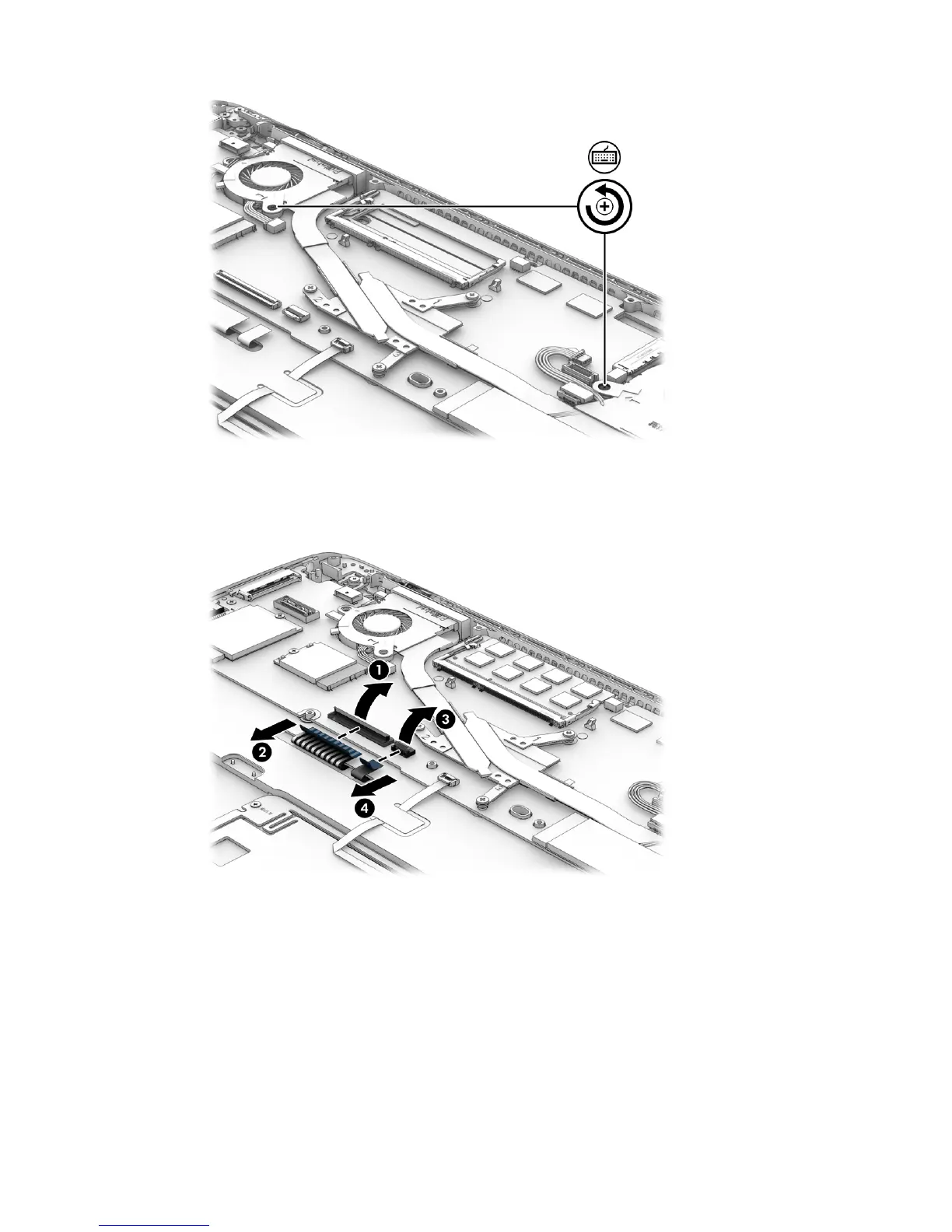

2. Release and disconnect the following connectors and cables:
●
Release the keyboard connector (1) and remove the cable (2).
●
Release the backlight connector (3) and remove the cable (4).
3. Position the computer open and on its side.
Component replacement procedures 47
