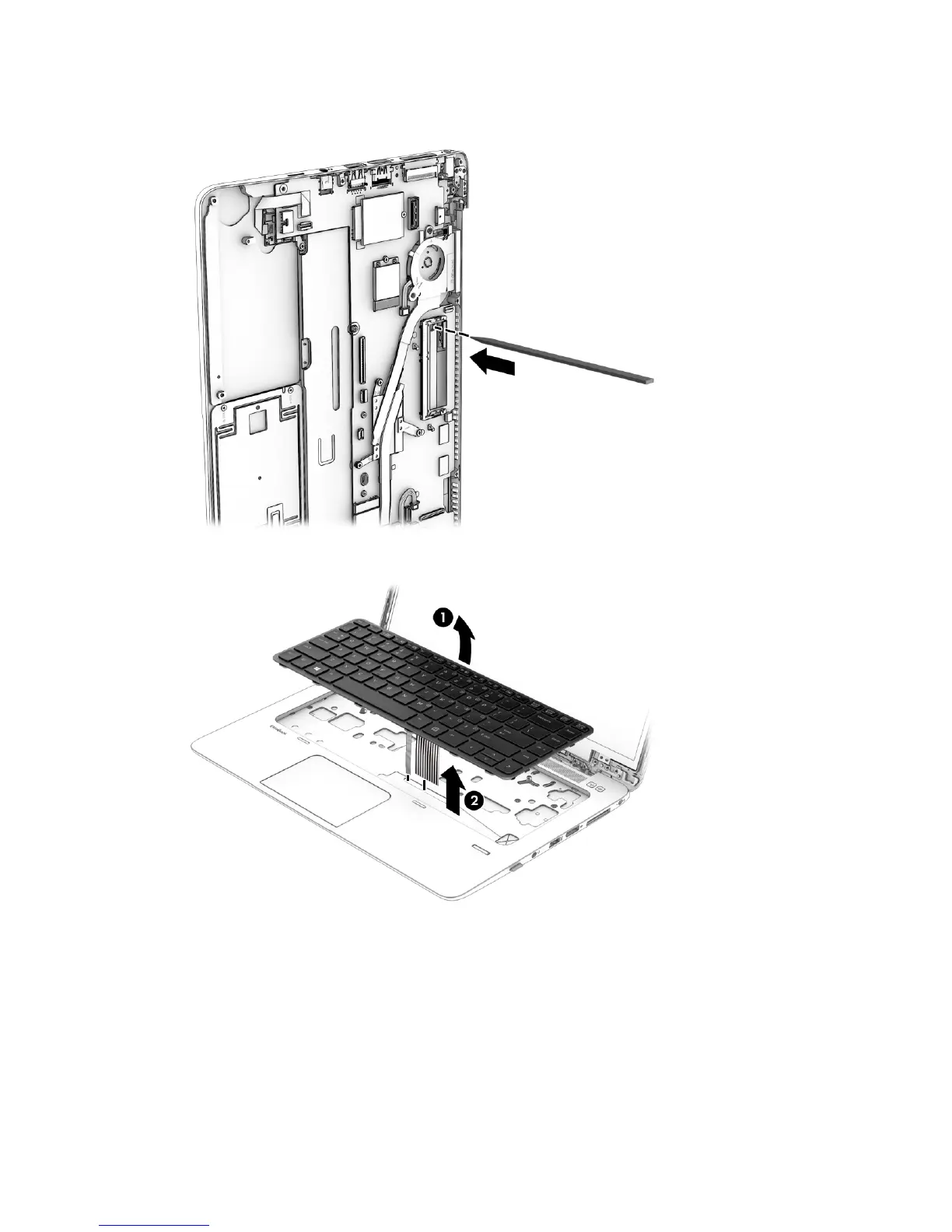

4. Insert a screw driver or similar thin tool into the keyboard release opening under the memory module,
and then press on the back of the keyboard until the keyboard disengages from the computer.
5. Lift the rear edge of the keyboard (1), and then remove the keyboard (2).
6. Remove the keyboard.
Reverse this procedure to install the keyboard.
48 Chapter 5 Removal and replacement procedures for Authorized Service Provider parts
