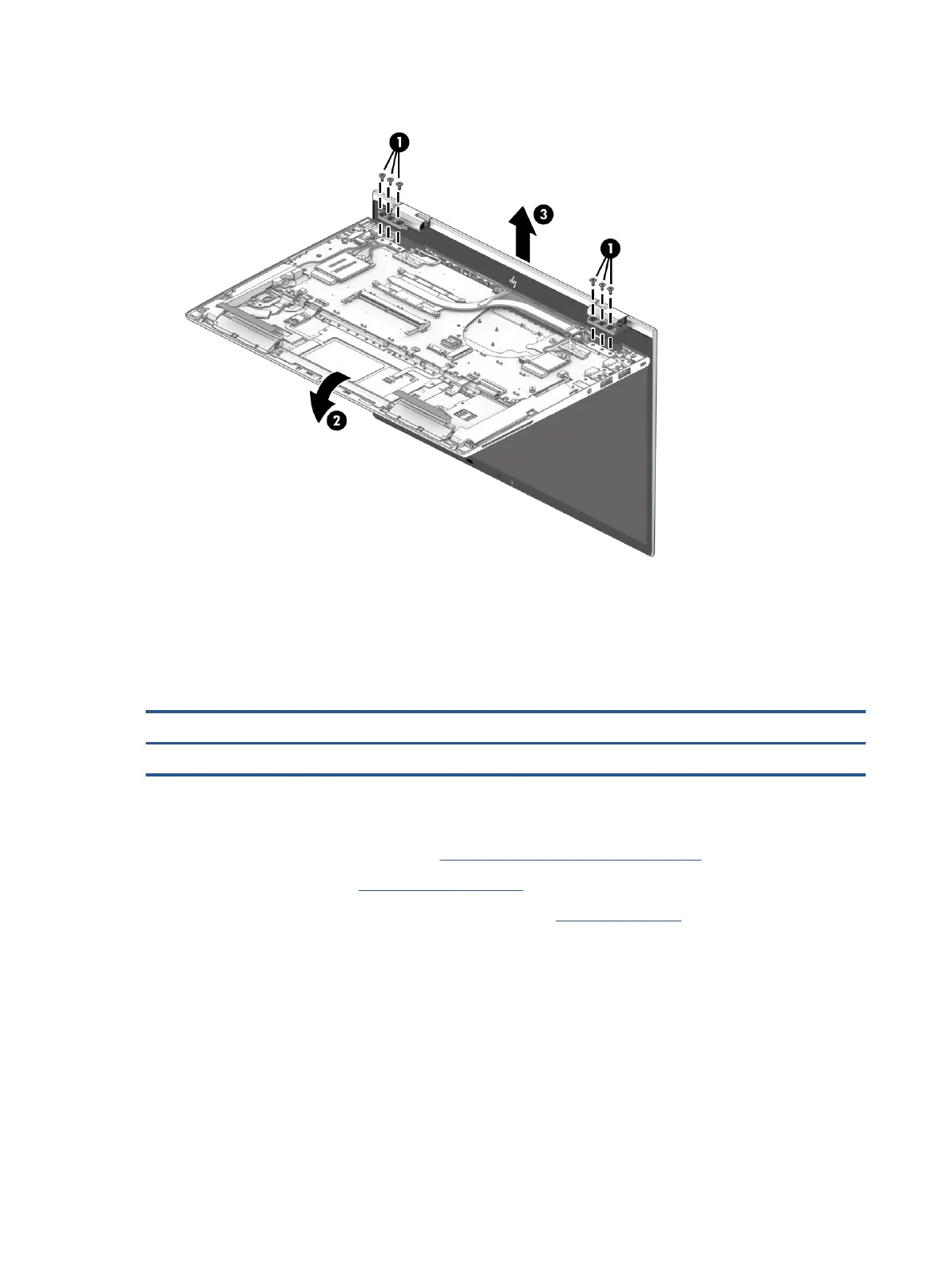

5. Separate the display assembly from the computer (3).
Reverse this procedure to replace the display assembly.
Power connector cable
To remove the power connector cable, use this procedure and illustration.
Table
6-3 Power connector cable description and part number
Description Spare part number
Power connector cable (included in the Cable Kit) M03867-001
Before removing the power connector cable, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 30).
2. Remove the bottom cover (Bottom cover on page 30).
3. Disconnect the battery cable from the system board (see Battery on page 38).
Remove the power connector cable:
1. Disconnect the cable from the system board (1), and then remove the cable from the clip.
2. Remove the Phillips M2.0 × 4.0 screw (2) that secures the power connector cable to the computer.
42 Chapter 6 Removal and replacement procedures for authorized service provider parts
