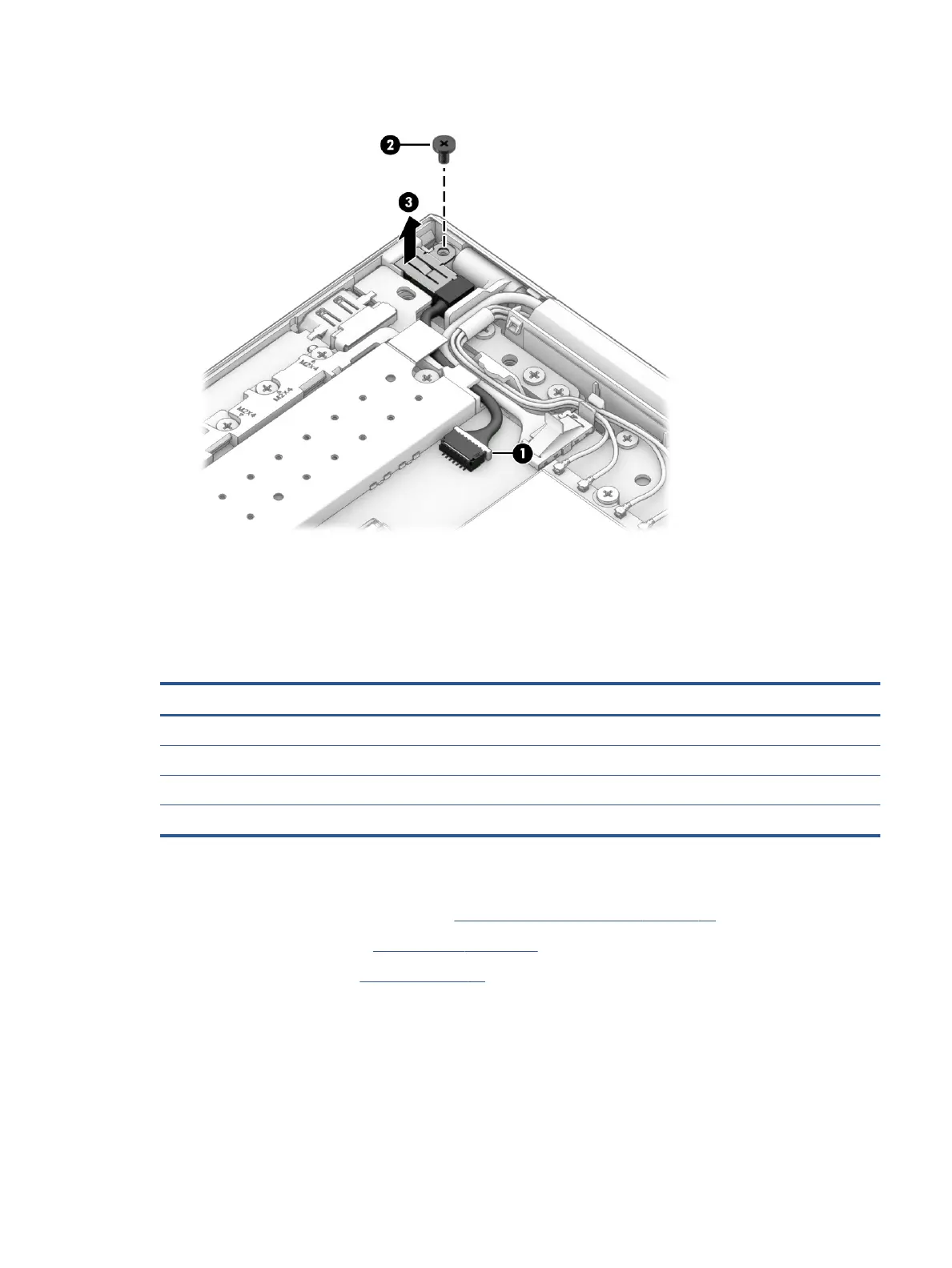

3. Remove the power connector cable from the computer (3).
Reverse this procedure to install the power connector cable.
Fingerprint reader board
To remove the ngerprint reader board, use this procedure and illustration.
Table
6-4 Fingerprint reader board description and part number
Description Spare part number
Fingerprint reader board M36397-001
Fingerprint reader insert (included in Plastics Kit) M46068-001
Fingerprint reader board cable (included in Cable Kit) M03867-001
Fingerprint reader board bracket (included in Bracket Kit) M46057-001
Before removing the ngerprint reader board, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 30).
2. Remove the bottom cover (Bottom cover on page 30).
3. Remove the battery (see Battery on page 38).
Remove the ngerprint reader board:
1. Disconnect the cable from the ZIF connector on the ngerprint board (1).
2. Remove the Phillips M2.0 × 2.0 screw (2) that secures the ngerprint reader bracket to the computer,
and then remove the bracket (3).
Component replacement procedures 43
