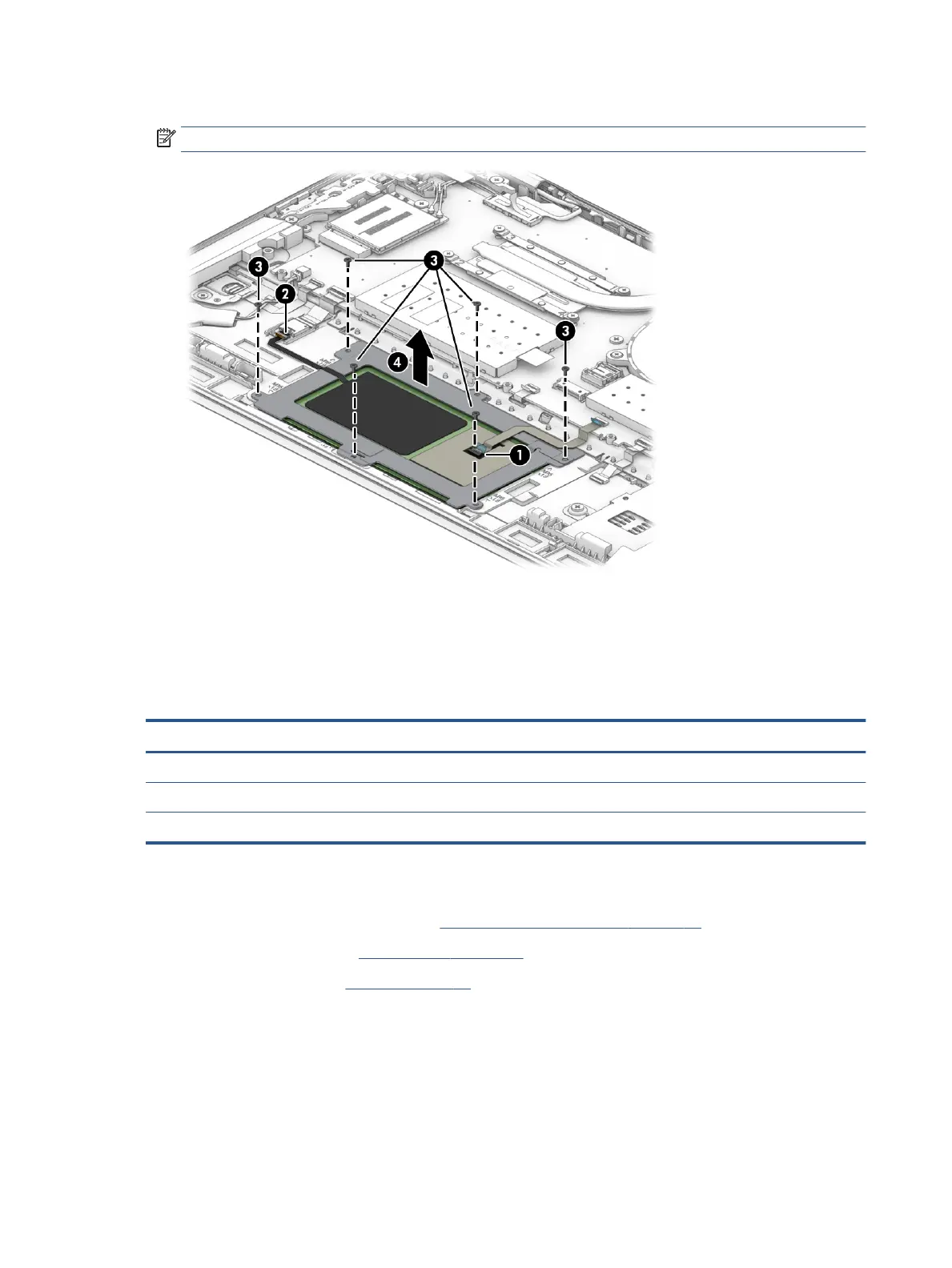

4. Remove the touchpad from the computer (4).
NOTE: System board appearance might vary.
Reverse this procedure to install the touchpad.
NFC module
To remove the NFC module, use this procedure and illustration.
Table
6-7 NFC module description and part number
Description Spare part number
NFC module M08706-001
NFC module cable (included in the Cable Kit) M03867-001
NFC module antenna M03892-001
Before removing the NFC module, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 30).
2. Remove the bottom cover (Bottom cover on page 30).
3. Remove the battery (see Battery on page 38).
Remove the NFC module:
1. Disconnect the system board cable from the ZIF connector on the NFC module (1).
2. Disconnect the touchpad cable from the reverse ZIF connector on the NFC module (2).
46 Chapter 6 Removal and replacement procedures for authorized service provider parts
