HP EliteDesk 800 G2 Desktop Mini User Manual

Secondary fan (EliteDesk 800 and MP9 models only)
HP EliteDesk 800 G2 and HP MP9 G2 Retail System models include a secondary fan installed under the hard
drive.
1. Prepare the computer for disassembly (Preparation for disassembly on page 20).
2. Remove the top cover (Top cover on page 21).
3. Remove the hard drive (Hard drive on page 23).

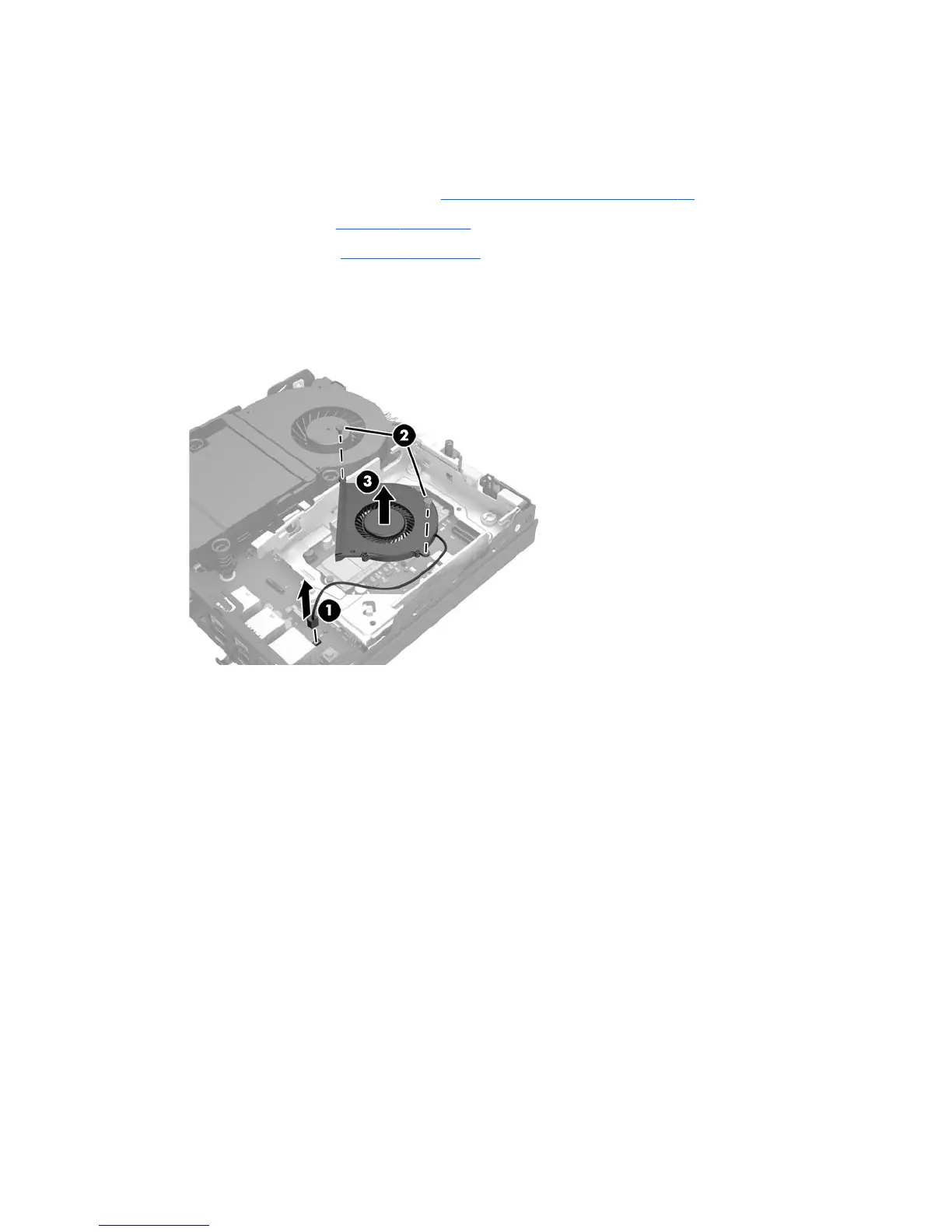

4. Disconnect the fan plug from the system board (1).
5. Remove the two screws securing the secondary fan (2).
6. Lift the fan out of the chassis (3).
To install the secondary fan, reverse the removal procedure.
26 Chapter 4 Removal and replacement procedures – desktop mini (DM) chassis

HP EliteDesk 800 G2 Desktop Mini Specifications

General

Chipset	Intel Q170
Graphics	Intel HD Graphics 530
Form Factor	Mini PC
CPU Options	Intel Core i7-6700T, Intel Core i5-6500T, Intel Core i3-6100T
RAM	DDR4-2133 MHz
Memory Capacity	Up to 32 GB
Storage	SATA HDD/SSD, M.2 SSD
Storage Options	500GB HDD, 1TB HDD, 128GB SSD, 256GB SSD, 512GB SSD
Operating System	Windows 10 Pro
OS Options	Windows 10 Pro 64, Windows 10 Home 64, FreeDOS 2.0
Ports	1 x RJ-45, 2 x DisplayPort, 1 x VGA, 1 x headphone/microphone combo
Wireless	Intel Dual Band Wireless-AC 8260, Bluetooth 4.2
Dimensions	17.7 x 17.5 x 3.4 cm
Weight	1.3 kg
Processor	Intel Core i5-6500
