WLAN module
Description
Intel Dual Band Wireless-AC 7265 NV
Intel Dual Band Wireless-AC 8260 + Bluetooth 4.0
Intel Dual Band Wireless-AC 3165 + Bluetooth 4.0
HP WLAN 802.11 a/b/g/n + Bluetooth 4.0
The WLAN module is secured with one Phillips screw and has two connected antennas. It is located under the
hard drive.
1. Prepare the computer for disassembly (Preparation for disassembly on page 20).
2. Remove the top cover (Top cover on page 21).
3. Remove the hard drive (Hard drive on page 23).
4. If your model is an EliteDesk 800 or MP9, remove the secondary fan (Secondary fan (EliteDesk 800 and
MP9 models only) on page 26).
5. Remove the drive cage (Drive cage on page 27).

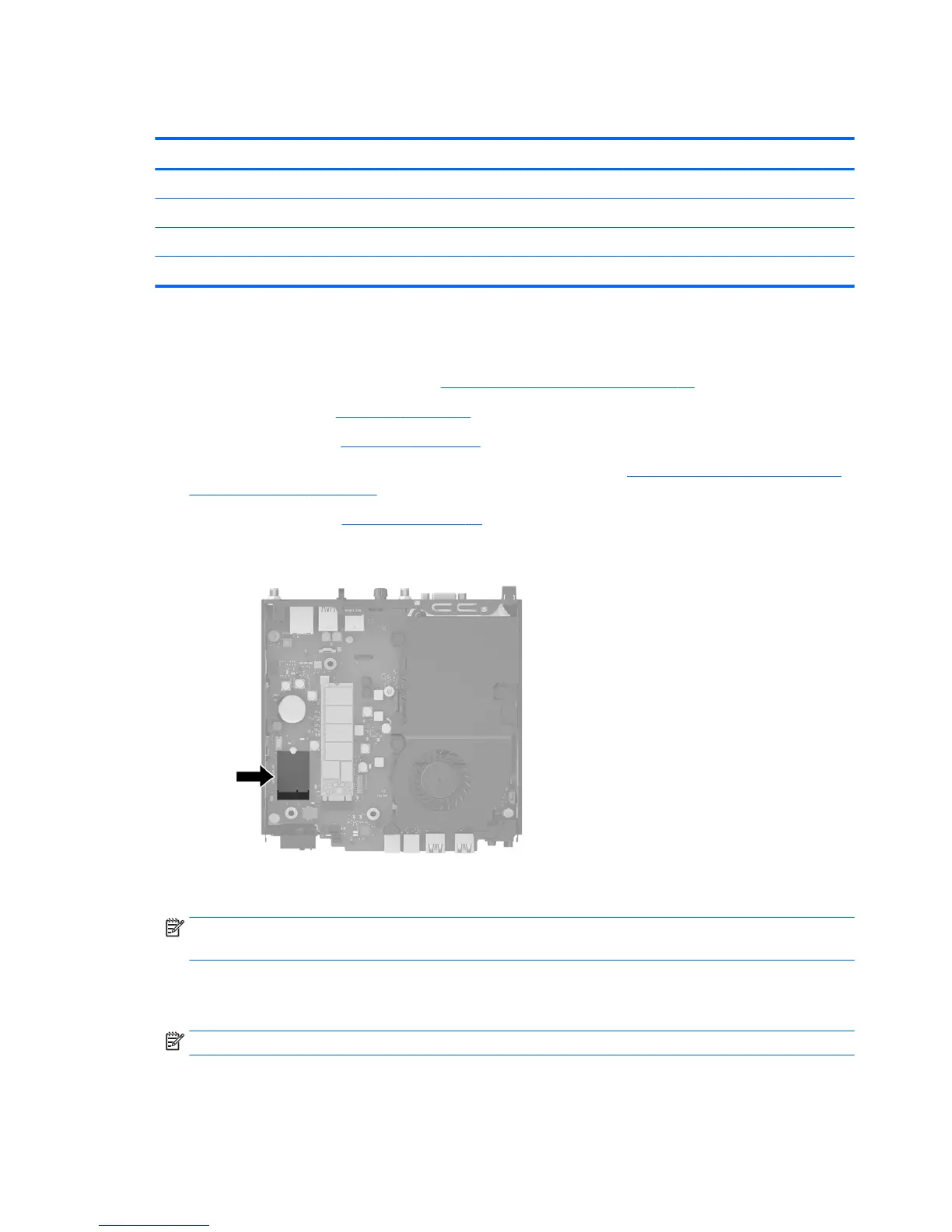

6. Locate the WLAN module on the system board.
7. Disconnect both antenna cables from the WLAN module.
NOTE: You may need to use a small tool, such as tweezers or needle-nose pliers, to disconnect and
connect the antenna cables.
8. Grasp the WLAN module by the sides and pull it out of the socket.
9. Insert the new WLAN module into the socket on the system board.
NOTE: A WLAN module can be installed in only one way.
10. Press the WLAN connectors rmly into the socket (1).
11. Press the WLAN module down to the system board and use the included screw to secure the module (2).
30 Chapter 4 Removal and replacement procedures – desktop mini (DM) chassis

HP EliteDesk 800 G2 Desktop Mini Specifications

General

Chipset	Intel Q170
Graphics	Intel HD Graphics 530
Form Factor	Mini PC
CPU Options	Intel Core i7-6700T, Intel Core i5-6500T, Intel Core i3-6100T
RAM	DDR4-2133 MHz
Memory Capacity	Up to 32 GB
Storage	SATA HDD/SSD, M.2 SSD
Storage Options	500GB HDD, 1TB HDD, 128GB SSD, 256GB SSD, 512GB SSD
Operating System	Windows 10 Pro
OS Options	Windows 10 Pro 64, Windows 10 Home 64, FreeDOS 2.0
Ports	1 x RJ-45, 2 x DisplayPort, 1 x VGA, 1 x headphone/microphone combo
Wireless	Intel Dual Band Wireless-AC 8260, Bluetooth 4.2
Dimensions	17.7 x 17.5 x 3.4 cm
Weight	1.3 kg
Processor	Intel Core i5-6500
