HP EliteDesk 800 G2 Desktop Mini User Manual

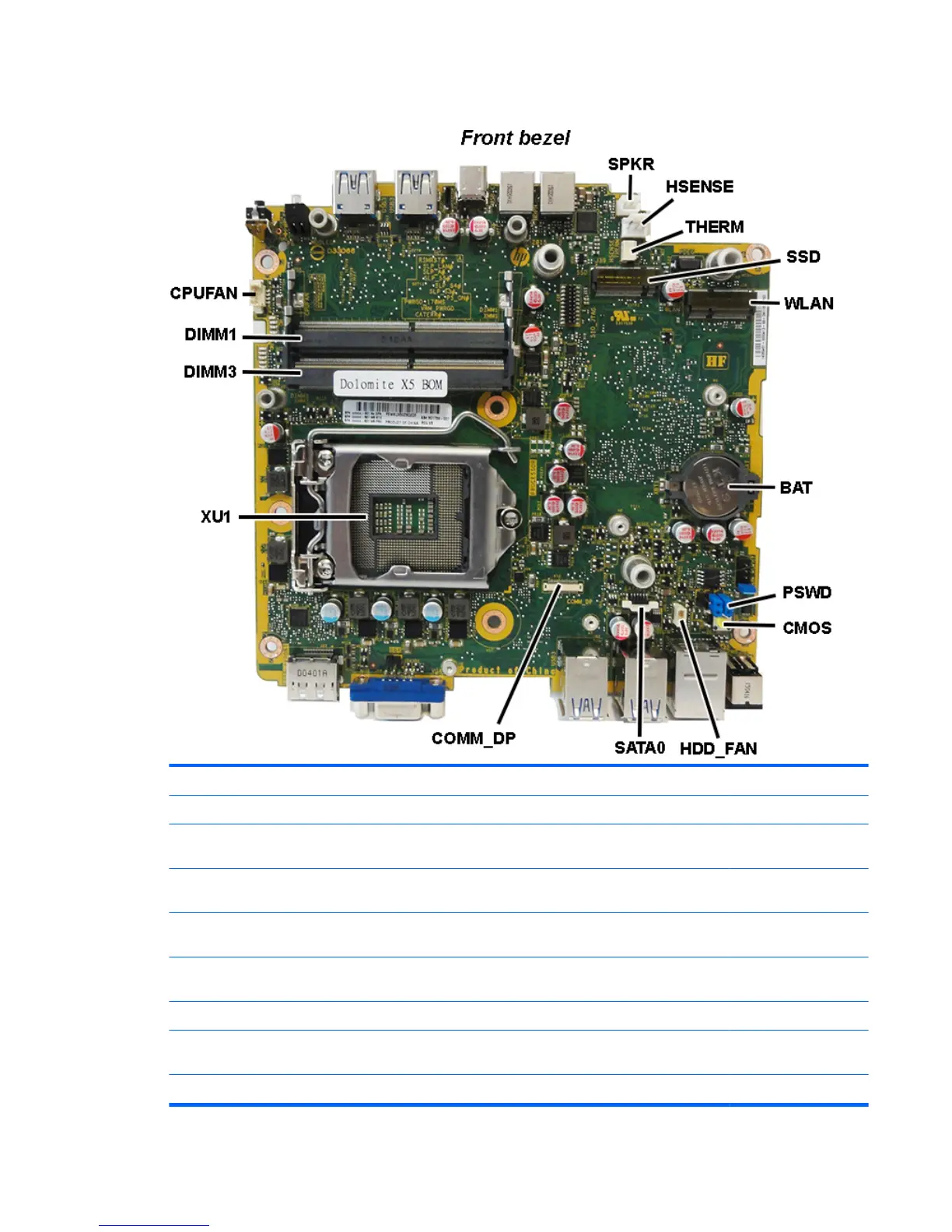

System board callouts, EliteDesk 800, ProDesk 600, and HP MP9 Retail System
Sys Bd Label Color Component Sys Bd Label Color Component
SPKR White Speaker connector HDD_FAN White Secondary hard drive
HSENSE White Hood sensor connector SATA Blue Hard drive data
connector
THERM White Thermal sensor COMM_DP White Expansion board
connector
SSD Black Solid-state module
socket
XU1 Black Processor socket
WLAN Black WLAN module socket DIMM3 Black Secondary memory
socket
BAT Black RTC battery DIMM1 Black Primary memory socket
PSWD Black/blue Password header and
jumper
CPUFAN White Fan connector
CMOS Yellow CMOS reset button
System board 51

HP EliteDesk 800 G2 Desktop Mini Specifications

General

Chipset	Intel Q170
Graphics	Intel HD Graphics 530
Form Factor	Mini PC
CPU Options	Intel Core i7-6700T, Intel Core i5-6500T, Intel Core i3-6100T
RAM	DDR4-2133 MHz
Memory Capacity	Up to 32 GB
Storage	SATA HDD/SSD, M.2 SSD
Storage Options	500GB HDD, 1TB HDD, 128GB SSD, 256GB SSD, 512GB SSD
Operating System	Windows 10 Pro
OS Options	Windows 10 Pro 64, Windows 10 Home 64, FreeDOS 2.0
Ports	1 x RJ-45, 2 x DisplayPort, 1 x VGA, 1 x headphone/microphone combo
Wireless	Intel Dual Band Wireless-AC 8260, Bluetooth 4.2
Dimensions	17.7 x 17.5 x 3.4 cm
Weight	1.3 kg
Processor	Intel Core i5-6500
