HP EliteDesk 800 G2 Desktop Mini User Manual

Heat sink
The heat sink is secured with four captive Torx screws.
1. Prepare the computer for disassembly (Preparation for disassembly on page 20).
2. Remove the top cover (Top cover on page 21).
3. Remove the fan (Fan on page 37).

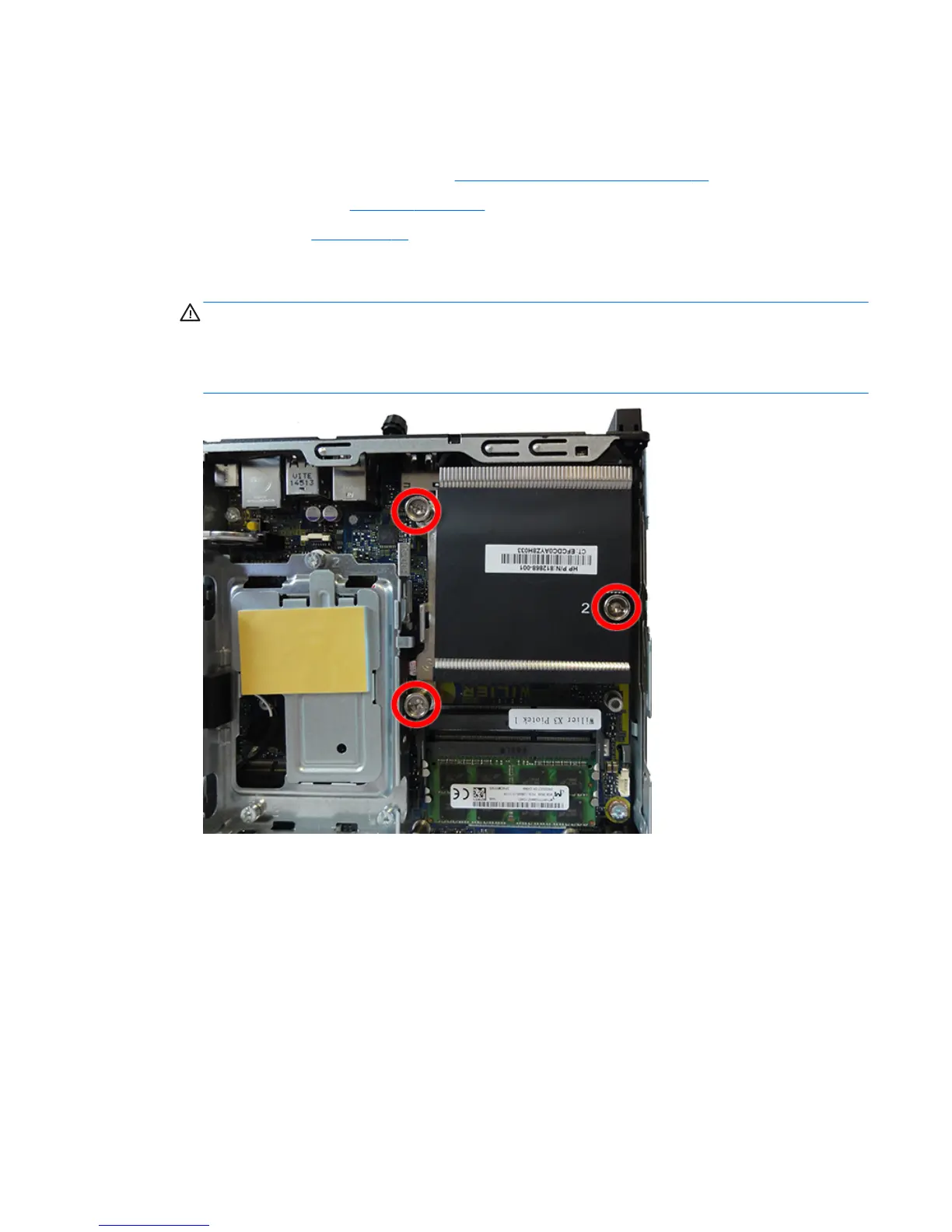

4. In the order indicated on the heat sink, loosen the three captive Torx screws, and then lift the heat sink
out of the computer.
CAUTION: Be sure the loosen the screws in the order indicated by the numbers stamped on the heat
sink.
CAUTION: To reduce a degradation in thermal performance, be sure not to touch the thermal grease
on the surface of the processor or the heat sink.
To replace the heat sink, reverse the removal procedures.
When replacing the heat sink, be sure to install thermal pads as shown in the following image:
Heat sink 43

HP EliteDesk 800 G2 Desktop Mini Specifications

General

Chipset	Intel Q170
Graphics	Intel HD Graphics 530
Form Factor	Mini PC
CPU Options	Intel Core i7-6700T, Intel Core i5-6500T, Intel Core i3-6100T
RAM	DDR4-2133 MHz
Memory Capacity	Up to 32 GB
Storage	SATA HDD/SSD, M.2 SSD
Storage Options	500GB HDD, 1TB HDD, 128GB SSD, 256GB SSD, 512GB SSD
Operating System	Windows 10 Pro
OS Options	Windows 10 Pro 64, Windows 10 Home 64, FreeDOS 2.0
Ports	1 x RJ-45, 2 x DisplayPort, 1 x VGA, 1 x headphone/microphone combo
Wireless	Intel Dual Band Wireless-AC 8260, Bluetooth 4.2
Dimensions	17.7 x 17.5 x 3.4 cm
Weight	1.3 kg
Processor	Intel Core i5-6500
