HP EliteDesk 800 G2 Desktop Mini User Manual

Thermal sensor
A thermal sensor installs at the front of the computer near the speaker. Adhesive secures the sensor to the
chassis that houses the speaker.
To remove the thermal sensor:
1. Prepare the computer for disassembly (Preparation for disassembly on page 20).
2. Remove the top cover (Top cover on page 21).
3. Remove the hard drive (Hard drive on page 23).
4. If your model is an EliteDesk 800 or MP9, remove the secondary fan (Secondary fan (EliteDesk 800 and
MP9 models only) on page 26).
5. Remove the drive cage (Drive cage on page 27).

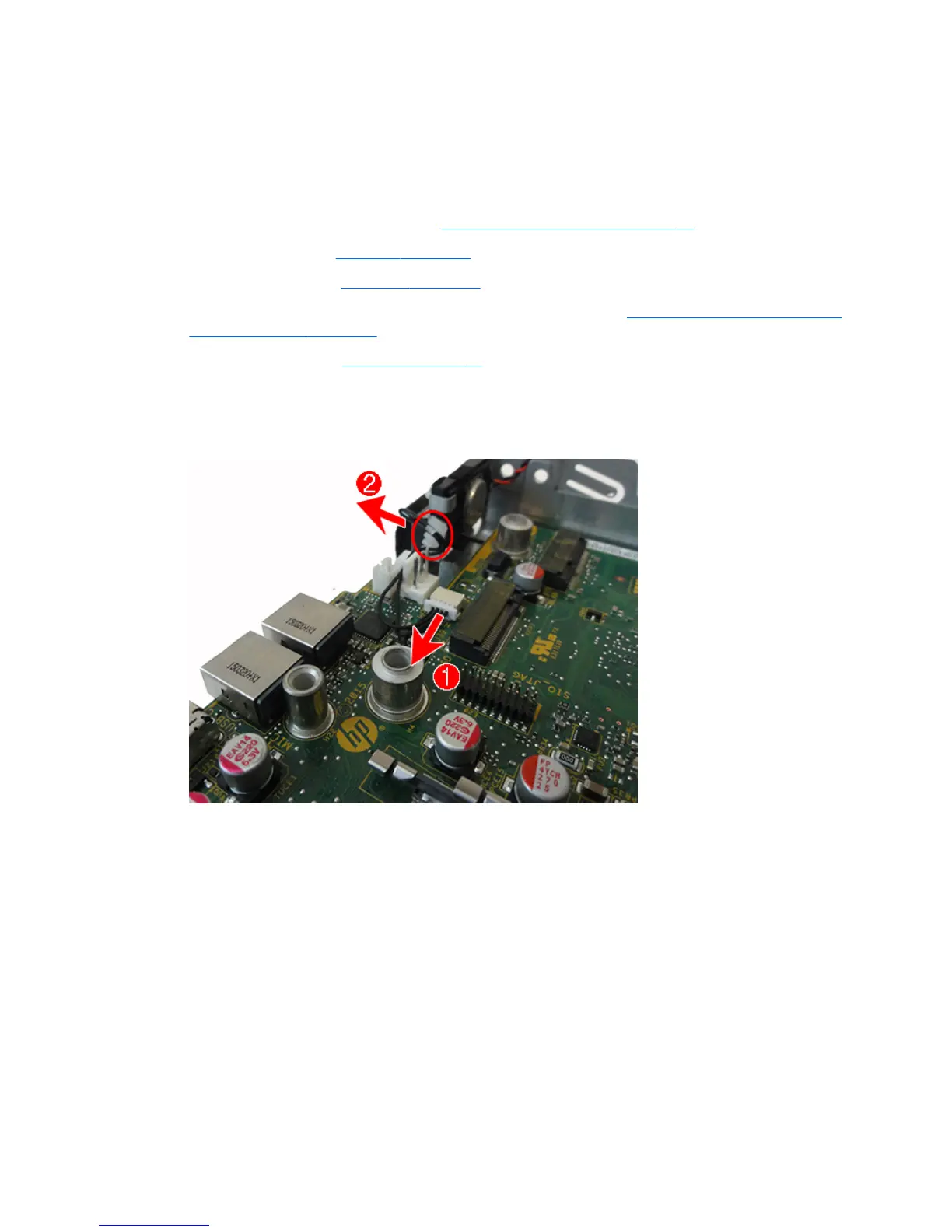

6. Disconnect the thermal module from the system board (1).
7. Pull to disengage the sensor to the computer chassis (2). The sensor is secured to the chassis with
adhesive.
To install the thermal sensor, reverse the removal procedures.
36 Chapter 4 Removal and replacement procedures – desktop mini (DM) chassis

HP EliteDesk 800 G2 Desktop Mini Specifications

General

Chipset	Intel Q170
Graphics	Intel HD Graphics 530
Form Factor	Mini PC
CPU Options	Intel Core i7-6700T, Intel Core i5-6500T, Intel Core i3-6100T
RAM	DDR4-2133 MHz
Memory Capacity	Up to 32 GB
Storage	SATA HDD/SSD, M.2 SSD
Storage Options	500GB HDD, 1TB HDD, 128GB SSD, 256GB SSD, 512GB SSD
Operating System	Windows 10 Pro
OS Options	Windows 10 Pro 64, Windows 10 Home 64, FreeDOS 2.0
Ports	1 x RJ-45, 2 x DisplayPort, 1 x VGA, 1 x headphone/microphone combo
Wireless	Intel Dual Band Wireless-AC 8260, Bluetooth 4.2
Dimensions	17.7 x 17.5 x 3.4 cm
Weight	1.3 kg
Processor	Intel Core i5-6500
