Battery tray removal
5. Maintenance
A
B
C
D
E
• To ensure safety and high performance, only use batteries supplied by HPE.
• Take care to firmly press together the two parts of the connector during remounting.
Installing the new battery module
Perform the removal instructions in reverse order.
Ordering Spares
To order a spare, visit the HPE website (http://www.HPE.com/buy/parts).
To replace parts under warranty, contact an HPE authorized service representative.
UPS spare parts list
Item Spare Part Number
SPS-UPS R1500 G4 NA
796754-001
SPS-UPS R1500 G4 JP/TWN
796755-001
SPS-UPS R1500 G4 INTL
796756-001
SPS-BATTERY KIT UPS R1500
796776-001

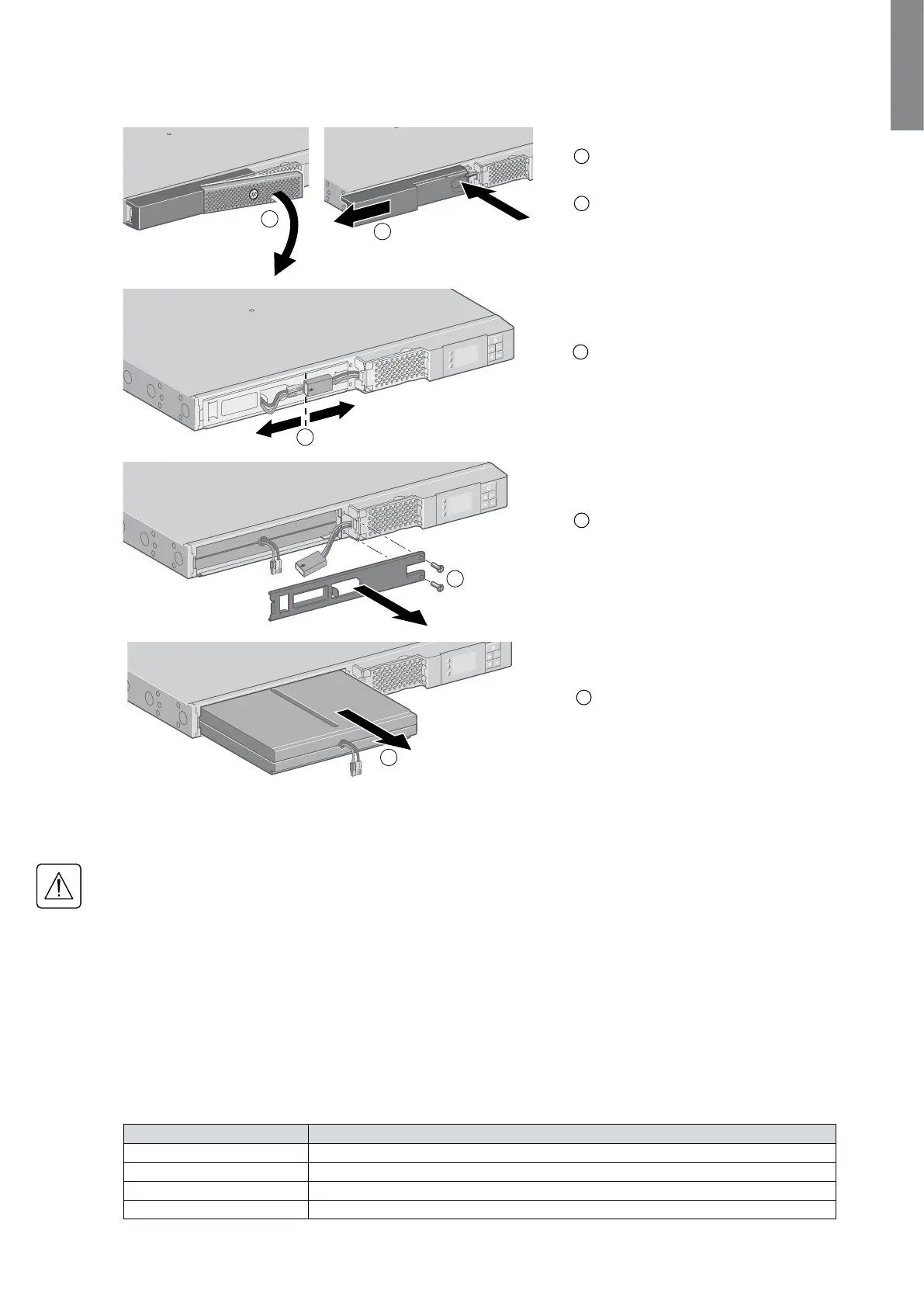

5.4 Spares
Disconnect the battery-mod-
ule by separating the connectors.
Never pull on the wires.
Remove the metal protec-
tion cover in front of the bat-
tery (two screws).
Remove the middle panel.
Unlock the pushbutton.
Slide the left-hand side of the
bezel to the left.
Pull the plastic tab to remove the
battery block and replace the block.
A
B
C
D
E
