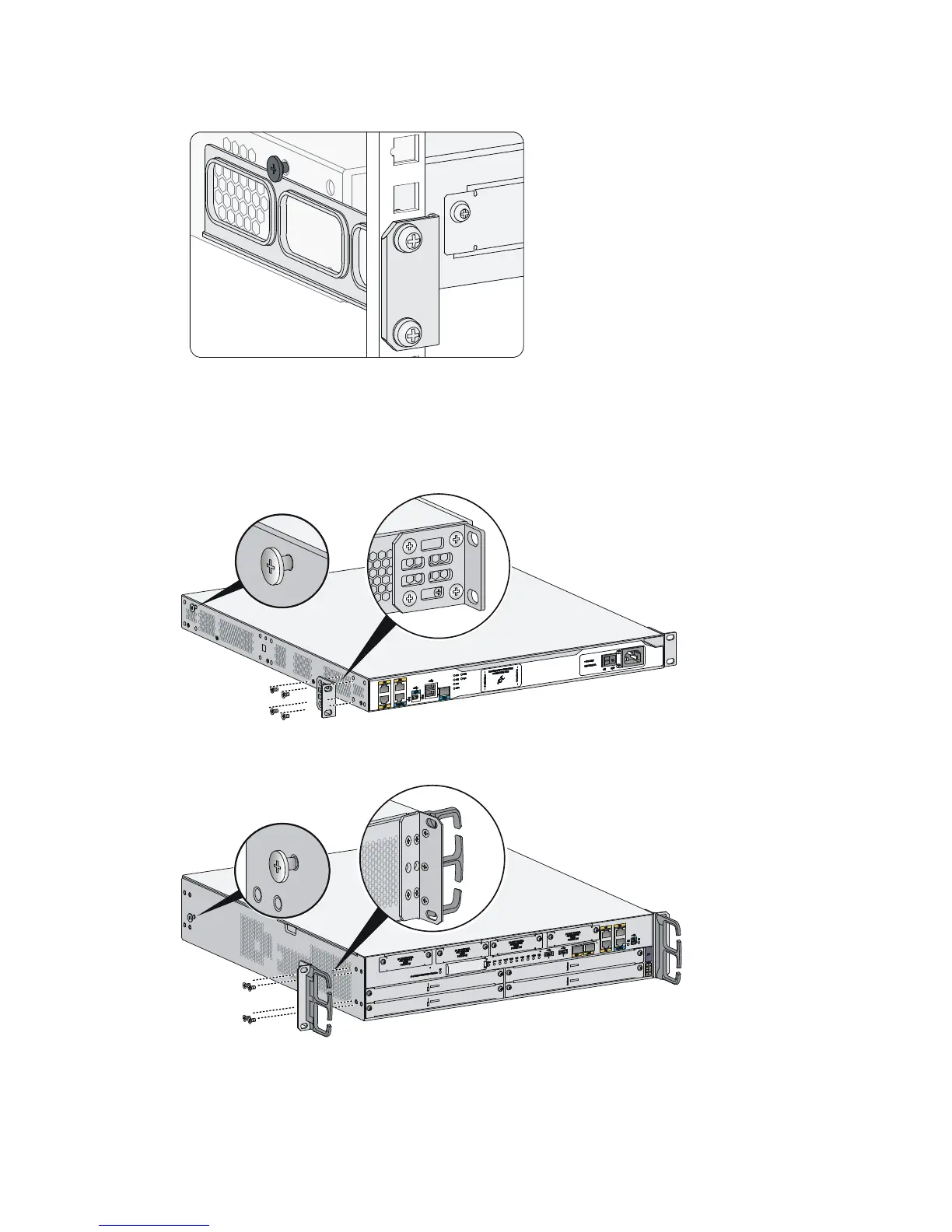

Figure 16 Attaching the rear mounting brackets (router depth smaller than rack depth)
6. Attach the front mounting brackets to the chassis and fasten the screws.
7. Attach load-bearing screws to the rear of the chassis.
Figure 17 Attaching the front mounting brackets and load-bearing screws to the
MSR3012/3024
Figure 18 Attaching the front mounting brackets and load-bearing screws to the MSR3044
