HP FlexNetwork MSR3064

65
MSR3064

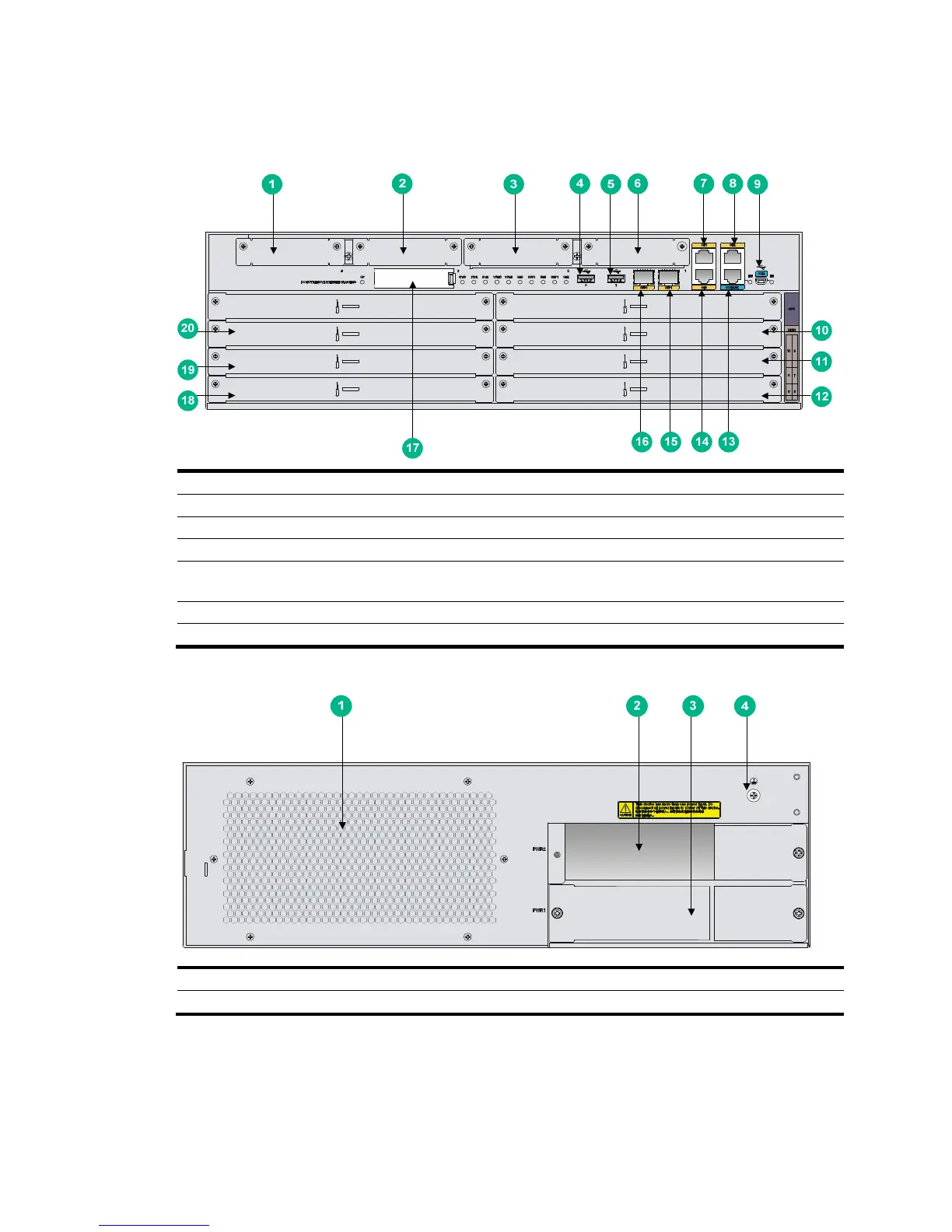

Figure 92 MSR3064 front view
(1) SIC slot (slot 4) (2)SIC slot (slot 3) (3) SIC slot (slot 2)
(4) USB port 0 (5) USB port 1 (6) SIC slot (slot 1)
(7) Gigabit Ethernet port (GE1) (8) Gigabit Ethernet port (GE2) (9) USB console port (CON)
(10) HMIM slot (slot 5) (11) HMIM slot (slot 7) (12) HMIM slot (slot 9)
(13) Console port/AUX port
(CON/AUX)
(14) Gigabit Ethernet port (GE0) (15) SFP port (SFP1)
(16) SFP port (SFP0) (17) CF card cover (18) HMIM slot (slot 6)
(19) HMIM slot (slot 8) (20) HMIM slot (slot 10)
Figure 93 MSR3064 rear view
(1) Fan ventilation panel (2) Power supply slot (PWR2) (3) Power supply slot (PWR1)
(4) Grounding terminal
Appearance of power supplies
You can install one power supply, or two power supplies for redundancy.
