HP FlexNetwork MSR3064

62
MSR3024 DC

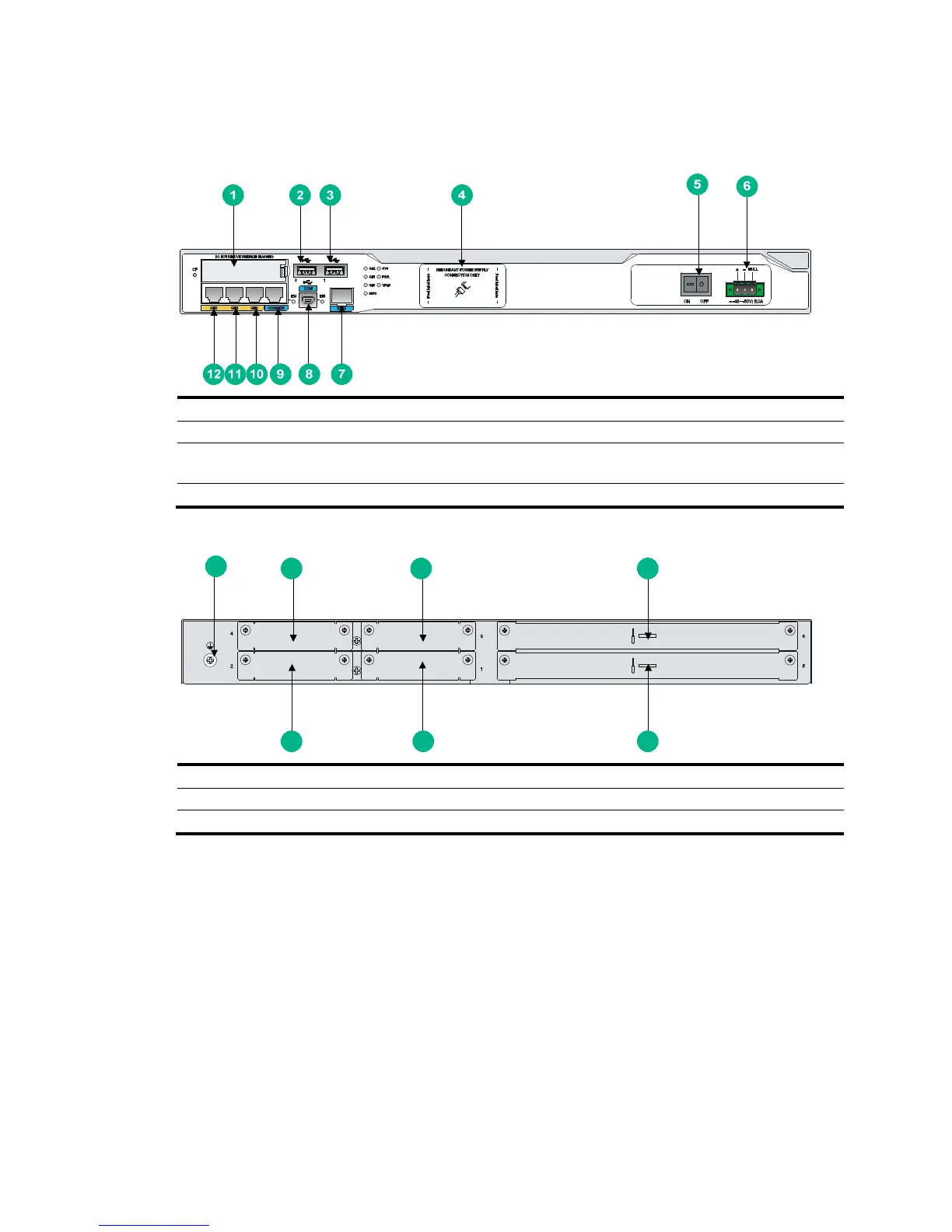

Figure 86 MSR3024 DC front view
(1) CF card cover (2) USB port 0 (3) USB port 1
(4) RPS receptacle cover (5) Power switch (6) DC-input power receptacle
(7) SFP port (SFP0) (8) USB console port (CON) (9) Console port/AUX port
(CON/AUX)
(10) Gigabit Ethernet port (GE2) (11) Gigabit Ethernet port (GE1) (12) Gigabit Ethernet port (GE0)
Figure 87 MSR3024 DC rear view
(1) Grounding terminal (2)SIC slot (slot 4) (3) SIC slot (slot 3)
(4) HMIM slot (slot 6) (5) HMIM slot (slot 5) (6) SIC slot (slot 1)
(7) SIC slot (slot 2)
5
2
1
3 4
7 6
