MSR3012 AC (JG409B)

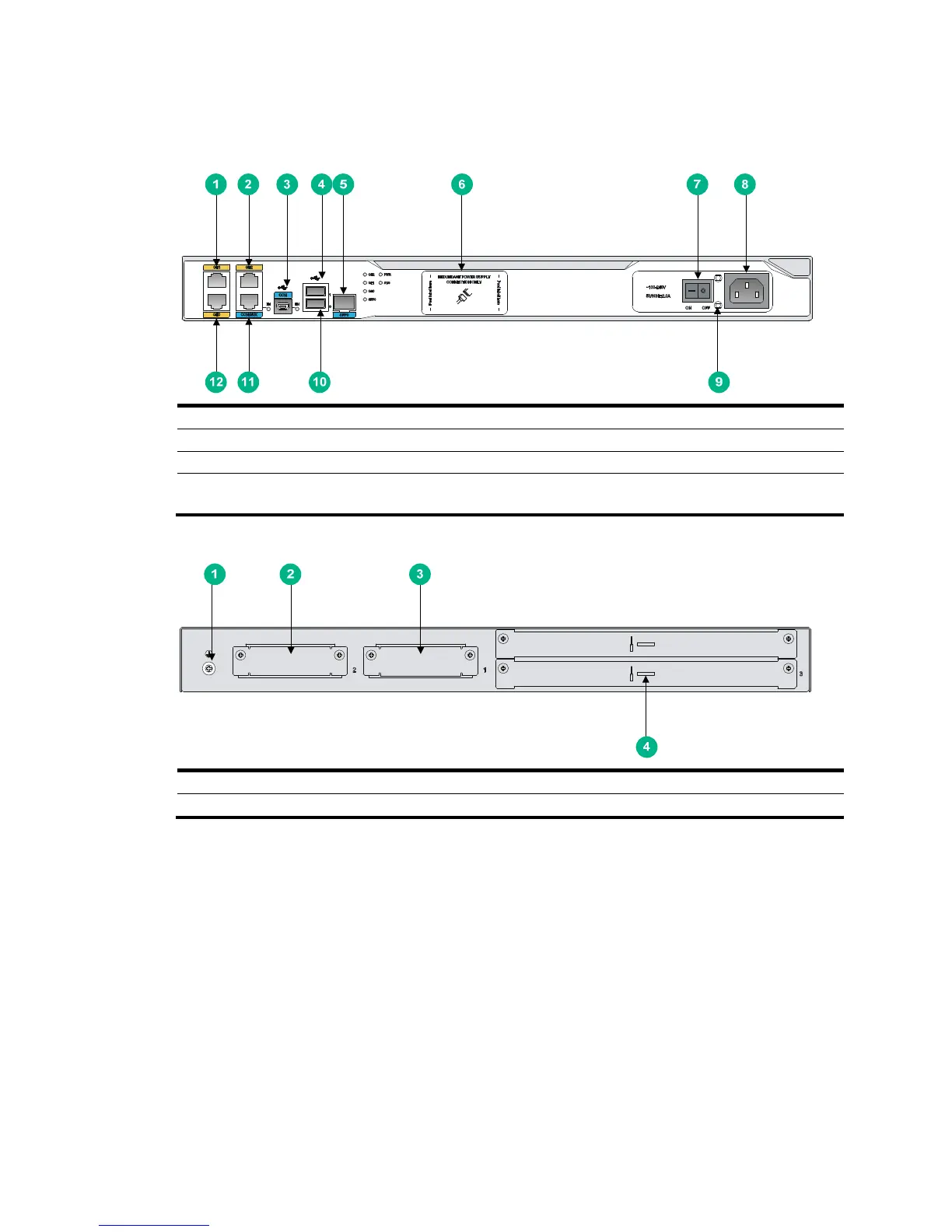

Figure 80 MSR3012 AC (JG409B) front view
(1) Gigabit Ethernet port (GE1) (2) Gigabit Ethernet port (GE2) (3) USB console port (CON)
(4) USB port 1 (5) SFP interface (SFP0) (6) RPS receptacle cover
(7) Power switch (8) AC-input power receptacle (9) Power cord bail latch
(10) USB port 0 (11) Console port/AUX port
(CON/AUX)
(12) Gigabit Ethernet port (GE0)
Figure 81 MSR3012 AC (JG409B) rear view
(1) Grounding terminal (2) SIC slot (slot 2) (3) SIC slot (slot 1)
(4) HMIM slot (slot 3)
