MSR3024 AC

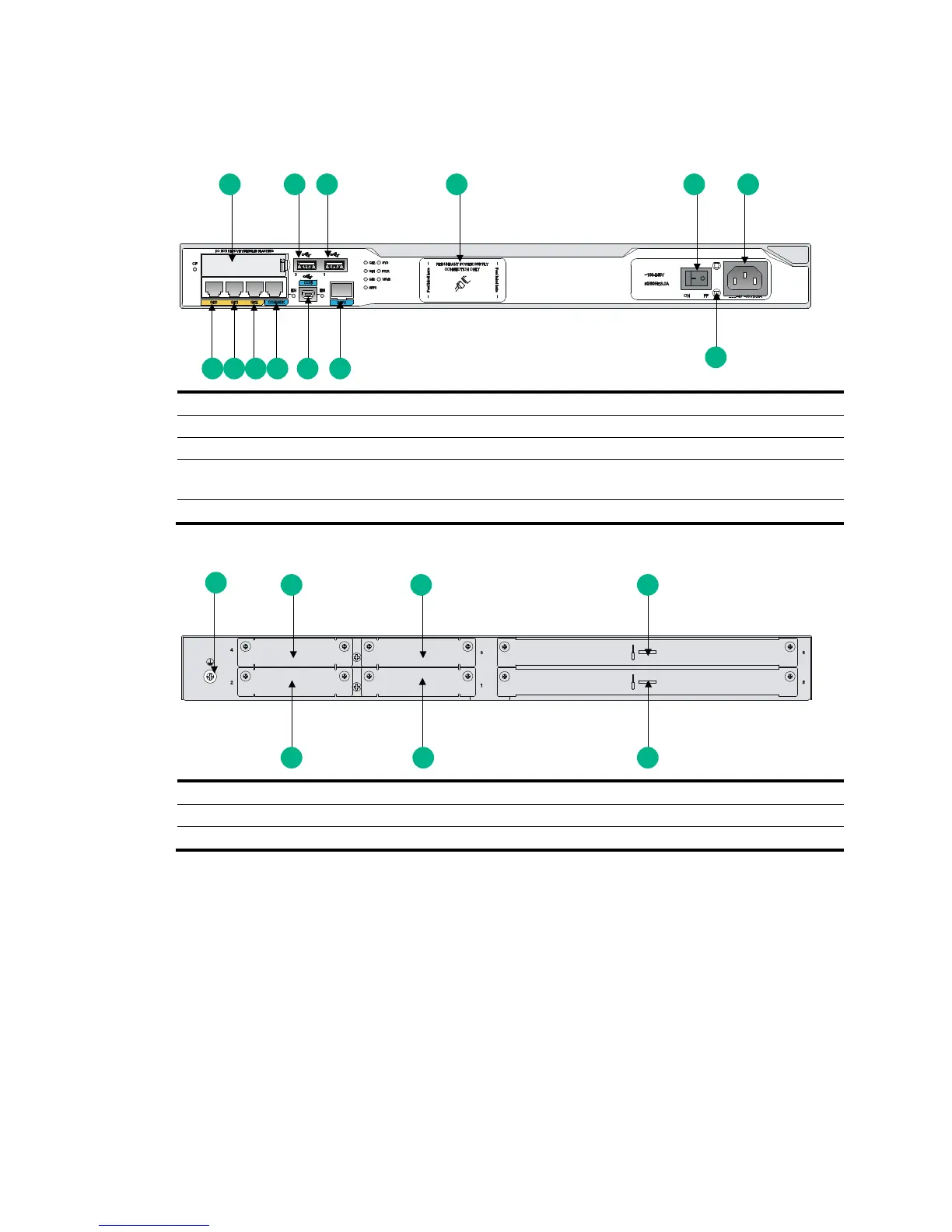

Figure 84 MSR3024 AC front view
(1) CF card cover (2) USB port 0 (3) USB port 1
(4) RPS receptacle cover (5) Power switch (6) AC-input power receptacle
(7) Power cord bail latch (8) SFP port (SFP0) (9) USB console port (CON)
(10) Console port/AUX port
(CON/AUX)
(11) Gigabit Ethernet port (GE2) (12) Gigabit Ethernet port (GE1)
(13) Gigabit Ethernet port (GE0)
Figure 85 MSR3024 AC rear view
(1) Grounding terminal (2) SIC slot (slot 4) (3) SIC slot (slot 3)
(4) HMIM slot (slot 6) (5) HMIM slot (slot 5) (6) SIC slot (slot 1)
(7) SIC slot (slot 2)
