28
5. Examine the Ethernet port LED after connection. For more information, see "Appendix B
LEDs."

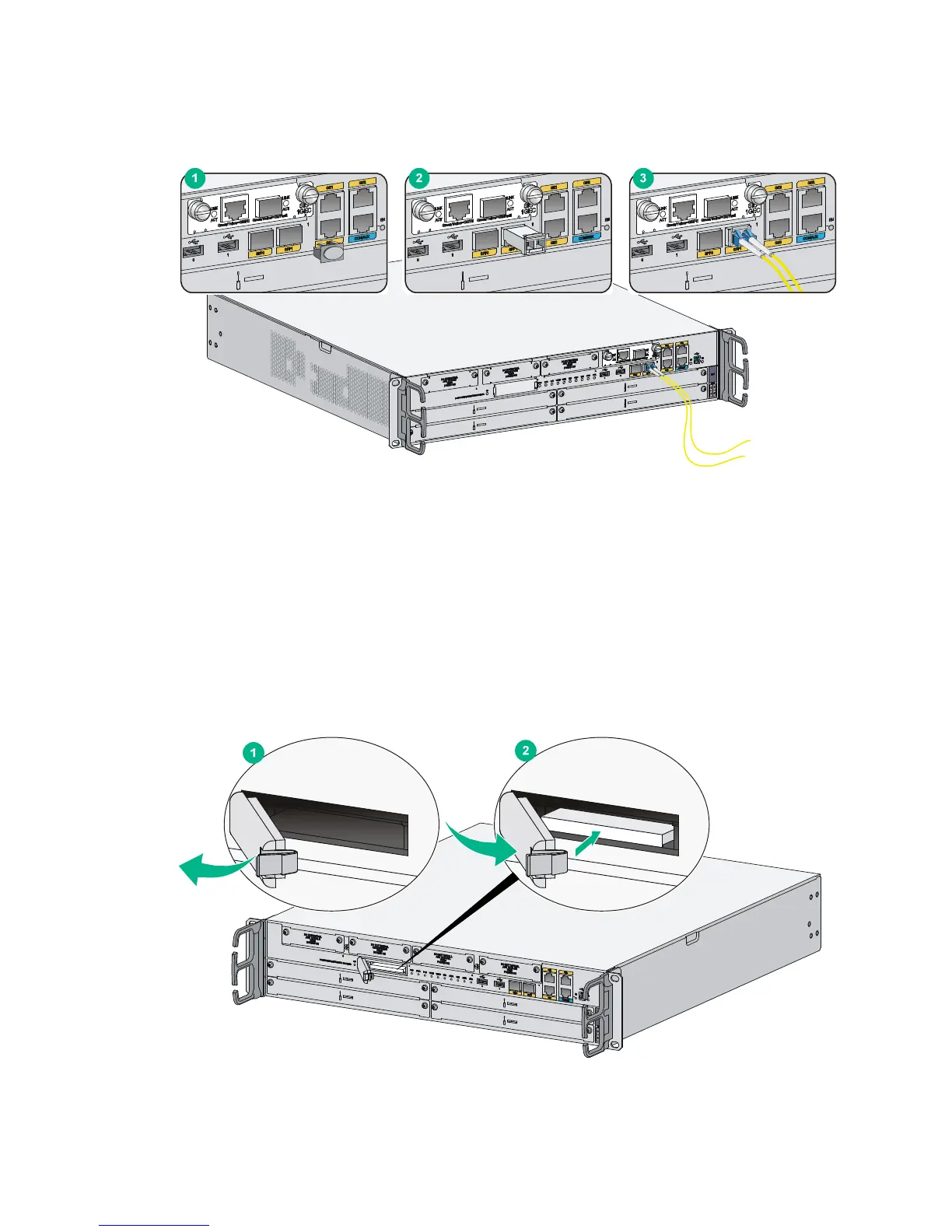

Figure 34 Connecting an optical fiber
Installing a CF card
1. Open the CF card cover by pressing the spring clip.
2. Push the CF card eject button all the way into the slot, and make sure the button does not
project from the panel.
3. Insert the CF card into the slot following the direction shown in Figure 35, and make sure it does
not proje
ct from the slot.
4. Close the CF card cover.
Figure 35 Installing a CF card
