Appendix B LEDs
Panel LEDs
MSR3012

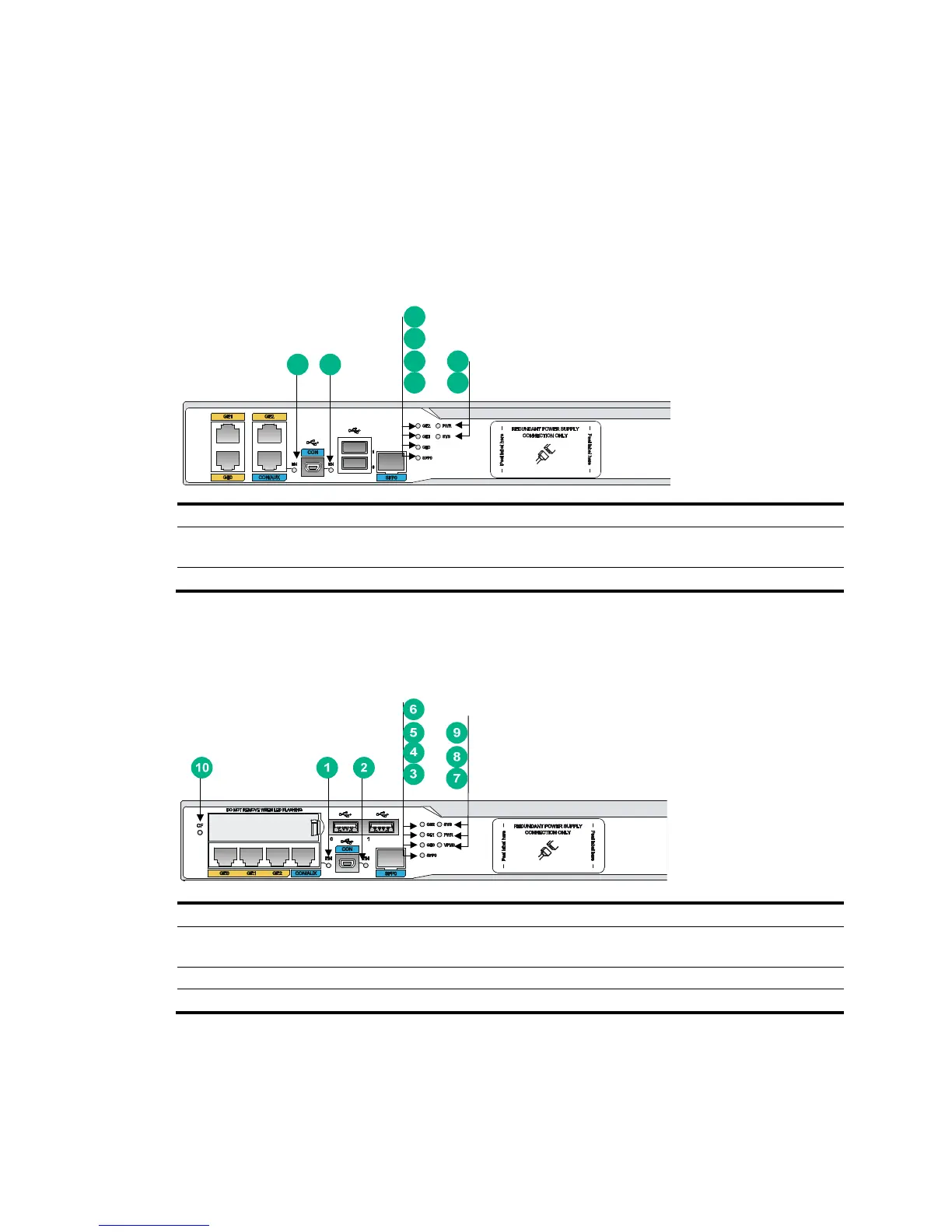

Figure 97 MSR3012 LEDs
(1) Console port LED (2) USB console port LED (3) SFP port LED (SFP0)
(4) Gigabit Ethernet port LED (GE0) (5) Gigabit Ethernet port LED
(GE1)
(6) Gigabit Ethernet port LED
(GE2)
(7) System LED (SYS) (8) Power supply LED (PWR)
MSR3024
Figure 98 MSR3024 LEDs
(1) Console port LED (2) USB console port LED (3) SFP port LED(SFP0)
(4) Gigabit Ethernet port LED
(GE0)
(5) Gigabit Ethernet port LED
(GE1)
(6) Gigabit Ethernet port LED
(GE2)
(7) Power supply LED (PWR) (8) System LED (SYS) (9) CF card LED
(10) VPM (slot 0) LED (VPM0)
1 2
3
8
7
6
5
4
