HP FlexNetwork MSR3064

60
MSR3012 DC

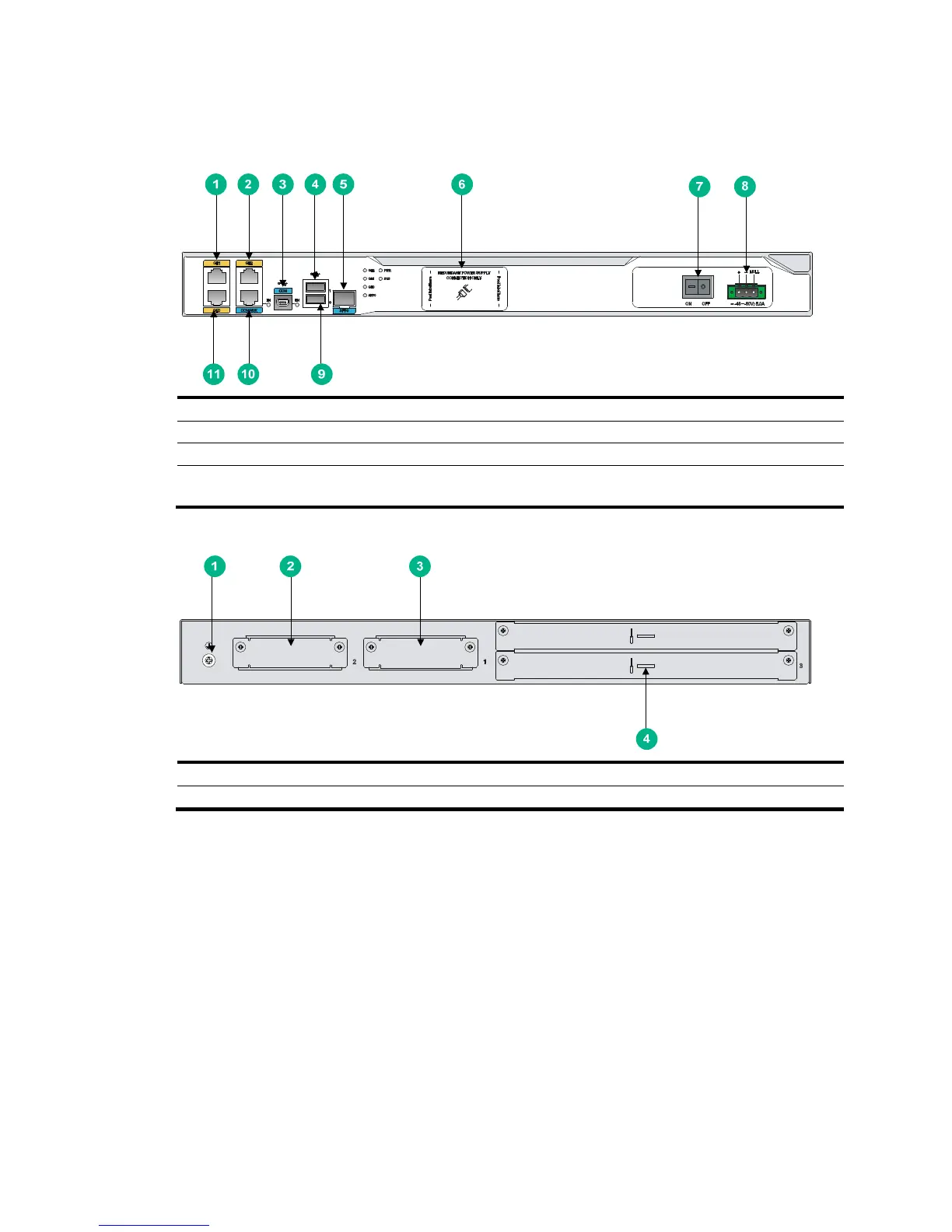

Figure 82 MSR3012 DC front view
(1) Gigabit Ethernet port (GE1) (2) Gigabit Ethernet port (GE2) (3) USB console port (CON)
(4) USB port 1 (5) SFP interface (SFP0) (6) RPS receptacle cover
(7) Power switch (8) DC-input power receptacle (9) USB port 0
(10) Console port/AUX port
(CON/AUX)
(11) Gigabit Ethernet port (GE0)
Figure 83 MSR3012 DC rear view
(1) Grounding terminal (2) SIC slot (slot 2) (3) SIC slot (slot 1)
(4) HMIM slot (slot 3)
