HP FlexNetwork MSR3064

24

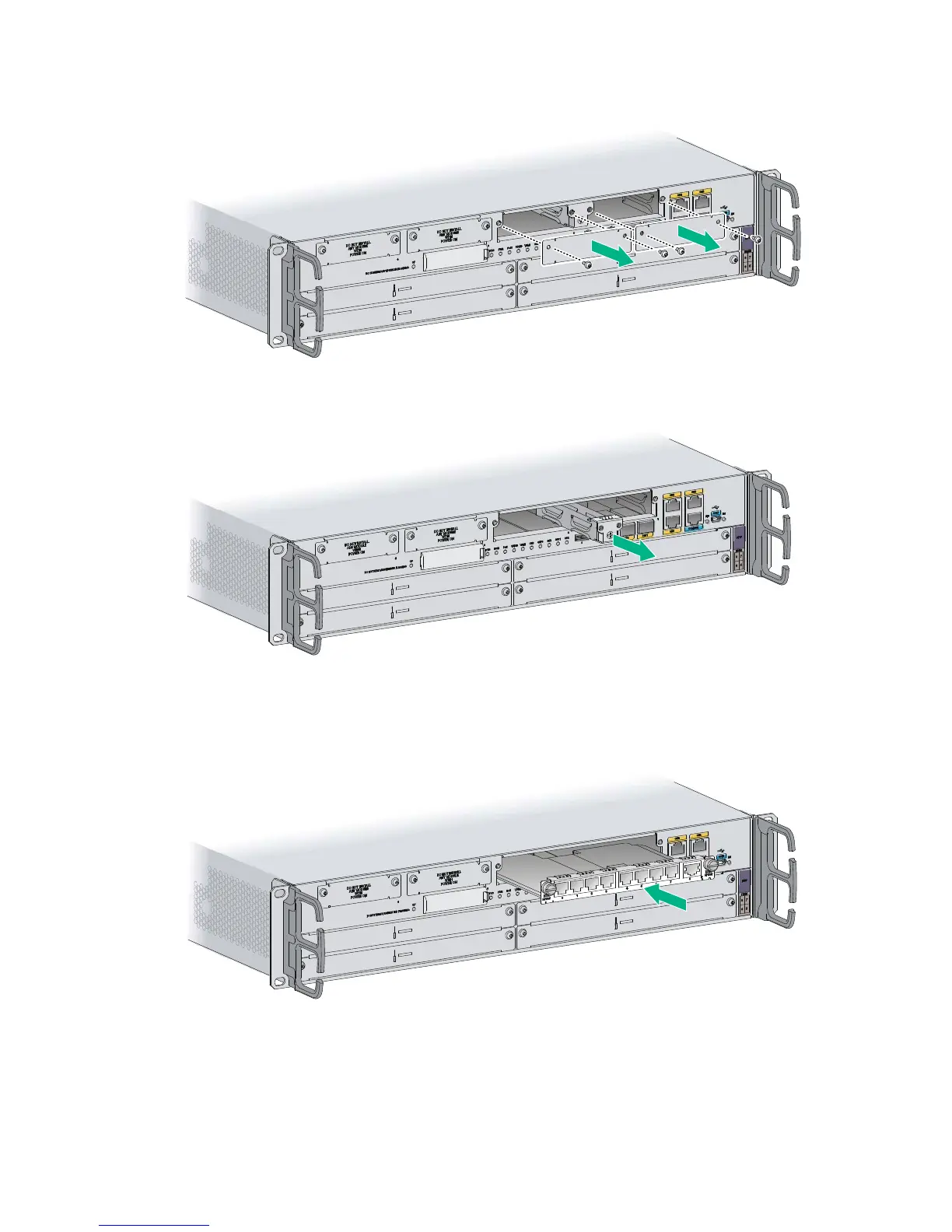

Figure 26 Removing the filler panel
Figure 27 Removing the slot divider
3. Insert the DSIC into the slot and push it along the slide rails until it makes close contact with the
backplane of the router.
Figure 28 Installing a DSIC
4. Fasten the captive screws to secure the DSIC.
