HP G3 KVM

Local port operation 27

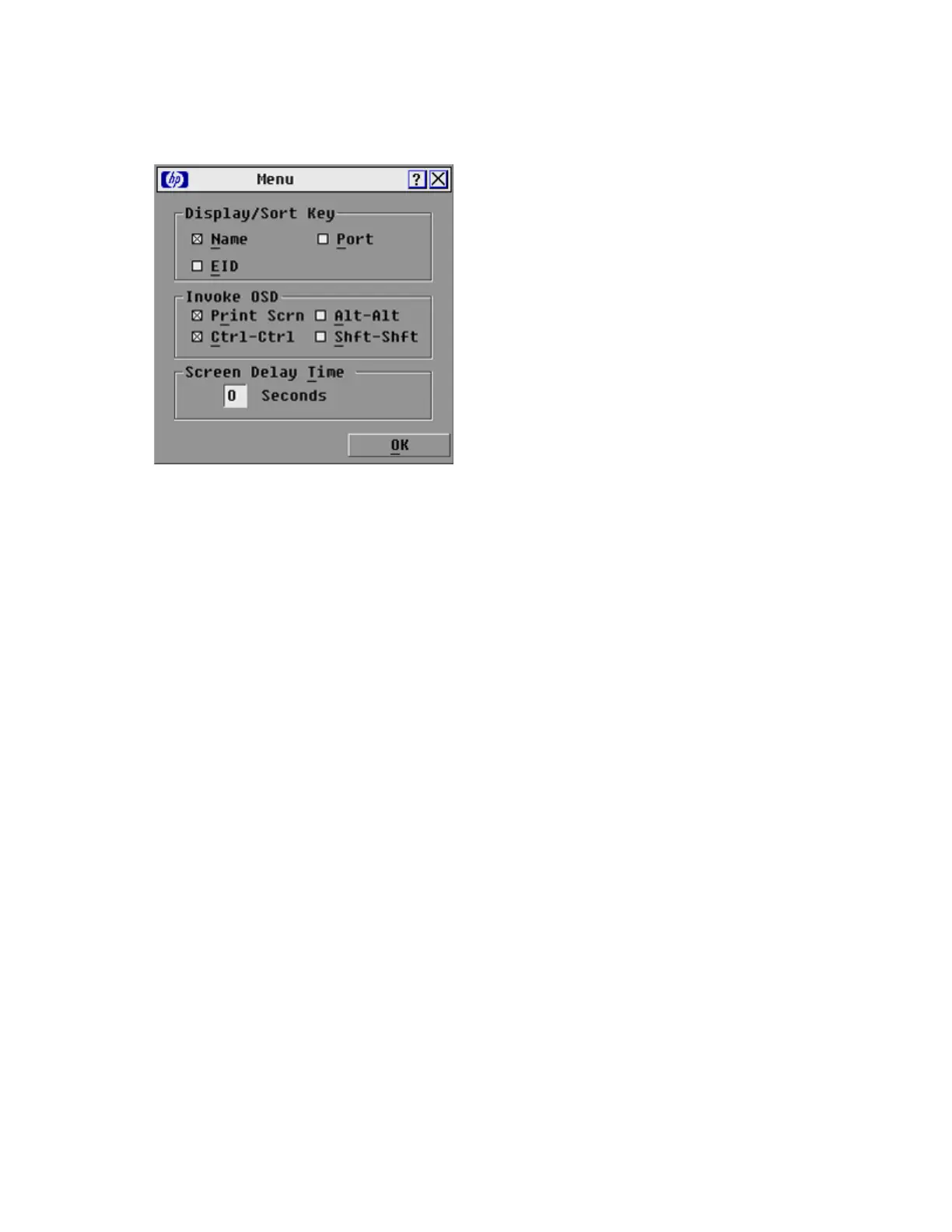

Accessing the Menu dialog box
To access the Menu dialog from the Main dialog box ("Accessing the Main dialog box" on page 22), click
Setup>Menu. The Menu dialog box appears.
Selecting the display order of servers
1. From the Menu dialog box ("Accessing the Menu dialog box" on page 27), select Name to display
servers alphabetically by name.
-or-
Select EID to display servers numerically by interface adapter ID number.
-or-
Select Port to display servers numerically by port number.
2. Click OK to save settings.
-or-
Click X to exit, or press the Esc key to exit without saving settings.
Selecting and setting the OSD hot key command
1. Select the desired hot key sequence.
Clearing all boxes leaves the Print Screen as the default option.
2. Choose one of the following options:
o Click OK to save settings
o Click X or press the Esc key to exit without saving settings.
Setting a screen delay time
Setting a time to delay the display of the OSD enables you to complete a soft switch ("Soft switching" on
page 24) without displaying the OSD. It is strongly recommended to leave the number of seconds (0-9)
the OSD is delayed to the default (0).
1. From the Main dialog box ("Accessing the Main dialog box" on page 22), enter the number of
seconds (0–9) the OSD is delayed after pressing the Print Scrn key. Entering 0 instantly displays
the OSD with no delay.
2. Click OK to save settings.
