Local port operation 33
Assigning device types
While the KVM Console Switch automatically discovers cascaded Server Console Switches attached to
the unit, you must specify the number of ports on the cascaded Server Console Switch through the
Devices dialog box ("Accessing Devices dialog box" on page 33).

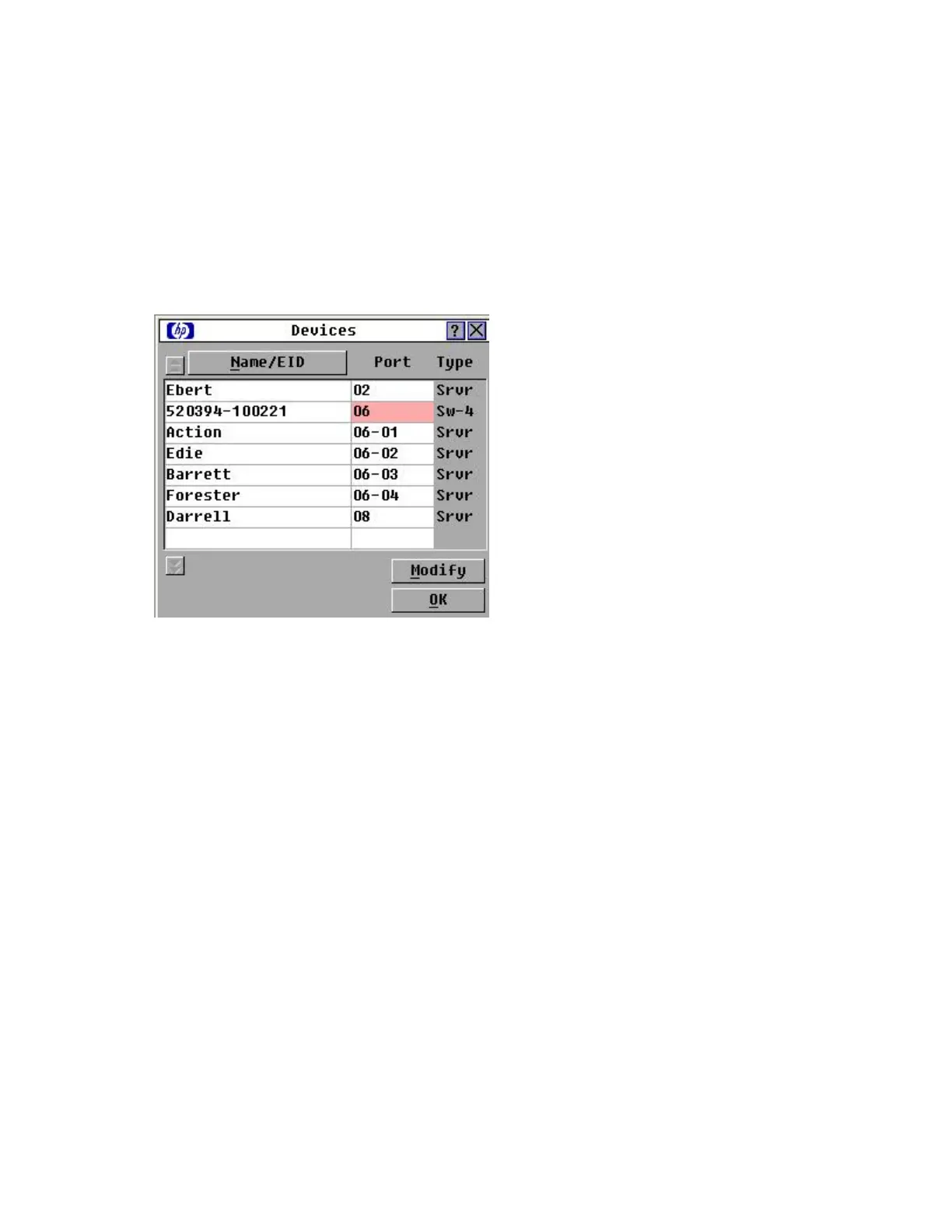

Accessing Devices dialog box
From the Main dialog box ("Accessing the Main dialog box" on page 22), click Setup>Devices. The
Devices dialog box appears.
The Modify button is only available when a configurable Server Console Switch is selected.
When the KVM Console Switch discovers a cascaded KVM Console Switch, the port numbering changes
automatically to accommodate each server. For example, if the KVM Console Switch is connected to port
02, the switch port is listed as 02, and each server under it is numbered sequentially 02-01, 02-02, and so
on.
However, when a KVM Console Switch discovers a cascaded Server Console Switch, select the number
of ports on the Server Console Switch through the Device Modify dialog box.
Modifying device types
To modify the device types:
1. From the Devices dialog box ("Accessing Devices dialog box" on page 33), select the Port number.
