HP G3 KVM

Local port operation 34

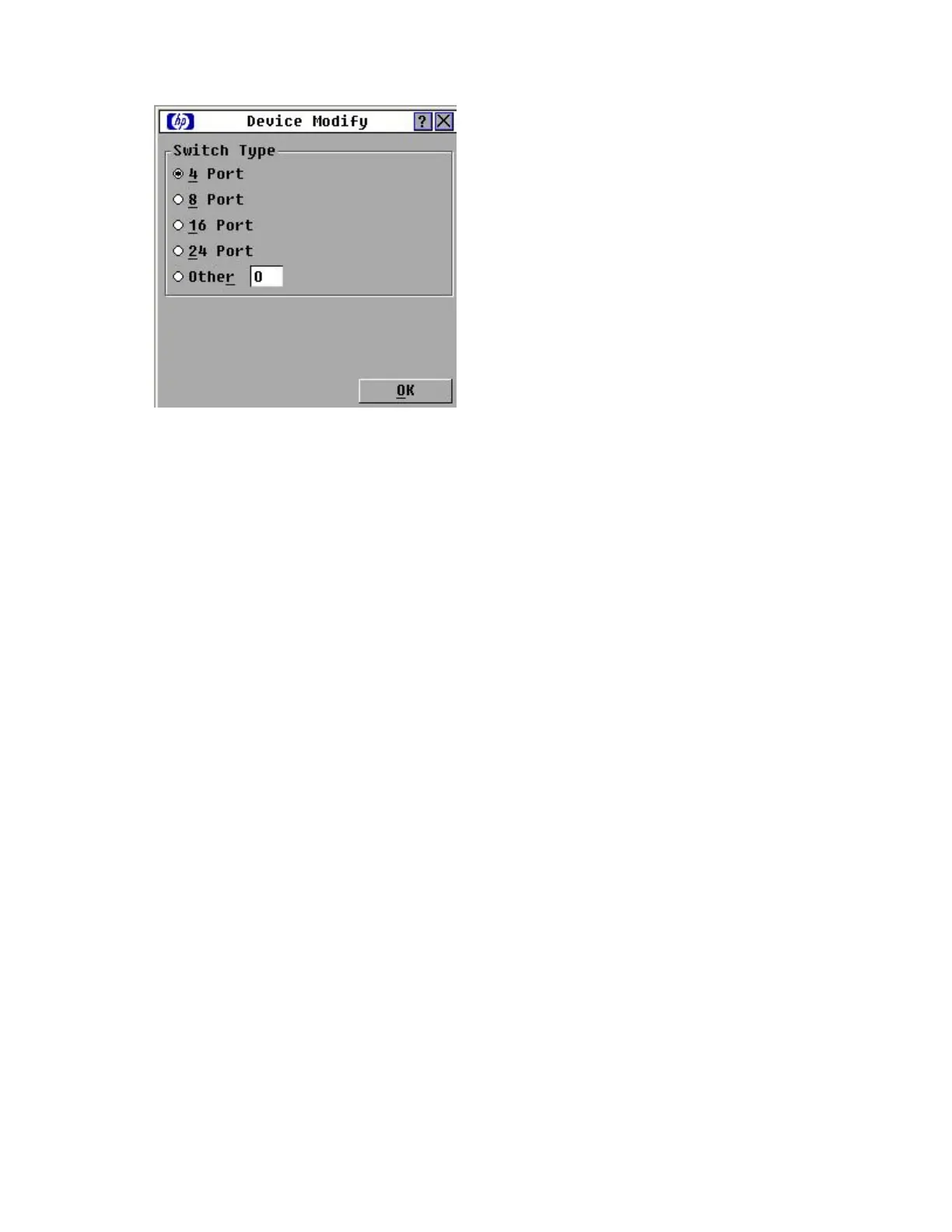

2. Click Modify. The Device Modify dialog box appears.
3. Select the number of ports supported by the cascaded Server Console Switch. If the number of ports
on the tiered switch is not listed, click Other, and then enter a port number between 4 and 24.
4. Click OK.
5. Repeat the previous steps for each port the user wants to assign a device type.
6. Choose one of the following options:
o Click OK in the Devices dialog box to save settings.
o Click X to exit, or press the Esc key to exit without saving settings.
Changes made in the Device Modify dialog box are not saved until you click OK in the Devices dialog
box.
Assigning server names
Use the Names dialog box ("Accessing the Names dialog box" on page 34) to identify individual servers or
serially managed devices by name rather than by port number. The Names list is always sorted by port
order, and the names are stored in the IA ("Installing the interface adapter" on page 18). If you move the
IA or server to another switch port, the HPE G3 KVM Console Switch recognizes the names and
configurations.
Accessing the Names dialog box
From the Main dialog box ("Accessing the Main dialog box" on page 22), click Setup>Names. The Names
dialog box appears.
