Local port operation 32
Displaying the status flag
1. From the Flag Setup dialog box ("Accessing Flag Setup dialog box" on page 31), select Name or EID
to determine what information appears.
2. Select Displayed to show the flag constantly, or select Timed to display the flag for only five
seconds after soft switching.
3. Select a flag color in Display Color.
4. In the Display Mode, select Opaque for a solid-color flag or Transparent to see the desktop through
the flag.

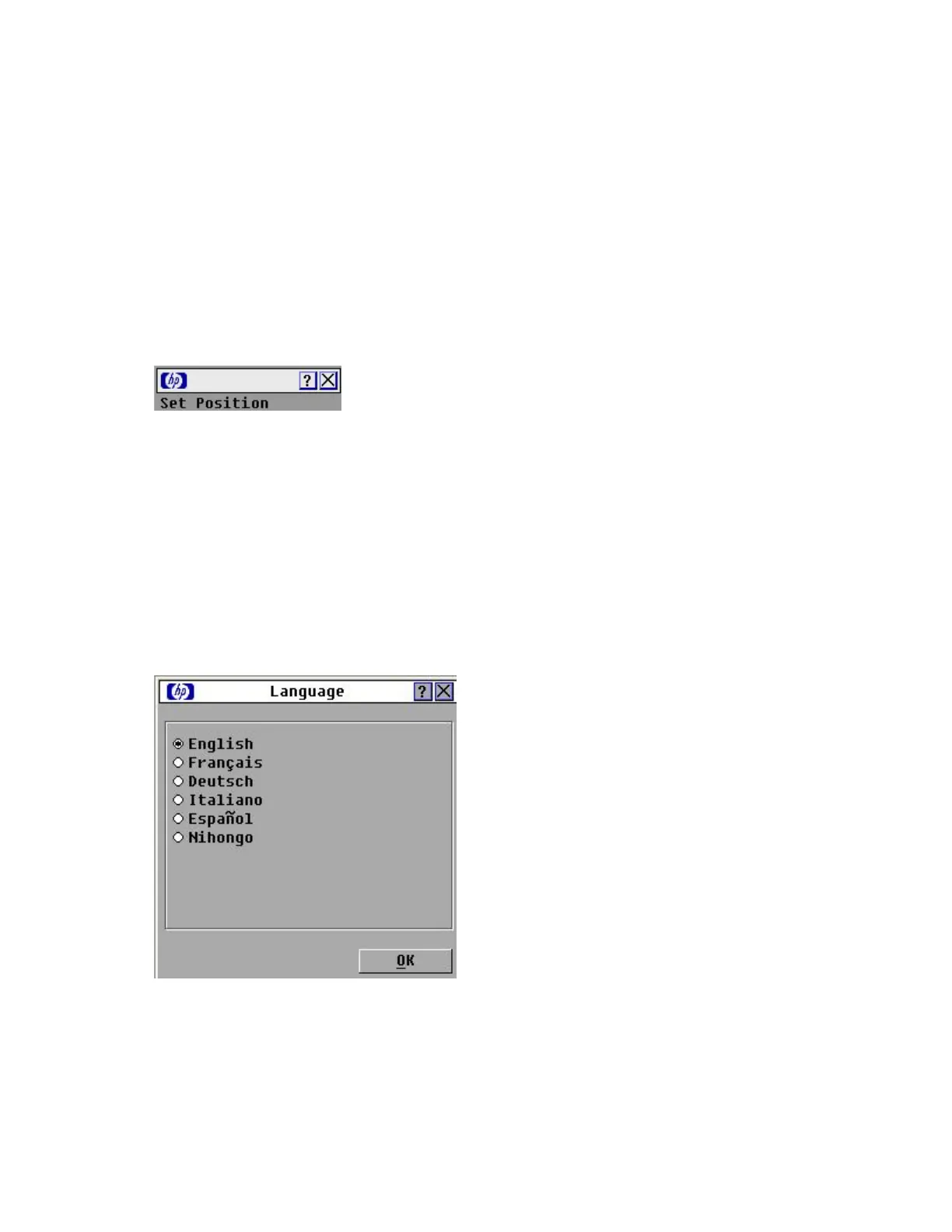

5. Position the status flag on the desktop:
a. Click Set Position to gain access to the Position Flag screen.
b. Click and hold the title bar and drag to a location.
c. Right-click to return to the Flag dialog box.
6. Choose one of the following options:
o Click OK to save settings.
o Click X to exit, or press the Esc key to exit without saving settings.
Changes made to the position flag are not saved until you click OK in the Flag Setup dialog box
("Accessing Flag Setup dialog box" on page 31).
Setting the OSD interface language
Use the Language window to configure the OSD interface languages.
1. Access the Setup ("Accessing the Setup dialog box" on page 26) window.
2. Click Language. The Language window appears.
3. Select a language.
4. Choose one of the following options:
o Click OK to change the OSD interface language and return to the Setup window.
o Click X or press the Esc key to exit without changing the keyboard language.
