Using the on-board Web interface (OBWI) 44

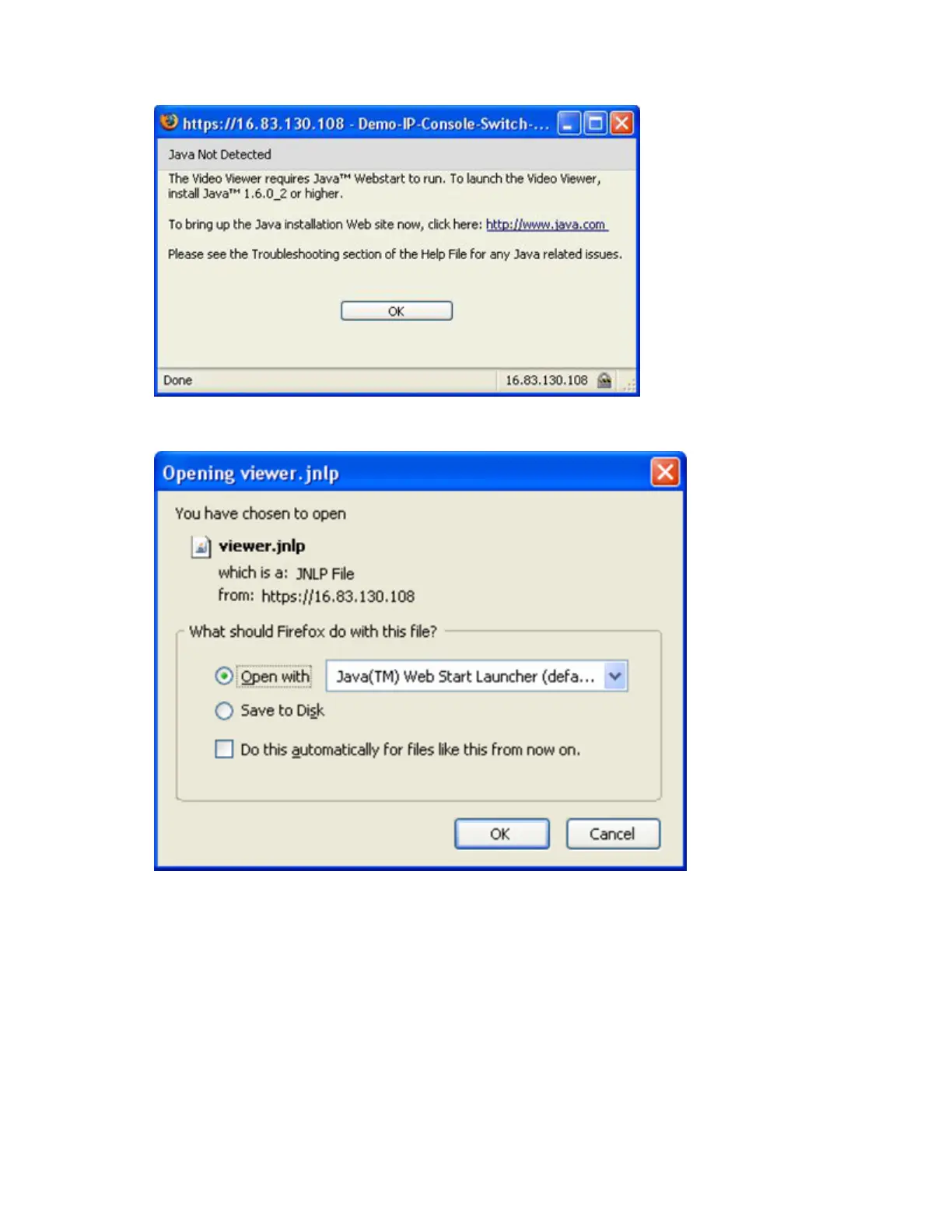

If Java is not installed, a Java Not Detected error message appears.
7. If Java is installed, the following dialog appears. Manually check the file association of the .jnlp file
with Java Web Start Launcher.
8. Click OK.
When you are logged in, launch multiple sessions of the OBWI without logging in again. However, if the
connection is inactive for a time that exceeds the inactivity timeout set by the administrator or if you log
out, log in again.
To log in to the switch OBWI from outside a firewall, repeat the procedure but enter the external IP
address of the firewall.
Connecting to the remote OBWI through a firewall
Any console switch installation that uses the remote OBWI for outside access must have four ports
opened in a firewall.
