HP HPE T750 G4 - Communication Ports; Ground Connection

792523-001 Edition 1
Page 11
ENGLISH ENGLISH
3. Installation
3.3 Communication ports

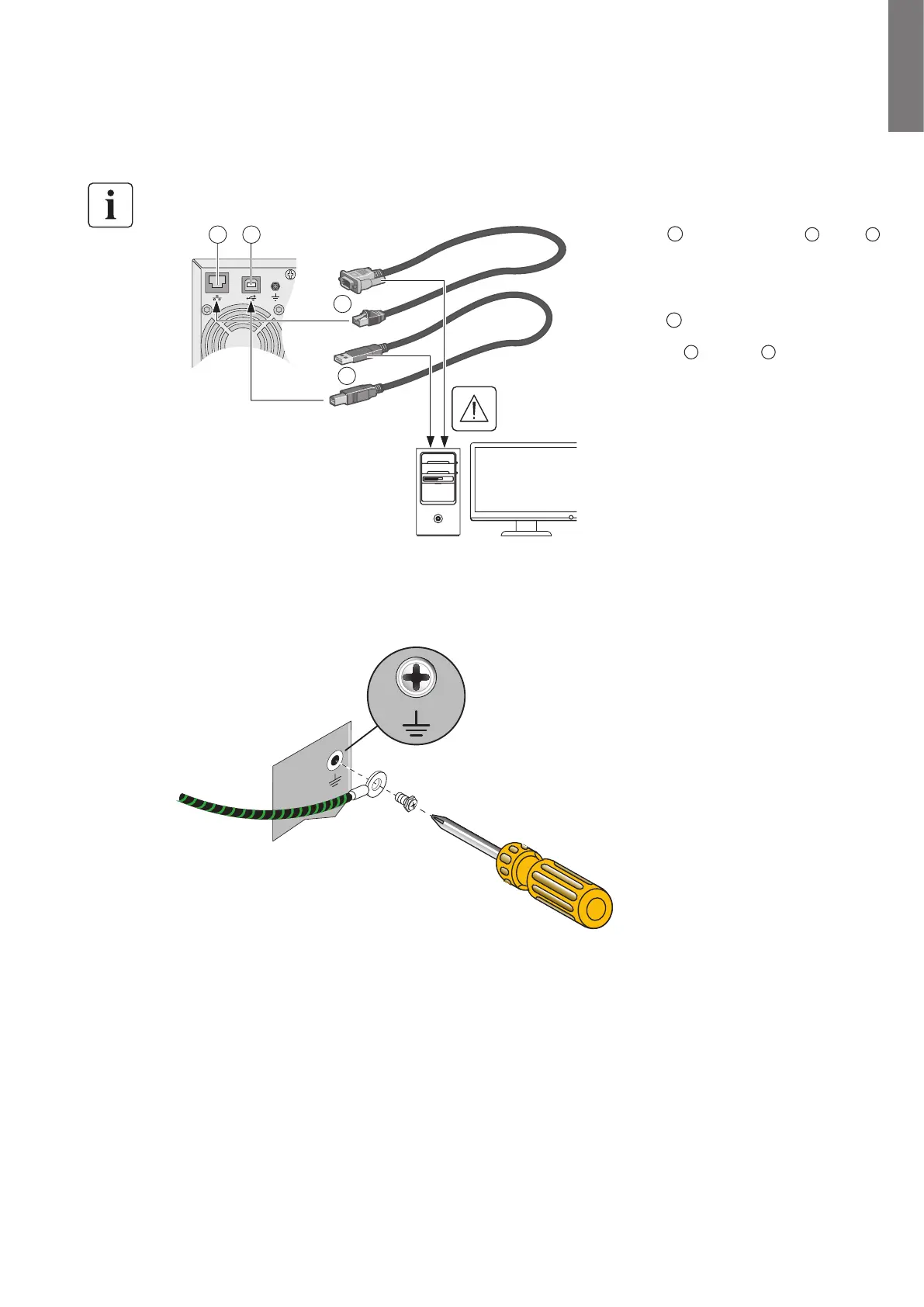

Connection of RS-232 or USB communication port
The RS-232 and USB communication ports cannot operate simultaneously.
2
1
5
6
A
Connect the RS-232
5
or USB
6
communication cable to
the serial or USB port on
the computer equipment.
Connect the other end of the
communication cable to the USB
1
or RS-232
2
communication
port on
the UPS.
The UPS can now communicate
with
HPE power management
software.
3.4 Ground connection
B
