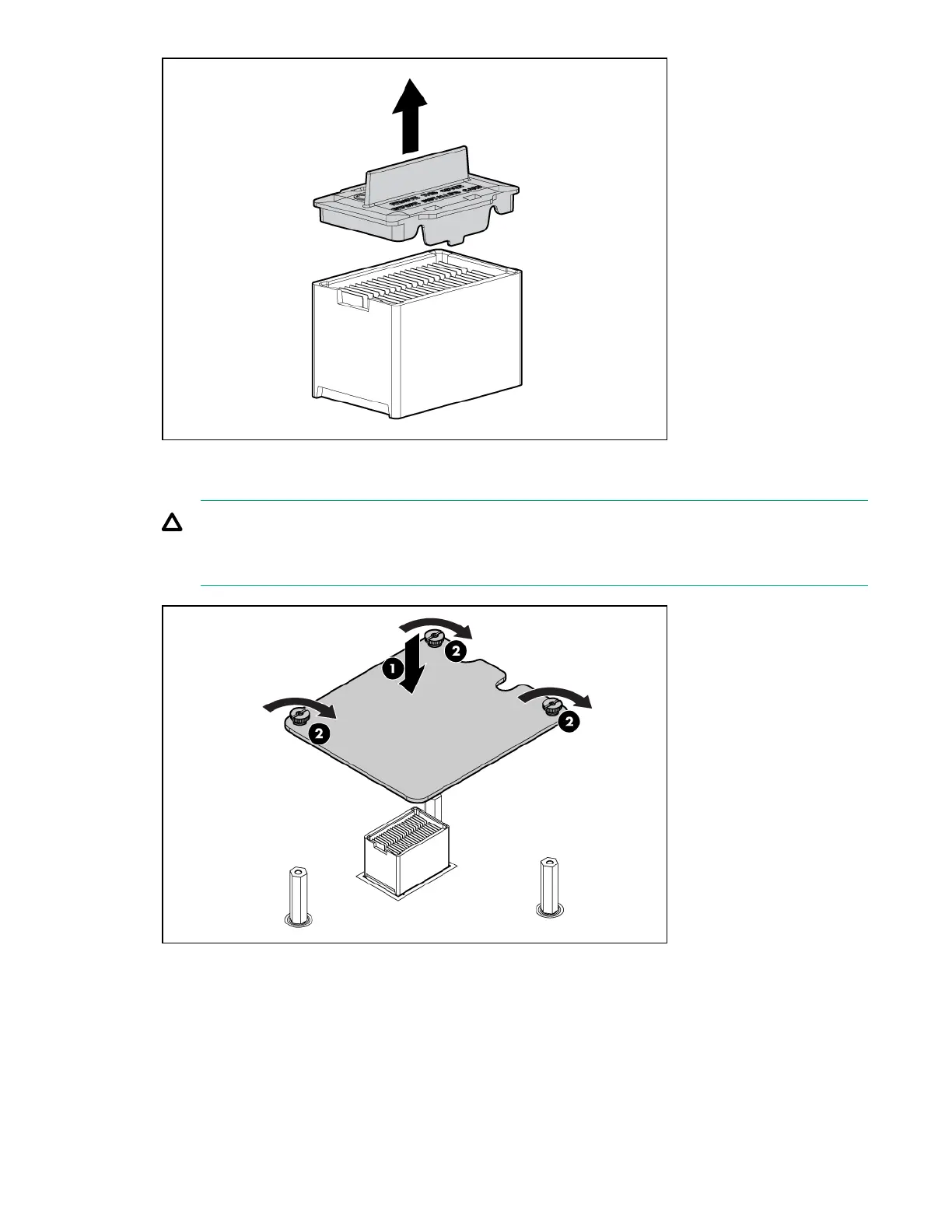

4. Align the mezzanine connector on the option card with the mezzanine connector on the system board.
5. Press down on the connector to seat the card.
CAUTION:
To prevent damage to the server blade, apply pressure over the mezzanine connector when
installing the mezzanine card. Do not apply pressure to the edges of the card.
HPE Smart Array P711m Controller
The Smart Array P711m is a PCIe card supporting direct attach and shared SAS Storage. This card is
supported in slots 1, 2, and 3 on the BL860c i4, BL870c i4, and BL890c i4 server blades.
HPE Smart Array P711m Controller 55
