HP Integrity rx8640 Installation Guide

Chapter 1
HP Integrity rx8640 and HP 9000 rp8440 Server Overview
Detailed Server Description
36
Core I/O Card
Up to two core I/O cards can be plugged into the server. Two core I/O cards enable two I/O partitions to exist
in the server. The server can have up to two partitions. When a Server Expansion Unit with two core I/O
cards is attached to the server, two additional partitions can be configured.
A core I/O card can be replaced with standby power applied. The system power to the core I/O is handled in
the hardware the same way a hot-plug PCI/PCI-X card is handled. Standby power to core I/O is handled by
power manager devices to limit inrush current during insertion.
Mass Storage (Disk) Backplane
Internal mass storage connections to disks are routed on the mass storage backplane, which has connectors
and termination logic. All hard disks are hot-plug but removable media disks are not hot-plug. The server
accommodates two internal, removable media devices. Power connectors for removable media devices are on
the mass storage backplane. For more information, refer to Figure 1-13.

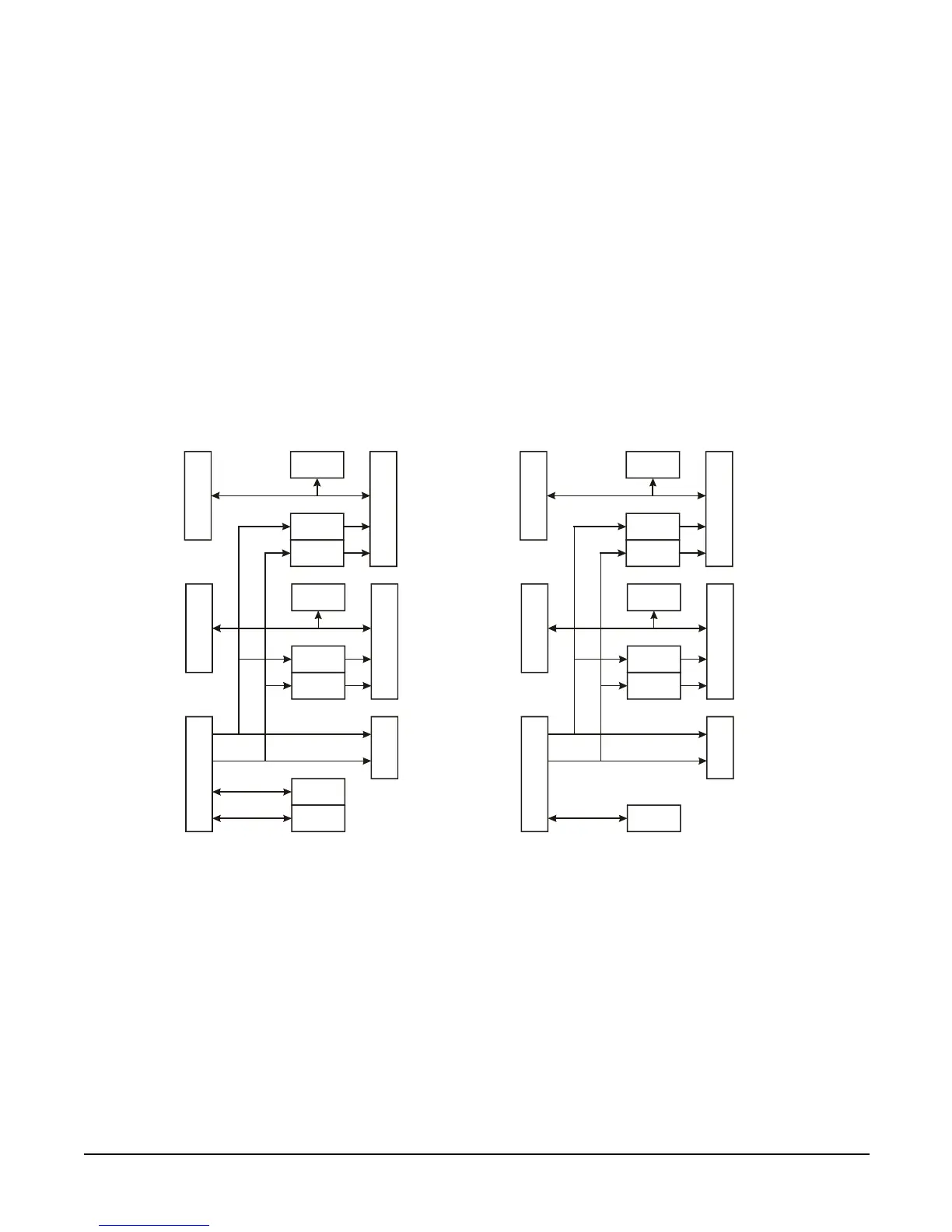

Figure 1-13 Mass Storage Block Diagram
12V PWR
MGR
12V PWR
MGR
FRU
5V PWR
MGR
5V PWR
MGR
I/O
EXPANDER
SCSI
TERM
SCSI
TERM
V12P0_1
SCSI_1-2
SCSI_1-1
HARD
DRIVE 1-1
HARD
DRIVE 1-2
DVD-1
POWER
V5P0_1
IC_FRU
2
I C_MON_1
2
J11
SCSI
J12
SCSI
J15
PWR
J13
SCA
J14
SCA
J16
DVD
PWR
12V PWR
MGR
12V PWR
MGR
5V PWR
MGR
5V PWR
MGR
I/O
EXPANDER
SCSI
TERM
SCSI
TERM
12 VDC_2
SCSI_2
SCSI_2-1
HARD
DRIVE 2-1
HARD
DRIVE 2-2
DVD-2
POWER
5 VDC_2
I C_MON_2
2
J21
SCSI
J22
SCSI
J25
PWR
J23
SCA
J24
SCA
J26
DVD
PWR
SCSI_2-2
0-1
0-2
1-1
1-2
