Chapter 2
Installing the System
Installing the Top and Side Covers
58
Step 2. Loosen the blue retaining screw securing the cover to the chassis (Figure 2-16).

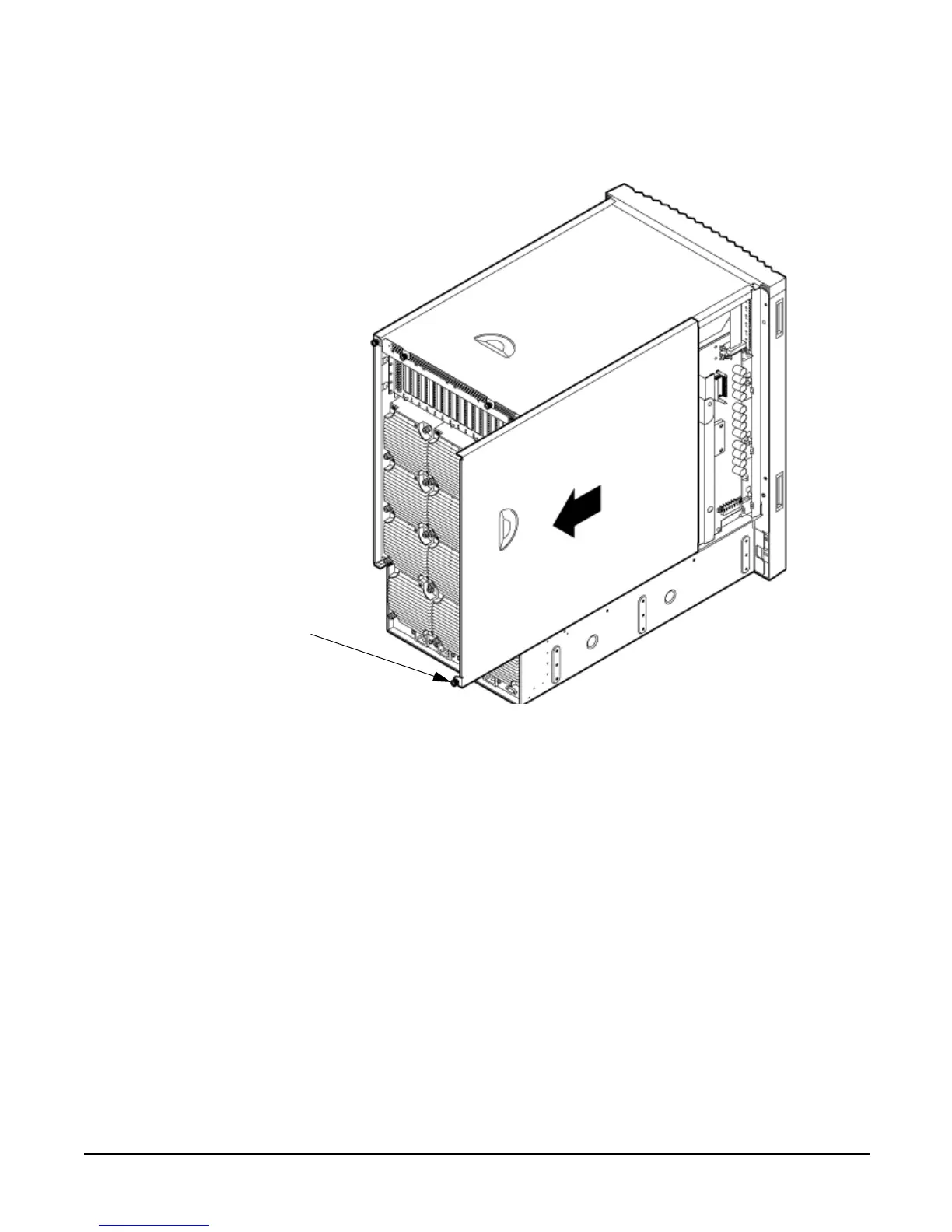

Figure 2-16 Side Cover Detail
Step 3. Slide the cover from the chassis toward the rear of the system.
Step 4. Place the cover in a safe location.
Installing the Side Cover
The following section describes the procedure for installing the side cover.
Step 1. Orient the cover according to its position on the chassis.
Step 2. Slide the cover into position using a slow, firm pressure to properly seat the cover.
Step 3. Tighten the blue retaining screw securing the cover to the chassis.
Retaining Screw
