HP J8697A User Manual

4-44
Web and MAC Authentication
Customizing Web Authentication HTML Files (Optional)
SSL Redirect Page (sslredirect.html).

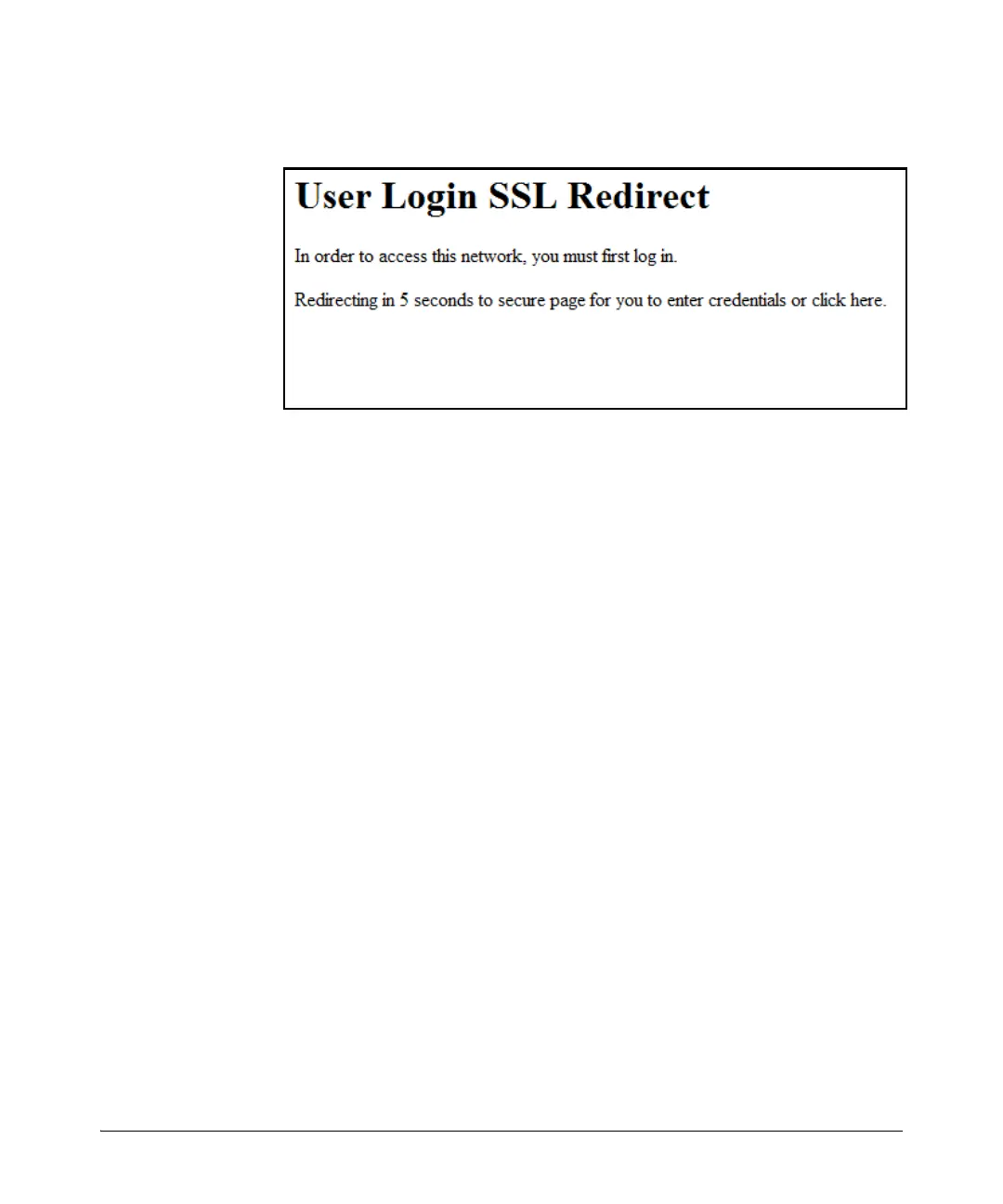

Figure 4-26. SSL Redirect Page
The sslredirect file is the web page displayed when a client is redirected to an
SSL server to enter credentials for Web Authentication. If you have enabled
SSL on the switch, you can enable secure SSL-based Web Authentication by
entering the aaa port-access web-based ssl-login command when you enable
Web Authentication.
The GETWAUTHSSLSRV ESI inserts the URL that redirects a client to an SSL-
enabled port on a server to verify the client’s username and password. This
ESI should not be modified.

HP J8697A Specifications

General

Ports	24
Form Factor	Rack-mountable
Power Supply	Internal
Management	Managed
VLAN Support	Yes
Jumbo Frame Support	Yes
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
Model	HP J8697A
Port Type	10/100/1000BASE-T
Layer	Layer 2
