Installing the Switch
Installation Procedures
Installing the Switch
Installing the Interconnect Kit
The Interconnect Kit consists of two, 1-port 10 Gigabit switch expansion modules
(J9165A) and one 0.5 meter cable used specifically for this interconnect kit. These
modules have 1 fixed CX4 port each. The interconnect kit is used for 10-GbE (high
speed) connectivity.

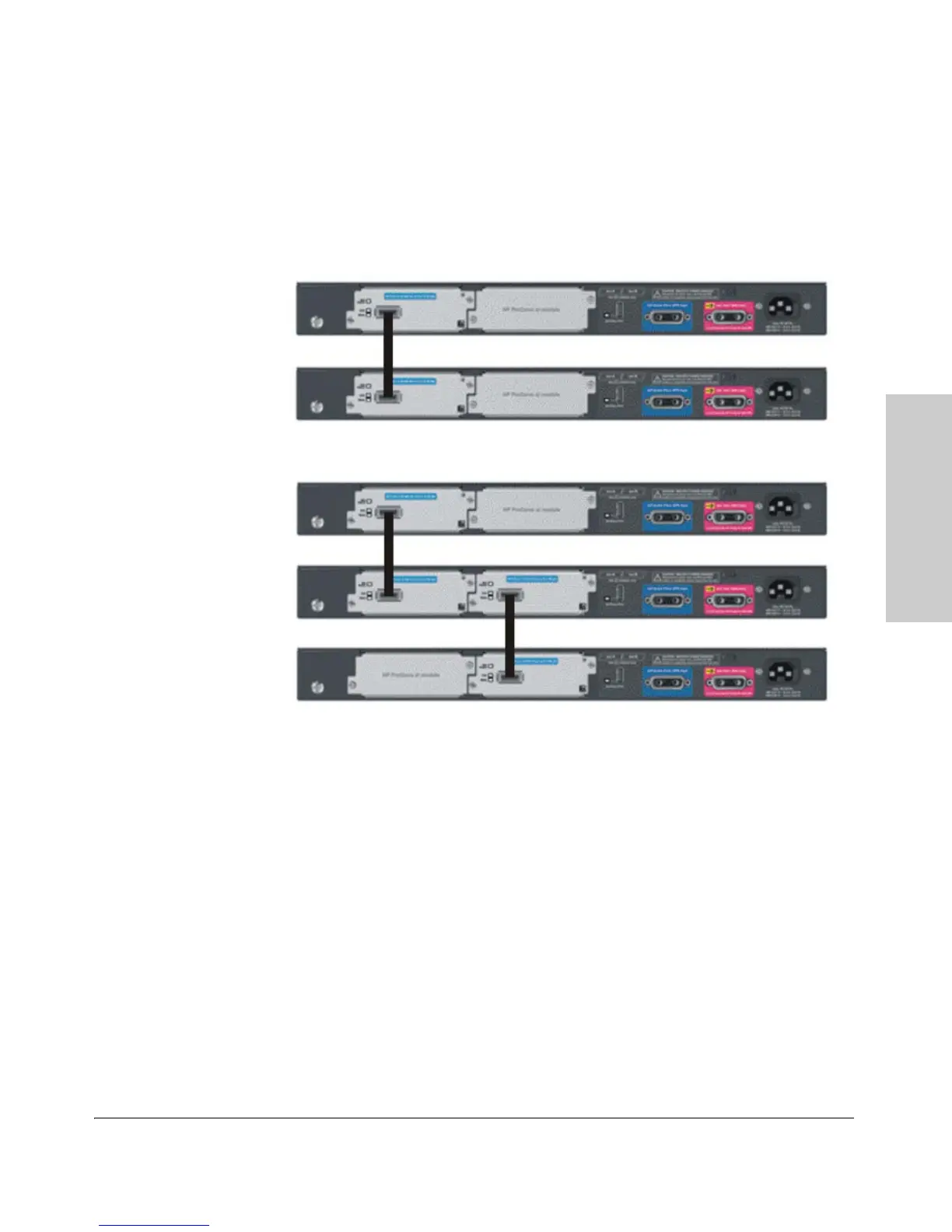

Figure 2-6. Example using one Interconnect kit to connect two switches
Figure 2-7. Example using two Interconnect kits to connect three switches
